dfilt.delay

Delay filter

Syntax

Hd = dfilt.delay
Hd = dfilt.delay(latency)


Description

Hd = dfilt.delay returns a discrete-time filter, Hd, of type delay, which adds a single delay to any signal filtered with Hd. The filtered signal has its values shifted by one sample.

Hd = dfilt.delay(latency) returns a discrete-time filter, Hd, of type delay, which adds the number of delay units specified in latency to any signal filtered with Hd. The filtered signal has its values shifted by the latency number of samples. The values that appear before the shifted signal are the filter states.

Examples

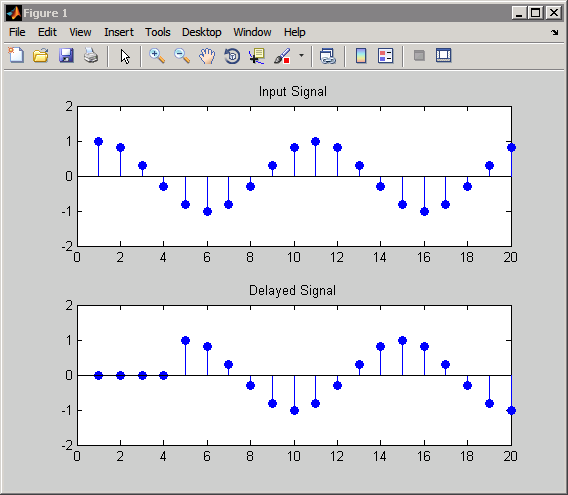

Create a delay filter with a latency of 4 and filter a simple signal to view the impact of applying a delay.

h = dfilt.delay(4);
Fs = 1000;
t = 0:1/Fs:1;
sig = cos(2*pi*100*t);
y = filter(h,sig);
subplot(211);
stem(sig,'markerfacecolor',[0 0 1]);
axis([0 20 -2 2]);
title('Input Signal');
subplot(212);
stem(y,'markerfacecolor',[0 0 1]);
axis([0 20 -2 2]);
title('Delayed Signal');

Version History

Introduced in R2011a
