Extract the Phase of Sine Wave
Extract the phase of a sine wave signal using the Phase Extractor block.
Generate the input sine wave using the Sine Wave block. Set the Sine Wave block parameters to the following:
Frequency set to 10 Hz
Sample mode set to Discrete
Output complexity set to Complex
Sample time set to 1/1000
Sample per frame set to 128
In the Phase Extractor block, do not select the Unwrap phase only within the frame parameter.

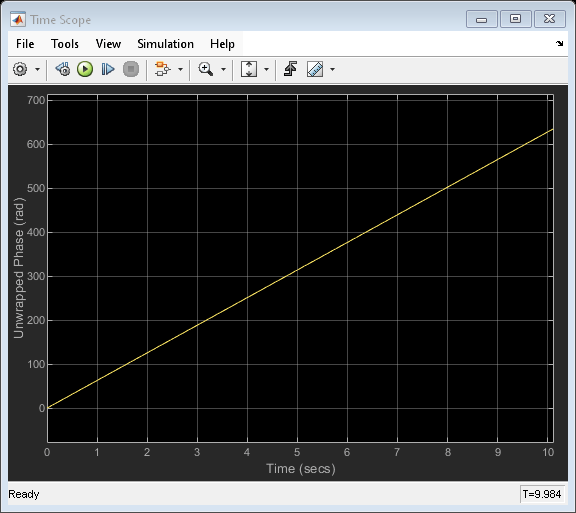

Open and run the model. The Time Scope block displays the extracted phase.
