# Calibrate the SABR Model Using Normal (Bachelier) Volatilities with Negative Strikes

This example shows how to use two different methods to calibrate the SABR stochastic volatility model from market implied Normal (Bachelier) volatilities with negative strikes. Both approaches use `normalvolbysabr`, which computes the implied Normal volatilities by using the SABR model. When the `Beta` parameter of the SABR model is set to zero, the model is a Normal SABR model, which allows computing the implied Normal volatilities for negative strikes.

### Load the Market Implied Normal (Bachelier) Volatility Data

Set up hypothetical market implied Normal volatilities for European swaptions over a range of strikes before calibration. The swaptions expire in one year from the `Settle` date and have two-year swaps as the underlying instrument. The rates are expressed in decimals. The market implied Normal volatilities are converted from basis points to decimals. (Changing the units affects the numerical value and interpretation of the `Alpha` parameter input to the function `normalvolbysabr`.)

```% Load the market implied Normal volatility data for swaptions expiring in one year. Settle = '20-Sep-2017'; ExerciseDate = '20-Sep-2018'; Basis = 1; ATMStrike = -0.174/100; MarketStrikes = ATMStrike + ((-0.5:0.25:1.5)')./100; MarketVolatilities = [20.58 17.64 16.93 18.01 20.46 22.90 26.11 28.89 31.91]'/10000; % At the time of Settle, define the underlying forward rate and the at-the-money volatility. CurrentForwardValue = MarketStrikes(3)```
```CurrentForwardValue = -0.0017 ```
`ATMVolatility = MarketVolatilities(3)`
```ATMVolatility = 0.0017 ```

### Method 1: Calibrate `Alpha`, `Rho`, and `Nu` Directly

This section demonstrates how to calibrate the `Alpha`, `Rho`, and `Nu` parameters directly. The value of the `Beta` parameter is set to zero in order to allow negative rates in the SABR model (Normal SABR). After fixing the value of $\beta$(`Beta`), the parameters $\alpha$ (`Alpha`), $\rho$ (`Rho`), and $\nu$ (`Nu`) are all fitted directly. The Optimization Toolbox™ function `lsqnonlin` generates the parameter values that minimize the squared error between the market volatilities and the volatilities computed by `normalvolbysabr`.

```% Define the predetermined Beta Beta1 = 0; % Setting Beta to zero allows negative rates for Normal volatilities % Calibrate Alpha, Rho, and Nu objFun = @(X) MarketVolatilities - ... normalvolbysabr(X(1), Beta1, X(2), X(3), Settle, ... ExerciseDate, CurrentForwardValue, MarketStrikes, 'Basis', Basis); % If necessary, tolerances and stopping criteria can be adjusted for lsqnonlin X = lsqnonlin(objFun, [ATMVolatility 0 0.5], [0 -1 0], [Inf 1 Inf]);```
```Local minimum found. Optimization completed because the size of the gradient is less than the value of the optimality tolerance. ```
```Alpha1 = X(1); Rho1 = X(2); Nu1 = X(3);```

### Method 2: Calibrate `Rho` and `Nu` by Implying `Alpha` from At-The-Money Volatility

This section demonstrates how to use an alternative calibration method where the value of $\beta$ is again predetermined to be zero in order to allow negative rates. However, after fixing the value of $\beta$ (`Beta`), the parameters $\rho$ (`Rho`), and $\nu$ (`Nu`) are fitted directly while $\alpha$ (`Alpha`) is implied from the market at-the-money volatility. Models calibrated using this method produce at-the-money volatilities that are equal to market quotes. This approach can be useful when at-the-money volatilities are quoted most frequently and are important to match. In order to imply $\alpha$ (`Alpha`) from market at-the-money Normal volatility (${\sigma }_{Normal,ATM}$), the following cubic polynomial is solved for $\alpha$ (`Alpha`), and the smallest positive real root is selected. This is similar to the approach used for implying $\alpha$ (`Alpha`) from market at-the-money Black volatility [2]. However, note that the following expression that is used for Normal volatilities is different from another expression that is used for Black volatilities.

`$\frac{\beta \left(\beta -2\right)T}{24{F}^{\left(2-2\beta \right)}}{\alpha }^{3}+\frac{\rho \beta \nu T}{4{F}^{\left(1-\beta \right)}}{\alpha }^{2}+\left(1+\frac{2-3{\rho }^{2}}{24}{\nu }^{2}T\right)\alpha -{\sigma }_{Normal,ATM}{F}^{-\beta }=0$`

```% Define the predetermined Beta Beta2 = 0; % Setting Beta to zero allows negative rates for Normal volatilities % Year fraction from Settle to option maturity T = yearfrac(Settle, ExerciseDate, Basis); % This function solves the SABR at-the-money volatility equation as a % polynomial of Alpha alpharootsNormal = @(Rho,Nu) roots([... Beta2.*(Beta2 - 2)*T/24/CurrentForwardValue^(2 - 2*Beta2) ... Rho*Beta2*Nu*T/4/CurrentForwardValue^(1 - Beta2) ... (1 + (2 - 3*Rho^2)*Nu^2*T/24) ... -ATMVolatility*CurrentForwardValue^(-Beta2)]); % This function converts at-the-money volatility into Alpha by picking the % smallest positive real root atmNormalVol2SabrAlpha = @(Rho,Nu) min(real(arrayfun(@(x) ... x*(x>0) + realmax*(x<0 || abs(imag(x))>1e-6), alpharootsNormal(Rho,Nu)))); % Calibrate Rho and Nu (while converting at-the-money volatility into Alpha % using atmVol2NormalSabrAlpha) objFun = @(X) MarketVolatilities - ... normalvolbysabr(atmNormalVol2SabrAlpha(X(1), X(2)), ... Beta2, X(1), X(2), Settle, ExerciseDate, CurrentForwardValue, ... MarketStrikes, 'Basis', Basis); % If necessary, tolerances and stopping criteria can be adjusted for lsqnonlin X = lsqnonlin(objFun, [0 0.5], [-1 0], [1 Inf]);```
```Local minimum found. Optimization completed because the size of the gradient is less than the value of the optimality tolerance. ```
```Rho2 = X(1); Nu2 = X(2); % Obtain final Alpha from at-the-money volatility using calibrated parameters Alpha2 = atmNormalVol2SabrAlpha(Rho2, Nu2); % Display calibrated parameters C = {Alpha1 Beta1 Rho1 Nu1;Alpha2 Beta2 Rho2 Nu2}; format; CalibratedPrameters = cell2table(C,... 'VariableNames',{'Alpha' 'Beta' 'Rho' 'Nu'},... 'RowNames',{'Method 1';'Method 2'})```
```CalibratedPrameters=2×4 table Alpha Beta Rho Nu _________ ____ _________ _______ Method 1 0.0016332 0 -0.034233 0.45877 Method 2 0.0016652 0 -0.0318 0.44812 ```

### Use the Calibrated Models

Use the calibrated models to compute new volatilities at any strike value, including negative strikes.

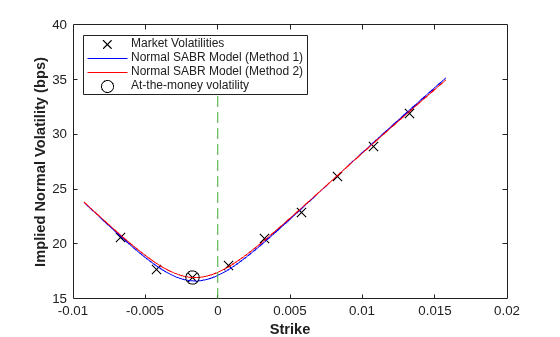

Compute volatilities for models calibrated using Method 1 and Method 2, then plot the results. The model calibrated using Method 2 reproduces the market at-the-money volatility (marked with a circle) exactly.

```PlottingStrikes = (min(MarketStrikes)-0.0025:0.0001:max(MarketStrikes)+0.0025)'; % Compute volatilities for model calibrated by Method 1 ComputedVols1 = normalvolbysabr(Alpha1, Beta1, Rho1, Nu1, Settle, ... ExerciseDate, CurrentForwardValue, PlottingStrikes, 'Basis', Basis); % Compute volatilities for model calibrated by Method 2 ComputedVols2 = normalvolbysabr(Alpha2, Beta2, Rho2, Nu2, Settle, ... ExerciseDate, CurrentForwardValue, PlottingStrikes, 'Basis', Basis); figure; plot(MarketStrikes,MarketVolatilities*10000,'xk',... PlottingStrikes,ComputedVols1*10000,'b', ... PlottingStrikes,ComputedVols2*10000,'r', ... CurrentForwardValue,ATMVolatility*10000,'ok',... 'MarkerSize',10); h = gca; line([0,0],[min(h.YLim),max(h.YLim)],'LineStyle','--'); xlabel('Strike', 'FontWeight', 'bold'); ylabel('Implied Normal Volatility (bps)', 'FontWeight', 'bold'); legend('Market Volatilities', 'Normal SABR Model (Method 1)', ... 'Normal SABR Model (Method 2)', 'At-the-money volatility', ... 'Location', 'northwest');```

### References

[1] Hagan, P. S., Kumar, D., Lesniewski, A. S. and Woodward, D. E. "Managing smile risk." Wilmott Magazine, 2002.

[2] West, G. "Calibration of the SABR Model in Illiquid Markets." Applied Mathematical Finance, 12(4), pp. 371–385, 2004.
