# perturbations

Perturbation defined on object

## Syntax

``perturbs = perturbations(obj)``
``perturbs = perturbations(obj,property)``
``perturbs = perturbations(obj,property,'None')``
``perturbs = perturbations(obj,property,'Selection',values,probabilities)``
``perturbs = perturbations(obj,property,'Normal',mean,deviation)``
``perturbs = perturbations(obj,property,'Uniform',minVal,maxVal)``
``perturbs = perturbations(obj,property,'Custom',perturbFcn)``

## Description

example

````perturbs = perturbations(obj)` returns the list of property perturbations, `perturbs`, defined on the object, `obj`. The returned `perturbs` lists all the perturbable properties. If any property is not perturbed, then its corresponding `Type` is returned as `"Null"` and its corresponding `Value` is returned as `{Null,Null}`. ```
````perturbs = perturbations(obj,property)` returns the current perturbation applied to the specified `property`.```
````perturbs = perturbations(obj,property,'None')` defines a `property` that must not be perturbed.```

example

````perturbs = perturbations(obj,property,'Selection',values,probabilities)` defines the `property` perturbation offset drawn from a set of `values` that have corresponding `probabilities`.```

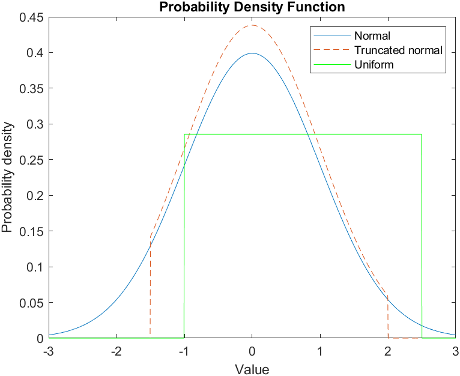

````perturbs = perturbations(obj,property,'Normal',mean,deviation)` defines the `property` perturbation offset drawn from a normal distribution with specified `mean` and standard `deviation`.```

example

````perturbs = perturbations(obj,property,'Uniform',minVal,maxVal)` defines the `property` perturbation offset drawn from a uniform distribution on an interval [`minVal`, `maxValue`].```
````perturbs = perturbations(obj,property,'Custom',perturbFcn)` enables you to define a custom function, `perturbFcn`, that draws the perturbation offset value.```

## Examples

collapse all

Create a `waypointTrajectory` object.

`traj = waypointTrajectory;`

Show the default perturbation properties using the `perturbations` method.

`perturbs = perturbations(traj)`
```perturbs=2×3 table Property Type Value _______________ ______ __________________ "Waypoints" "None" {[NaN]} {[NaN]} "TimeOfArrival" "None" {[NaN]} {[NaN]} ```

Create an `insSensor` object.

`sensor = insSensor`
```sensor = insSensor with properties: MountingLocation: [0 0 0] RollAccuracy: 0.2 deg PitchAccuracy: 0.2 deg YawAccuracy: 1 deg PositionAccuracy: [1 1 1] m VelocityAccuracy: 0.05 m/s AccelerationAccuracy: 0 m/s² AngularVelocityAccuracy: 0 deg/s TimeInput: 0 RandomStream: 'Global stream' ```

Define the perturbation on the `RollAccuracy `property as three values with an equal possibility each.

`values = {0.1 0.2 0.3}`
```values=1×3 cell array {[0.1000]} {[0.2000]} {[0.3000]} ```
`probabilities = [1/3 1/3 1/3]`
```probabilities = 1×3 0.3333 0.3333 0.3333 ```
`perturbations(sensor,'RollAccuracy','Selection',values,probabilities)`
```ans=7×3 table Property Type Value _________________________ ___________ ______________________________________ "RollAccuracy" "Selection" {1x3 cell} {[0.3333 0.3333 0.3333]} "PitchAccuracy" "None" {[ NaN]} {[ NaN]} "YawAccuracy" "None" {[ NaN]} {[ NaN]} "PositionAccuracy" "None" {[ NaN]} {[ NaN]} "VelocityAccuracy" "None" {[ NaN]} {[ NaN]} "AccelerationAccuracy" "None" {[ NaN]} {[ NaN]} "AngularVelocityAccuracy" "None" {[ NaN]} {[ NaN]} ```

Perturb the `sensor` object using the perturb function.

```rng(2020) perturb(sensor); sensor```
```sensor = insSensor with properties: MountingLocation: [0 0 0] RollAccuracy: 0.5 deg PitchAccuracy: 0.2 deg YawAccuracy: 1 deg PositionAccuracy: [1 1 1] m VelocityAccuracy: 0.05 m/s AccelerationAccuracy: 0 m/s² AngularVelocityAccuracy: 0 deg/s TimeInput: 0 RandomStream: 'Global stream' ```

The `RollAccuracy` is perturbed to `0.5` deg.

Define a waypoint trajectory. By default, this trajectory contains two waypoints.

`traj = waypointTrajectory`
```traj = waypointTrajectory with properties: SampleRate: 100 SamplesPerFrame: 1 Waypoints: [2x3 double] TimeOfArrival: [2x1 double] Velocities: [2x3 double] Course: [2x1 double] GroundSpeed: [2x1 double] ClimbRate: [2x1 double] Orientation: [2x1 quaternion] AutoPitch: 0 AutoBank: 0 ReferenceFrame: 'NED' ```

Define perturbations on the `Waypoints` property and the `TimeOfArrival` property.

```rng(2020); perturbs1 = perturbations(traj,'Waypoints','Normal',1,1)```
```perturbs1=2×3 table Property Type Value _______________ ________ __________________ "Waypoints" "Normal" {[ 1]} {[ 1]} "TimeOfArrival" "None" {[NaN]} {[NaN]} ```
`perturbs2 = perturbations(traj,'TimeOfArrival','Selection',{[0;1],[0;2]})`
```perturbs2=2×3 table Property Type Value _______________ ___________ _______________________________ "Waypoints" "Normal" {[ 1]} {[ 1]} "TimeOfArrival" "Selection" {1x2 cell} {[0.5000 0.5000]} ```

Perturb the trajectory.

`offsets = perturb(traj)`
```offsets=2×1 struct array with fields: Property Offset PerturbedValue ```

The `Waypoints` property and the `TimeOfArrival` property have changed.

`traj.Waypoints`
```ans = 2×3 1.8674 1.0203 0.7032 2.3154 -0.3207 0.0999 ```
`traj.TimeOfArrival`
```ans = 2×1 0 2 ```

## Input Arguments

collapse all

Object to be perturbed, specified as an object. The objects that you can perturb include:

Perturbable property, specified as a property name. Use `perturbations` to obtain a full list of perturbable properties for the specified `obj`.

Perturbation offset values, specified as an n-element cell array of property values. The function randomly draws the perturbation value for the property from the cell array based on the values' corresponding probabilities specified in the `probabilities` input.

Drawing probabilities for each perturbation value, specified as an n-element array of nonnegative scalars, where n is the number of perturbation values provided in the `values` input. The sum of all elements must be equal to one.

For example, you can specify a series of perturbation value-probability pair as {`x1`,`x2`,…,`xn`} and {`p1`,`p2`,…,`pn`}, where the probability of drawing `xi` is `pi` (`i` = 1, 2, …,n).

Mean of normal distribution, specified as a scalar, vector, or matrix. The dimension of `mean` must be compatible with the corresponding property that you perturb.

Standard deviation of normal distribution, specified as a nonnegative scalar, vector of nonnegative scalars, or matrix of nonnegative scalars. The dimension of `deviation` must be compatible with the corresponding property that you perturb.

Minimum value of the uniform distribution interval, specified as a scalar, vector, or matrix. The dimension of `minVal` must be compatible with the corresponding property that you perturb.

Maximum value of the uniform distribution interval, specified as a scalar, vector, or matrix. The dimension of `maxVal` must be compatible with the corresponding property that you perturb.

Perturbation function, specified as a function handle. The function must have this syntax:

`offset = myfun(propVal)`
where `propVal` is the value of the `property` and `offset` is the perturbation offset for the property.

## Output Arguments

collapse all

Perturbations defined on the object, returned as a table of perturbation properties. The table has three columns:

• `Property` — Property names.

• `Type` — Type of perturbations, returned as `"None"`, `"Selection"`, `"Normal"`, `"Uniform"`, or `"Custom"`.

• `Value` — Perturbation values, returned as a cell array.

## See Also

Introduced in R2020b
