# Build Fuzzy Systems at the Command Line

You can construct a fuzzy inference system (FIS) at the MATLAB® command line. This method is an alternative to interactively designing your FIS using Fuzzy Logic Designer. For an example that interactively builds a FIS, see Build Fuzzy Systems Using Fuzzy Logic Designer.

To demonstrate the command-line functionality for creating and viewing fuzzy inference systems, this example uses a solution to the tipping problem defined in Fuzzy vs. Nonfuzzy Logic. For this problem, tipping behavior is defined using the following three rules.

1. If the service is poor or the food is rancid, then the tip is cheap.

2. If the service is good, then the tip is average.

3. If the service is excellent or the food is delicious, then the tip is generous.

While this example creates a type-1 Mamdani FIS, the general methods used apply to creating type-2 and Sugeno systems as well. For more information on the different types of fuzzy systems, see Mamdani and Sugeno Fuzzy Inference Systems and Type-2 Fuzzy Inference Systems.

### FIS Objects

You represent fuzzy inference systems using `mamfis`, `sugfis`, `mamfistype2`, and `sugfistype2` objects. These objects contain all the fuzzy inference system information, including the variable names, membership function definitions, and fuzzy inference methods. Each FIS is itself a hierarchy of objects. The following objects are used within a fuzzy system.

`fis = readfis("tipper.fis");`

View all the information for a FIS by directly listing its properties.

`fis`
```fis = mamfis with properties: Name: "tipper" AndMethod: "min" OrMethod: "max" ImplicationMethod: "min" AggregationMethod: "max" DefuzzificationMethod: "centroid" DisableStructuralChecks: 0 Inputs: [1x2 fisvar] Outputs: [1x1 fisvar] Rules: [1x3 fisrule] See 'getTunableSettings' method for parameter optimization. ```

You can access the properties of the objects within a FIS object using dot notation. For example, view the `fisvar` object for first input variable.

`fis.Inputs(1)`
```ans = fisvar with properties: Name: "service" Range: [0 10] MembershipFunctions: [1x3 fismf] ```

Also, view the membership functions for this variable.

`fis.Inputs(1).MembershipFunctions`
```ans = 1x3 fismf array with properties: Type Parameters Name Details: Name Type Parameters ___________ _________ __________ 1 "poor" "gaussmf" 1.5 0 2 "good" "gaussmf" 1.5 5 3 "excellent" "gaussmf" 1.5 10 ```

### System Display Functions

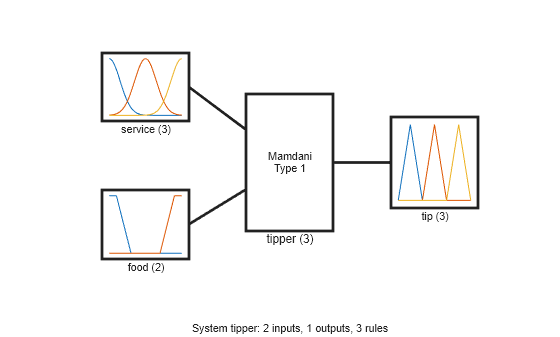

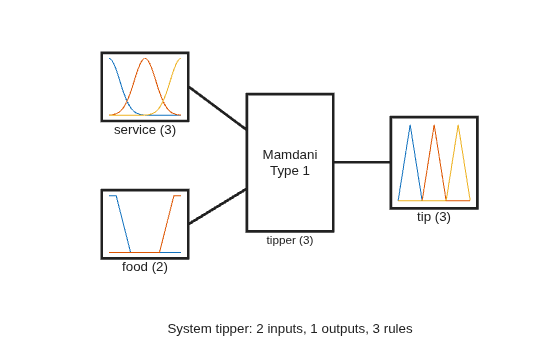

To get a high-level view of your fuzzy system from the command line, use the `plotfis`, `plotmf`, and `gensurf` functions. `plotfis` displays the whole system as a block diagram.

`plotfis(fis)`

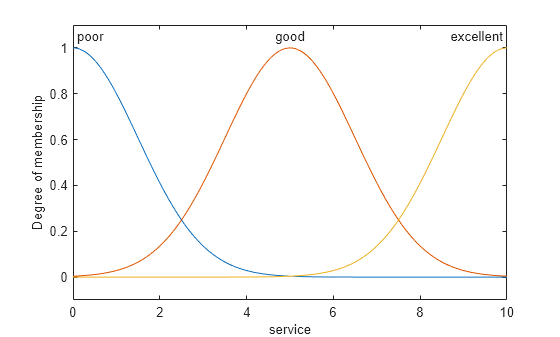

The `plotmf` function plots all the membership functions associated with a given variable. For example, view the membership functions for the first input variable.

`plotmf(fis,"input",1)`

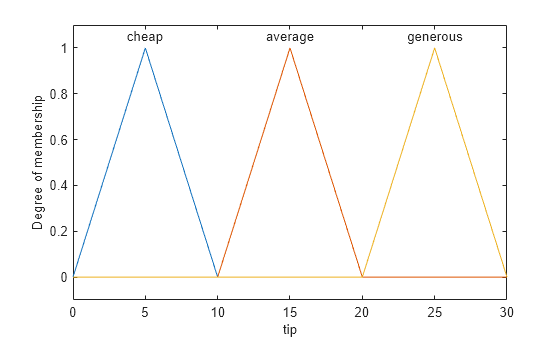

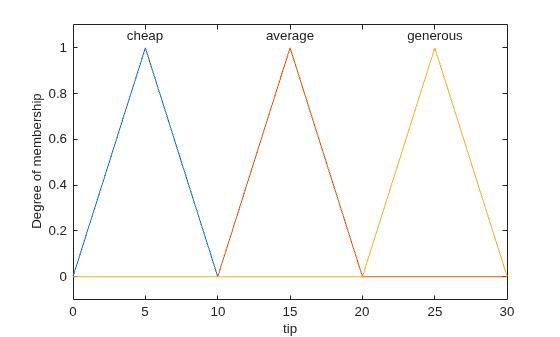

Similarly, view the membership functions for the first output variable.

`plotmf(fis,"output",1)`

`plotmf` does not support viewing the output membership functions for Sugeno systems.

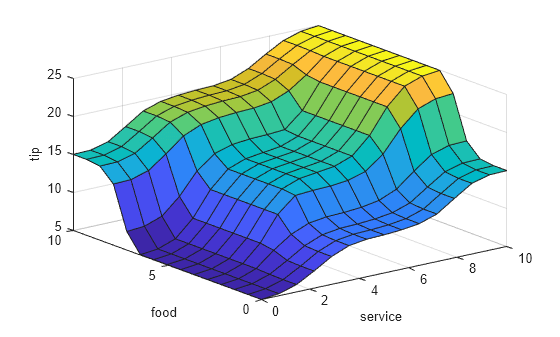

The `gensurf` function plots the output of the FIS for any one or two input variables.

`gensurf(fis)`

View the rules of the fuzzy system.

`fis.Rules`
```ans = 1x3 fisrule array with properties: Description Antecedent Consequent Weight Connection Details: Description __________________________________________________________ 1 "service==poor | food==rancid => tip=cheap (1)" 2 "service==good => tip=average (1)" 3 "service==excellent | food==delicious => tip=generous (1)" ```

### Build Fuzzy Inference System

As an alternative to using the Fuzzy Logic Designer app, you can construct a FIS entirely from the command line.

First, create a Mamdani FIS, specifying its name.

`fis = mamfis("Name","tipper");`

Add input variables for the service and food quality.

```fis = addInput(fis,[0 10],"Name","service"); fis = addInput(fis,[0 10],"Name","food");```

Add membership functions for each of the service quality levels using Gaussian membership functions. For more information on Gaussian membership functions, see `gaussmf`.

```fis = addMF(fis,"service","gaussmf",[1.5 0],"Name","poor"); fis = addMF(fis,"service","gaussmf",[1.5 5],"Name","good"); fis = addMF(fis,"service","gaussmf",[1.5 10],"Name","excellent");```

Add membership functions for each of the food quality levels using trapezoidal membership functions. For information on trapezoidal membership functions, see `trapmf`.

```fis = addMF(fis,"food","trapmf",[-2 0 1 3],"Name","rancid"); fis = addMF(fis,"food","trapmf",[7 9 10 12],"Name","delicious");```

Add the output variable for the tip, and add three triangular membership functions for the tip levels. For more information on triangular membership functions, see `trimf`.

```fis = addOutput(fis,[0 30],"Name","tip"); fis = addMF(fis,"tip","trimf",[0 5 10],"Name","cheap"); fis = addMF(fis,"tip","trimf",[10 15 20],"Name","average"); fis = addMF(fis,"tip","trimf",[20 25 30],"Name","generous");```

Specify the following three rules for the FIS as a numeric array.

1. If (service is poor) or (food is rancid), then (tip is cheap).

2. If (service is good), then (tip is average).

3. If (service is excellent) or (food is delicious), then (tip is generous).

Each row of the array contains one rule in the following format.

• Column 1 - Index of membership function for first input

• Column 2 - Index of membership function for second input

• Column 3 - Index of membership function for output

• Column 4 - Rule weight (from `0` to `1`)

• Column 5 - Fuzzy operator (`1` for AND, `2` for OR)

For the membership function indices, indicate a NOT condition using a negative value. For more information on fuzzy rule specification, see `addRule`.

```ruleList = [1 1 1 1 2; 2 0 2 1 1; 3 2 3 1 2];```

Add the rules to the FIS.

`fis = addRule(fis,ruleList);`

Alternatively, you can create the fuzzy inference system using a combination of dot notation and `fisvar`, `fismf`, and `fisrule` objects. This method is not a good practice for most applications. However, you can use this approach when your application requires greater flexibility in constructing and modifying your FIS.

Create the fuzzy inference system.

`fis = mamfis("Name","tipper");`

Add and configure the first input variable. In this case, create a default `fisvar` object and specify its properties using dot notation.

```fis.Inputs(1) = fisvar; fis.Inputs(1).Name = "service"; fis.Inputs(1).Range = [0 10];```

Define the membership functions for the first input variable. For each MF, create a `fismf` object, and set the properties using dot notation.

```fis.Inputs(1).MembershipFunctions(1) = fismf; fis.Inputs(1).MembershipFunctions(1).Name = "poor"; fis.Inputs(1).MembershipFunctions(1).Type = "gaussmf"; fis.Inputs(1).MembershipFunctions(1).Parameters = [1.5 0]; fis.Inputs(1).MembershipFunctions(2) = fismf; fis.Inputs(1).MembershipFunctions(2).Name = "good"; fis.Inputs(1).MembershipFunctions(2).Type = "gaussmf"; fis.Inputs(1).MembershipFunctions(2).Parameters = [1.5 5]; fis.Inputs(1).MembershipFunctions(3) = fismf; fis.Inputs(1).MembershipFunctions(3).Name = "excellent"; fis.Inputs(1).MembershipFunctions(3).Type = "gaussmf"; fis.Inputs(1).MembershipFunctions(3).Parameters = [1.5 10];```

Add and configure the second input variable. For this variable, specify the name and range when you create the `fisvar` object.

`fis.Inputs(2) = fisvar([0 10],"Name","food");`

Specify the membership functions for the second input. For each MF, specify the name, type, and parameters when you create the `fismf` object.

```fis.Inputs(2).MembershipFunctions(1) = fismf("trapmf",[-2 0 1 3],... "Name","rancid"); fis.Inputs(2).MembershipFunctions(2) = fismf("trapmf",[7 9 10 12],... "Name","delicious");```

Similarly, add and configure the output variable and its membership functions.

`fis.Outputs(1) = fisvar([0 30],"Name","tip");`

In this case, specify the output membership functions using a vector of `fismf` objects.

```mf1 = fismf("trimf",[0 5 10],"Name","cheap"); mf2 = fismf("trimf",[10 15 20],"Name","average"); mf3 = fismf("trimf",[20 25 30],"Name","generous"); fis.Outputs(1).MembershipFunctions = [mf1 mf2 mf3];```

Create the rules for the fuzzy system. For each rule create a `fisrule` object. Then, specify the rules using a vector of these objects. When creating a `fisrule` object using numeric values, you must specify the number of inputs variables.

```rule1 = fisrule([1 1 1 1 2],2); rule2 = fisrule([2 0 2 1 1],2); rule3 = fisrule([3 2 3 1 2],2); rules = [rule1 rule2 rule3];```

Before adding the rules to your fuzzy system, you must update them using the data in the FIS object. Update the rules using the `update` function, and add them the fuzzy system.

```rules = update(rules,fis); fis.Rules = rules;```

When constructing your fuzzy system, you can also specify custom membership functions and inference functions. For more information, see Build Fuzzy Systems Using Custom Functions.

### Evaluate Fuzzy Inference System

To evaluate the output of a fuzzy system for a given input combination, use the `evalfis` function. For example, evaluate `fis` using input variable values of 1 and 2.

`evalfis(fis,[1 2])`
```ans = 5.5586 ```

You can also evaluate multiple input combinations using an array where each row represents one input combination.

```inputs = [3 5; 2 7; 3 1]; evalfis(fis,inputs)```
```ans = 3×1 12.2184 7.7885 8.9547 ```
