## Set Mesh Options

### Mesh Expansion and Contraction

The `MeshExpansionFactor`

and `MeshContractionFactor`

options control how much the mesh size is expanded or contracted at each iteration.
With the default `MeshExpansionFactor`

value of
`2`

, the pattern search multiplies the mesh size by
`2`

after each successful poll. With the default
`MeshContractionFactor`

value of `0.5`

, the
pattern search multiplies the mesh size by `0.5`

after each
unsuccessful poll.

You can view the expansion and contraction of the mesh size during the pattern search by
setting `@psplotmeshsize`

as the `PlotFcn`

option.
To also display the values of the mesh size and objective function at the command
line, set the `Display`

option to `'iter'`

.

For example, set up the problem described in Constrained Minimization Using patternsearch and Optimize Live Editor Task as follows:

Enter the following at the command line:

x0 = [2 1 0 9 1 0]'; Aineq = [-8 7 3 -4 9 0]; bineq = 7; Aeq = [7 1 8 3 3 3; 5 0 -5 1 -5 8; -2 -6 7 1 1 9; 1 -1 2 -2 3 -3]; beq = [84 62 65 1]; H = [36 17 19 12 8 15; 17 33 18 11 7 14; 19 18 43 13 8 16; 12 11 13 18 6 11; 8 7 8 6 9 8; 15 14 16 11 8 29]; f = [ 20 15 21 18 29 24 ]'; F = @(x)0.5*x'*H*x + f'*x;

Create options to use the

`GSSPositiveBasis2N`

poll method, give iterative display, and plot the mesh size.options = optimoptions('patternsearch',... 'PollMethod','GSSPositiveBasis2N',... 'PlotFcn',@psplotmeshsize,... 'Display','iter');

Run the optimization.

`[x,fval,exitflag,output] = patternsearch(F,x0,... Aineq,bineq,Aeq,beq,[],[],[],options);`

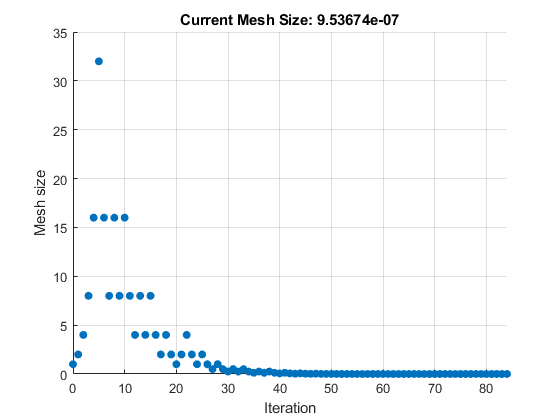

To see the changes in mesh size more clearly, change the *y*-axis
to logarithmic scaling as follows:

Select

**Axes Properties**from the**Edit**menu in the plot window.In the Properties Editor, select the

**Rulers**tab.Set

**YScale**to**Log**.

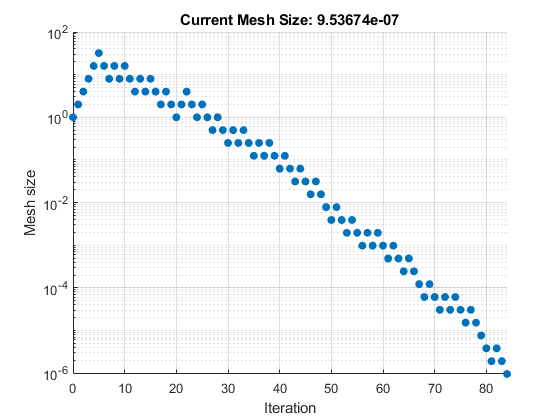

Updating these settings in the MATLAB^{®} Property Editor shows
the plot in the following figure.

The first 5 iterations result in successful polls, so the mesh sizes increase steadily during this time. You can see that the first unsuccessful poll occurs at iteration 6 by looking at the command-line display.

Iter f-count f(x) MeshSize Method 0 1 2273.76 1 1 2 2251.69 2 Successful Poll 2 3 2209.86 4 Successful Poll 3 4 2135.43 8 Successful Poll 4 5 2023.48 16 Successful Poll 5 6 1947.23 32 Successful Poll 6 15 1947.23 16 Refine Mesh

Note that at iteration 5, which is successful, the mesh size
doubles for the next iteration. But at iteration 6, which is unsuccessful,
the mesh size is multiplied `0.5`

.

To see how `MeshExpansionFactor`

and `MeshContractionFactor`

affect the pattern search, set `MeshExpansionFactor`

to
`3.0`

and set `MeshContractionFactor`

to
`2/3`

.

options = optimoptions(options,'MeshExpansionFactor',3.0,... 'MeshContractionFactor',2/3); [x,fval,exitflag,output] = patternsearch(F,x0,... Aineq,bineq,Aeq,beq,[],[],[],options);

The final objective function value is approximately the same as with the previous settings, but the solver takes longer to reach that point.

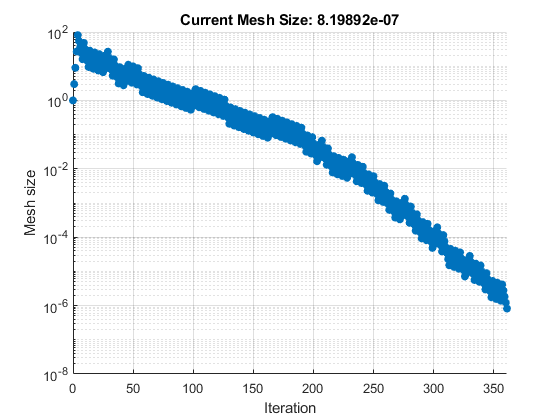

When you change the scaling of the *y*-axis
to logarithmic, the mesh size plot appears as shown in the following
figure.

Note that the mesh size increases faster with `MeshExpansionFactor`

set to
`3.0`

, as compared with the default value of
`2.0`

, and decreases more slowly with
`MeshContractionFactor`

set to `2/3`

, as
compared with the default value of `0.5`

.

### Mesh Accelerator

The mesh accelerator can make a pattern search converge faster to an optimal point
by reducing the number of iterations required to reach the mesh tolerance. When the
mesh size is below a certain value, the pattern search contracts the mesh size by a
factor smaller than the `MeshContractionFactor`

factor. Mesh
accelerator applies only to the GPS and GSS algorithms.

**Note**

For best results, use the mesh accelerator for problems in which the objective function is not too steep near the optimal point, or you might lose some accuracy. For differentiable problems, this means that the absolute value of the derivative is not too large near the solution.

To use the mesh accelerator, set the `AccelerateMesh`

option to
`true`

.

For example, set up the problem described in Constrained Minimization Using patternsearch and Optimize Live Editor Task as follows:

Enter the following at the command line:

x0 = [2 1 0 9 1 0]; Aineq = [-8 7 3 -4 9 0]; bineq = 7; Aeq = [7 1 8 3 3 3; 5 0 -5 1 -5 8; -2 -6 7 1 1 9; 1 -1 2 -2 3 -3]; beq = [84 62 65 1]; H = [36 17 19 12 8 15; 17 33 18 11 7 14; 19 18 43 13 8 16; 12 11 13 18 6 11; 8 7 8 6 9 8; 15 14 16 11 8 29]; f = [ 20 15 21 18 29 24 ]'; F = @(x)0.5*x'*H*x + f'*x;

Create options, including the mesh accelerator.

options = optimoptions('patternsearch',... 'PollMethod','GSSPositiveBasis2N',... 'Display','iter','AccelerateMesh',true);

Run the optimization.

[x,fval,exitflag,output] = patternsearch(F,x0,... Aineq,bineq,Aeq,beq,[],[],[],options);

`patternsearch`

completes in 78 iterations, compared to 84
iterations when the mesh accelerator is not on. You can see the effect of the mesh
accelerator in the iterative display. Run the example with and without mesh
acceleration. The mesh sizes are the same until iteration 70, but differ at
iteration 71. The MATLAB Command Window displays the following lines for iterations 70 and 71
without the accelerator.

Iter f-count f(x) MeshSize Method 70 618 1919.54 6.104e-05 Refine Mesh 71 630 1919.54 3.052e-05 Refine Mesh

Note that the mesh size is multiplied by `0.5`

, the default value
of `MeshContractionFactor`

.

For comparison, the Command Window displays the following lines for the same iteration numbers with the accelerator.

Iter f-count f(x) MeshSize Method 70 618 1919.54 6.104e-05 Refine Mesh 71 630 1919.54 1.526e-05 Refine Mesh

In this case the mesh size is multiplied by `0.25`

.
