Surrogate optimization for global minimization of time-consuming objective functions

The `surrogateopt`

function is a global solver for
time-consuming objective functions.

The solver searches for the global minimum of a real-valued objective function in
multiple dimensions, subject to bound constraints and optional integer constraints.
`surrogateopt`

is best suited to objective functions that take a
long time to evaluate. The objective function can be nonsmooth. The solver requires
finite bounds on all variables. The solver can optionally maintain a checkpoint file to
enable recovery from crashes or partial execution, or optimization continuation after
meeting a stopping condition.

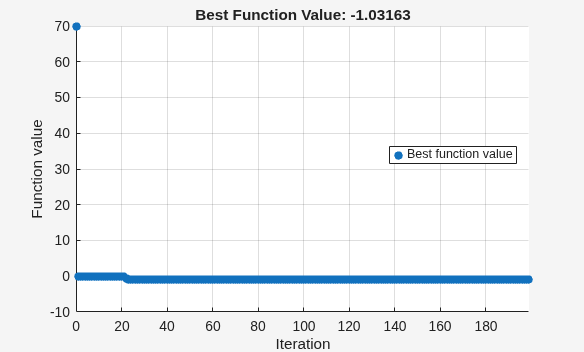

searches for a global minimum of `x`

= surrogateopt(`fun`

,`lb`

,`ub`

)`fun(x)`

in the region
`lb <= x <= ub`

.

Passing Extra Parameters (Optimization Toolbox) explains how to pass extra parameters to the objective function, if necessary.

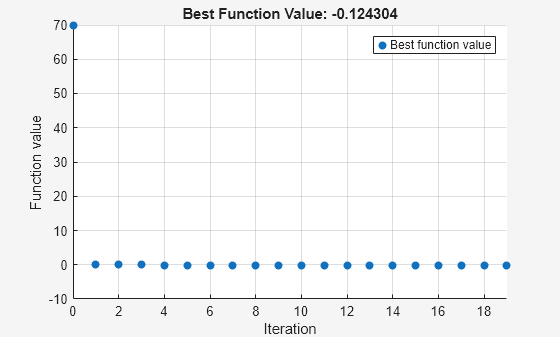

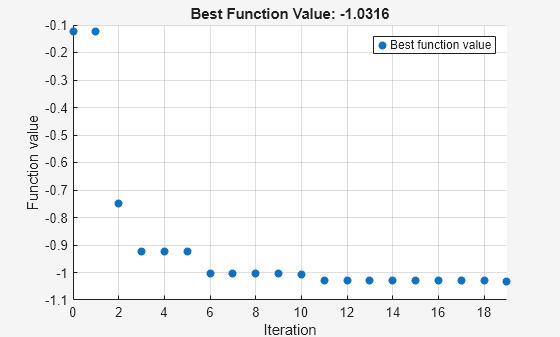

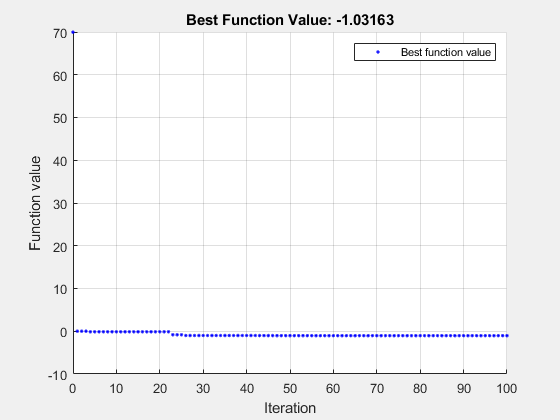

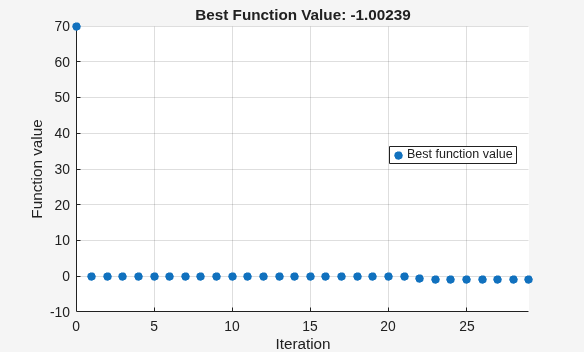

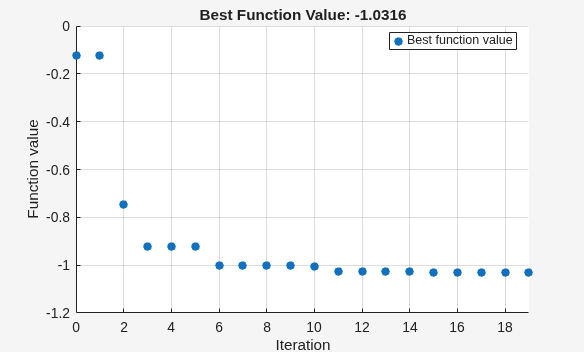

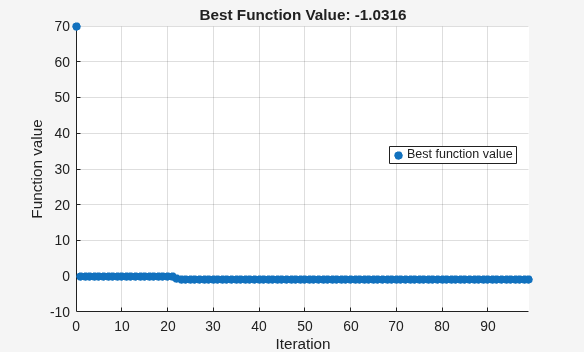

continues running the optimization from the state in a saved checkpoint file.
See Work with Checkpoint Files.`x`

= surrogateopt(`checkpointFile`

)

continues running the optimization from the state in a saved checkpoint file,
and replaces options in `x`

= surrogateopt(`checkpointFile`

,`opts`

)`checkpointFile`

with those in
`opts`

. See Checkpoint File.

`surrogateopt`

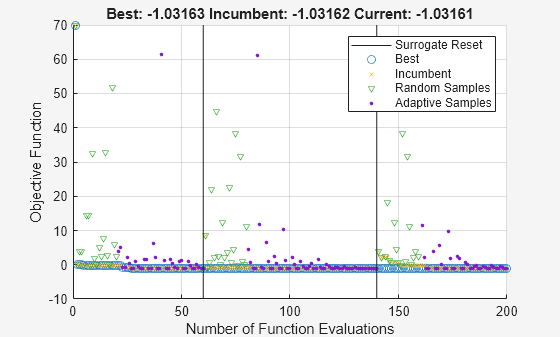

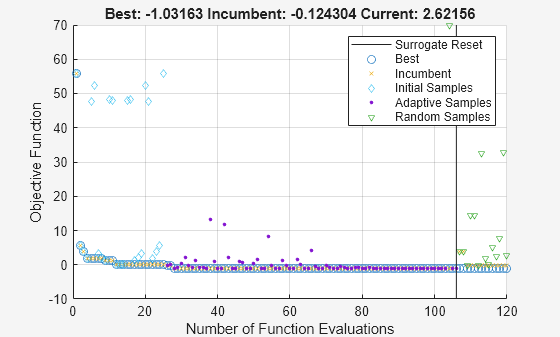

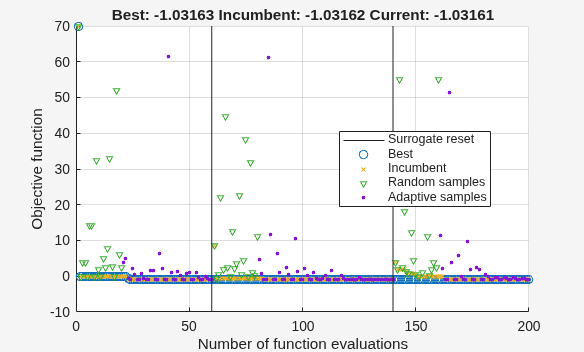

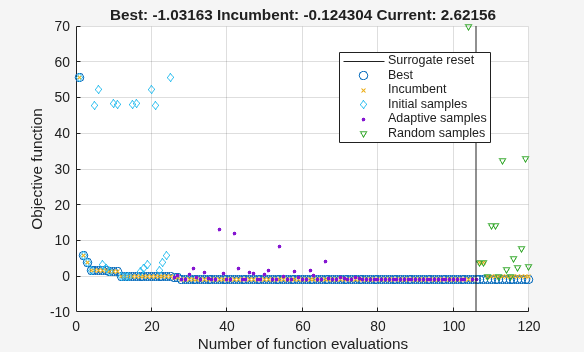

repeatedly performs the following steps:

Create a set of trial points by sampling

`MinSurrogatePoints`

random points within the bounds, and evaluate the objective function at the trial points.Create a surrogate model of the objective function by interpolating a radial basis function through all of the random trial points.

Create a merit function that gives some weight to the surrogate and some weight to the distance from trial points. Locate a small value of the merit function by randomly sampling the merit function in a region around the incumbent point (best point found since the last surrogate reset). Use this point, called the adaptive point, as a new trial point.

Evaluate the objective at the adaptive point, and update the surrogate based on this point and its value. Count a "success" if the objective function value is sufficiently lower than the previous best (lowest) value observed, and count a "failure" otherwise.

Update the dispersion of the sample distribution upwards if there are three successes before

`max(nvar,5)`

failures, where`nvar`

is the number of dimensions. Update the dispersion downwards if there are`max(nvar,5)`

failures before three successes.Continue from step 3 until all trial points are within

`MinSampleDistance`

of the evaluated points. At that time, reset the surrogate by discarding all adaptive points from the surrogate, reset the scale, and go back to step 1 to create`MinSurrogatePoints`

new random trial points for evaluation.

For details, see Surrogate Optimization Algorithm.
