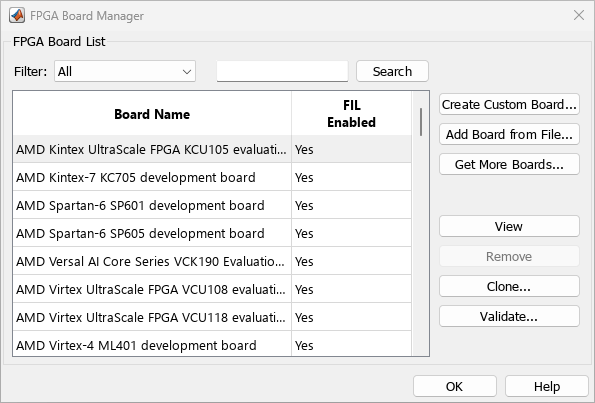

FPGA Board Manager
The FPGA Board Manager is the portal to managing custom FPGA boards. You can create a board definition file or edit an existing one. You can even import a custom board from an existing board definition file.
You start the FPGA Board Manager by one of the following methods:
fpgaBoardManagerin the MATLAB® command window
From the FIL wizard by clicking Launch Board Manager on the first page
From the HDL Workflow Advisor (when using HDL Coder™) at Step 1.1
Choose one of the following views:
Only those boards that were preinstalled with HDL Verifier™ or HDL Coder
Only custom boards
Find a specific board in the list or those boards that fully or partially match your search string.
FIL Enabled/Turnkey Enabled
These columns indicate whether the specified board is supported for FIL or Turnkey operations.
Create Custom Board
Start New FPGA Board wizard. See New FPGA Board Wizard. You can find the process for creating a board definition file in Create Custom FPGA Board Definition.
Add Board from File
Import a board definition file (.xml).
Get More Boards
Download FPGA board support packages for use with FIL
Click Get more boards.
Follow the prompts in the Support Package Installer to download an FPGA board support package.
When the download is complete, you can see the new boards in the board list in the FPGA Board Manager.
Offline Support Package Installation
You can install an FPGA board support package without an internet connection. See Install Support Package Offline (HDL Verifier).
View board configurations and modify the information. You can view a read-only file but not edit it. See FPGA Board Editor.
Remove custom board from the list. This action does not delete the board definition XML file.
Makes a copy of an existing custom board for further modification.
Runs the validation tests for FIL See Run Optional Validation Tests.
- Create Custom FPGA Board Definition (HDL Verifier)
- Create Xilinx KC705 Evaluation Board Definition File (HDL Verifier)
