# Idmodel

Simulate identified linear model in Simulink software

**Library:**System Identification Toolbox / Models

## Description

The Idmodel block simulates the output of an identified linear model
using time-domain input data. The model is a state-space (`idss`

),
linear grey-box (`idgrey`

), polynomial (`idpoly`

),
transfer function (`idtf`

), or process (`idproc`

)
model that you previously estimated or created. For the simulation of state-space and
linear grey-box models, you can specify the initial state values. For other linear
models, initial conditions are set to zero. You can also add noise to the simulated
output.

## Ports

### Input

`Port_1(In1)`

— Simulation input data

scalar | vector

Simulation input data, specified as a scalar for a single-input model.
The data must be time-domain data. For multi-input models, specify the
input as an *Nu*-element vector, where
*Nu* is the number of inputs. For example, you can
use a Vector Concatenate (Simulink) block
to concatenate scalar signals into a vector signal.

**Note**

Do not use a Bus Creator (Simulink) or Mux (Simulink) block to produce the vector signal.

**Data Types: **`double`

### Output

`Port_1(Out1)`

— Simulated output

scalar | vector

Simulated output from linear model, returned as a scalar for a
single-output model and an *Ny*-element vector for a
model with *Ny* outputs.

**Data Types: **`double`

## Parameters

`Identified model`

— Linear model to be simulated

`idss(-1,1,1,0,'Ts',1)`

(default) | `idss`

object | `idgrey`

object | `idpoly`

object | `idtf`

object | `idproc`

object

`Initial states (state space only: idss,idgrey)`

— Initial state values

`0`

(default) | vector

Initial state values of state-space (`idss`

) and linear
grey-box (`idgrey`

) models, specified as an
*Nx*-element vector, where *Nx* is the
number of states of the model. To estimate the initial states that provide a
best fit between measured data and the simulated response of the model for
the same input, use the `findstates`

command.

For example, to compute initial states such that the response of the model
`M`

matches the simulated output data in the data set
`z`

, specify `X0`

, such that:

X0 = findstates(M,z)

For linear models other than `idss`

or
`idgrey`

, the block assumes that initial conditions
are zero.

If
you want to reproduce the simulation results that you get in the Model
Output plot window in the System Identification app, or from the `compare`

command:

If the identified model

`m`

is not a state-space or grey-box model, convert the model into state-space form (`idss`

model), and specify the state-space model`mss`

in the block.mss = idss(m);

Compute the initial state values that produce the best fit between the model output and the measured output signal using

`findstates`

. Specify the prediction horizon as`Inf`

, that is, minimize the simulation error.X0 = findstates(mss,z,Inf);

Use the model

`mss`

and initial states`X0`

in the Idmodel block to perform the simulation. Specify the same input signal`z`

for simulation that you used as validation data in the app or`compare`

.

`Add noise`

— Add noise to simulated output

`on`

(default) | `off`

When you select this parameter, the block derives the noise amplitude from
the linear model property `model.NoiseVariance`

. The
software filters random Gaussian white noise with the noise transfer
function of the model and adds the resulting noise to the simulated model
response. If you want to add the same noise every time you run the
Simulink^{®} model, specify the `Noise seed(s)`

property.

For continuous-time models, the ideal variance of the noise term is infinite. In reality, you see a band-limited noise that accounts for the time constants of the system. You can interpret the resulting simulated output as filtered using a lowpass filter with a passband that does not distort the dynamics from the input.

`Noise seed(s)`

— Add same noise to output for multiple simulations

`[]`

(default) | nonnegative integer | vector

The **Noise seed(s)** property seeds the random number
generator such that the block adds the same noise to the simulated output
every time you run the Simulink model. For information about using seeds, see `rng`

.

For multi-output models, you can use independent noise realizations that
generate the outputs with additive noise. Enter a vector of
*Ny* nonnegative integer entries, where
*Ny* is the number of output channels.

For random restarts that vary from one simulation to another, specify
**Noise seed(s)** as `[]`

.

#### Dependency

To enable this parameter, select ```
Add
noise
```

.

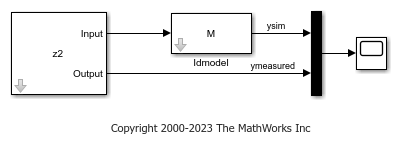

## Model Examples

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

## Version History

**Introduced in R2008a**
