Getting Started with Hyperspectral Image Processing

Hyperspectral imaging measures the spatial and spectral characteristics of an object by imaging it at numerous different wavelengths. The wavelength range extends beyond the visible spectrum and covers the spectrum from ultraviolet (UV) to long wave infrared (LWIR) wavelengths. The most popular are the visible, near-infrared, and mid-infrared wavelength bands. A hyperspectral imaging sensor acquires several images with narrow and contiguous wavelengths within a specified spectral range. Each of these images contains more subtle and detailed information. The different information in the various wavelengths is useful in diverse applications such as these.

  • Remote sensing applications such as identification of vegetation, water bodies, and roads, as different landscapes have distinct spectral signatures.

  • Non-destructive testing or visual inspection applications such as maturity monitoring of fruits.

  • Medical imaging applications such as tissue segmentation.

Hyperspectral image processing involves representing, analyzing, and interpreting information contained in hyperspectral images.

Hyperspectral image processing workflow

Representing Hyperspectral Data

The values measured by a hyperspectral imaging sensor are stored to a binary data file by using band sequential (BSQ), band-interleaved-by-pixel (BIP), or band-interleaved-by-line (BIL) encoding formats. The data file is associated to a header file that contains ancillary information (metadata) like sensor parameters, acquisition settings, spatial dimensions, spectral wavelengths, and encoding formats that are required for proper representation of the values in the data file. Alternatively, the ancillary information can also be directly added to the data file as in TIFF and NITF file formats.

For hyperspectral image processing, the values read from the data file are arranged into a three-dimensional (3-D) array of the form M-by-N-by-C, where M and N are the spatial dimensions of the acquired data, C is the spectral dimension specifying the number of spectral wavelengths (bands) used during acquisition. Thus, you can consider the 3-D array as a set of two-dimensional (2-D) monochromatic images captured at varying wavelengths. This set is known as the hyperspectral data cube or data cube.

The hypercube function constructs the data cube by reading the data file and the metadata information in the associated header file. The hypercube function creates a hypercube object and stores the data cube, spectral wavelengths, and the metadata to its properties. You can use the hypercube object as input to all other functions in the Image Processing Toolbox™ Hyperspectral Imaging Library. You can use the Hyperspectral Viewer app to interactively visualize and process hyperspectral images.

Large Hyperspectral Images

Processing hyperspectral images of very large spatial resolution requires a large amount of system memory, and might cause MATLAB to run out of memory. You can crop a large hyperspectral image to a small region of interest, and then read only that small region into memory using the hypercube object and its functions. For an example of how to process small regions of large hyperspectral images, see Process Large Hyperspectral Images.

Color Representation of Data Cube

To visualize and understand the object being imaged, it is useful to represent the data cube as a 2-D image by using color schemes. The color representation of the data cube enables you to visually inspect the data and supports decision making. You can use the colorize function to compute the Red-Green-Blue (RGB), false-color, and color-infrared (CIR) representations of the data cube.

Hyperspectral data cube and colorization

  • The RGB color scheme uses the red, green, and blue spectral band responses to generate the 2-D image of the hyperspectral data cube. The RGB color scheme brings a natural appearance, but results in a significant loss of subtle information.

  • The false-color scheme uses a combination of any number of bands other than the visible red, green, and blue spectral bands. Use false-color representation to visualize the spectral responses of bands outside the visible spectrum. The false-color scheme efficiently captures distinct information across all spectral bands of hyperspectral data.

  • The CIR color scheme uses spectral bands in the NIR range. The CIR representation of a hyperspectral data cube is particularly useful in displaying and analyzing vegetation areas of the data cube.


The hyperspectral imaging sensors typically have high spectral resolution and low spatial resolution. The spatial and the spectral characteristics of the acquired hyperspectral data are characterized by its pixels. Each pixel is a vector of values that specify the intensities at a location (x,y) in z different bands. The vector is known as the pixel spectrum, and it defines the spectral signature of the pixel located at (x,y). The pixel spectra are important features in hyperspectral data analysis. But these pixel spectra gets distorted due to factors such as sensor noise, low resolution, atmospheric effects, and spectral distortions from sensors.

Data Cube and Pixel Spectrum

You can use the denoiseNGMeet function to remove noise from a hyperspectral data by using the non-local meets global approach.

To enhance the spatial resolution of a hyperspectral data, you can use image fusion methods. The fusion approach combines information from the low resolution hyperspectral data with a high resolution multispectral data or panchromatic image of the same scene. This approach is also known as sharpening or pansharpening in hyperspectral image analysis. Pansharpening specifically refers to fusion between hyperspectral and panchromatic data. You can use the sharpencnmf function for sharpening hyperspectral data using coupled non-matrix factorization method.

To compensate for the atmospheric effects, you must first calibrate the pixel values, which are digital numbers (DNs). You must preprocess the data by calibrating DNs using radiometric and atmospheric correction methods. This process improves interpretation of the pixel spectra and provides better results when you analyse multiple data sets. In addition, spectral distortions which occur due to hyperspectral sensor characteristics during acquisition, can lead to inaccuracies in the spectral signatures. To enhance the reliability of spectral data for further analysis, you must apply preprocessing techniques that significantly reduce spectral distortions in hyperspectral images. For information about hyperspectral data correction methods, see Hyperspectral Data Correction.

The other preprocessing step that is important in all hyperspectral imaging applications is dimensionality reduction. The large number of bands in the hyperspectral data increases the computational complexity of processing the data cube. The contiguous nature of the band images results in redundant information across bands. Neighboring bands in a hyperspectral image have high correlation, which results in spectral redundancy. You can remove the redundant bands by decorrelating the band images. Popular approaches for reducing the spectral dimensionality of a data cube include band selection and orthogonal transforms.

  • The band selection approach uses orthogonal space projections to find the spectrally distinct and most informative bands in the data cube. Use the selectBands and removeBands functions for the finding most informative bands and removing one or more bands, respectively.

  • Orthogonal transforms such as principal component analysis (PCA) and maximum noise fraction (MNF), decorrelate the band information and find the principal component bands.

    PCA transforms the data to a lower dimensional space and finds principal component vectors with their directions along the maximum variances of the input bands. The principal components are in descending order of the amount of total variance explained.

    MNF computes the principal components that maximize the signal-noise-ratio, rather than the variance. MNF transform is particularly efficient at deriving principal components from noisy band images. The principal component bands are spectrally distinct bands with low interband correlation.

    The hyperpca and hypermnf functions reduce the spectral dimensionality of the data cube by using the PCA and MNF transforms respectively. You can use the pixel spectra derived from the reduced data cube for hyperspectral data analysis.

Spectral Unmixing

In a hyperspectral image, the intensity values recorded at each pixel specify the spectral characteristics of the region that the pixel belongs to. The region can be a homogeneous surface or heterogeneous surface. The pixels that belong to a homogeneous surface are known as pure pixels. These pure pixels constitute the endmembers of the hyperspectral data.

Heterogeneous surfaces are a combination of two or more distinct homogeneous surfaces. The pixels belonging to heterogeneous surfaces are known as mixed pixels. The spectral signature of a mixed pixel is a combination of two or more endmember signatures. This spatial heterogeneity is mainly due to the low spatial resolution of the hyperspectral sensor.

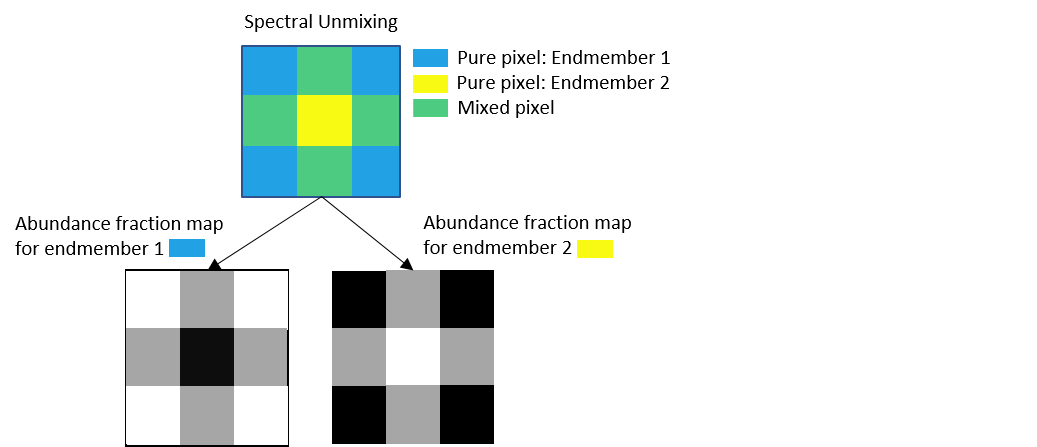

Spectral unmixing

Spectral unmixing is the process of decomposing the spectral signatures of mixed pixels into their constituent endmembers. The spectral unmixing process involves two steps:

  1. Endmember extraction — The spectra of the endmembers are prominent features in the hyperspectral data and can be used for efficient spectral unmixing of hyperspectral images. Convex geometry based approaches, such as pixel purity index (PPI), fast iterative pixel purity index (FIPPI), and N-finder (N-FINDR) are some of the efficient approaches for endmember extraction.

    • Use the ppi function to estimate the endmembers by using the PPI approach. The PPI approach projects the pixel spectra to an orthogonal space and identifies extrema pixels in the projected space as endmembers. This is a non-iterative approach, and the results depend on the random unit vectors generated for orthogonal projection. To improve results, you must increase the random unit vectors for projection, which can be computationally expensive.

    • Use the fippi function to estimate the endmembers by using the FIPPI approach. The FIPPI approach is an iterative approach, which uses an automatic target generation process to estimate the initial set of unit vectors for orthogonal projection. The algorithm converges faster than the PPI approach and identifies endmembers that are distinct from one another.

    • Use the nfindr function to estimate the endmembers by using the N-FINDR method. N-FINDR is an iterative approach that constructs a simplex by using the pixel spectra. The approach assumes that the volume of a simplex formed by the endmembers is larger than the volume defined by any other combination of pixels. The set of pixel signatures for which the volume of the simplex is high are the endmembers.

  2. Abundance map estimation — Given the endmember signatures, it is useful to estimate the fractional amount of each endmember present in each pixel. You can generate the abundance maps for each endmember, which represent the distribution of endmember spectra in the image. You can label a pixel as belonging to an endmember spectra by comparing all of the abundance map values obtained for that pixel.

    Use the estimateAbundanceLS function to estimate the abundance maps for each endmember spectra.

Spectral Matching and Target Detection

Interpret the pixel spectra by performing spectral matching using the spectralMatch function or target detection using the detectTarget function. Spectral matching identifies the class of an endmember material by comparing its spectra with one or more reference spectra. The reference data consists of pure spectral signatures of materials, which are available as spectral libraries. Use the readEcostressSig function to read the reference spectra files from the ECOSTRESS spectral library. Then, you can compute the similarity between the files in the ECOSTRESS library spectra and the spectra of an endmember material by using the spectralMatch function.

You can also use spectral matching to identify materials or perform target detection, detecting specific targets in a hyperspectral image when the spectral signature of the target is distinct from other regions in the hyperspectral image. However, when the spectral contrast between the target and other regions is low, spectral matching becomes more challenging. In such cases, you must use more sophisticated target detection algorithms, such ad those provided by the detectTarget function, that consider the entire hyperspectral data cube and use statistical or machine learning methods. For more information on spectral matching and target detection techniques, see Spectral Matching and Target Detection Techniques.

Spectral Indices and Segmentation

A spectral index is a function such as a ratio or difference of two or more spectral bands. Spectral indices delineate and identify different regions in an image based on their spectral properties. By calculating a spectral index for each pixel, you can transform the hyperspectral data into a single-band image where the index values indicate the presence and concentration of a feature of interest. Use the spectralIndices and customSpectralIndex functions to identify different regions in the hyperspectral image. For more information on spectral indices, see Spectral Indices.

You can also use the spectral indices for change detection and threshold-based segmentation of hyperspectral images. To segment regions that cannot be distinguished using spectral indices, you can use spectral clustering approaches such as Simple Linear Iterative Clustering (SLIC) with the hyperslic function or anchor graphs with the hyperseganchor function.


Hyperspectral image processing applications include land cover classification, material analysis, target detection, change detection, visual inspection, and medical image analysis.
