# meshm

Project regular data grid on map axes

## Syntax

```meshm(Z,R) meshm(Z,R,gratsize) meshm(Z,R,gratsize,alt) meshm(___,param1,val1,param2,val2,...) H = meshm(___) ```

## Description

`meshm(Z,R)` will display the regular data grid `Z` warped to the default projection graticule. `R` can be a referencing vector, a referencing matrix, or a geographic raster reference object.

If `R` is a geographic raster reference object, its `RasterSize` property must be consistent with `size(Z)`.

If `R` is a referencing vector, it must be a 1-by-3 with elements:

`[cells/degree northern_latitude_limit western_longitude_limit]`

If `R` is a referencing matrix, it must be 3-by-2 and transform raster row and column indices to/from geographic coordinates according to:

`[lon lat] = [row col 1] * R`

If `R` is a referencing matrix, it must define a (non-rotational, non-skewed) relationship in which each column of the data grid falls along a meridian and each row falls along a parallel. The current axes must have a valid map projection definition.

`meshm(Z,R,gratsize)` displays a regular data grid warped to a graticule mesh defined by the 1-by-2 vector `gratsize`. `gratsize(1)` indicates the number of lines of constant latitude (parallels) in the graticule, and `gratsize(2)` indicates the number of lines of constant longitude (meridians).

`meshm(Z,R,gratsize,alt)` displays the regular surface map at the altitude specified by `alt`. If `alt` is a scalar, then the grid is drawn in the z = `alt` plane. If `alt` is a matrix, then `size(alt)` must equal `gratsize`, and the graticule mesh is drawn at the altitudes specified by `alt`. If the default graticule is desired, set `gratsize = []`.

`meshm(___,param1,val1,param2,val2,...)` uses optional parameter name-value pairs to control the properties of the surface object constructed by `meshm`. (If data is placed in the `UserData` property of the surface, then the projection of this object cannot be altered once displayed.)

`H = meshm(___)` returns the handle to the surface drawn.

## Examples

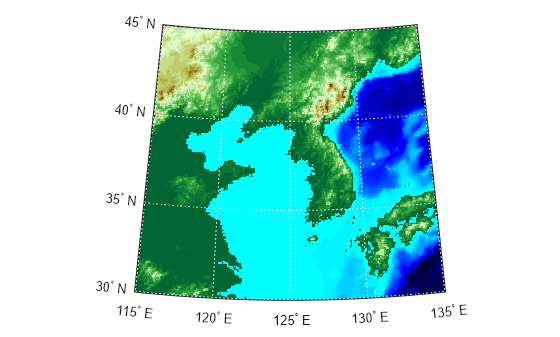

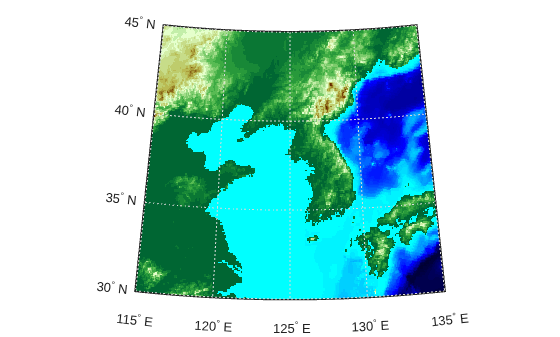

Load elevation data and a geographic cells reference object for the Korean peninsula. Then, display the data on a world map. Apply a colormap appropriate for elevation data using `demcmap`.

```load korea5c worldmap(korea5c,korea5cR) meshm(korea5c,korea5cR) demcmap(korea5c)```

## Version History

Introduced before R2006a
