# Verify a MATLAB Algorithm

This tutorial shows how to use MATLAB® Test™ to verify a MATLAB algorithm. This tutorial uses a project that contains a MATLAB algorithm, MATLAB tests, and requirements. In this tutorial, you follow these steps to run the tests, collect coverage, verify requirements, and deploy the algorithm as C code:

1. Verify Code by Running Tests: Verify the algorithm by using the MATLAB Test Manager to run tests and view results.

2. Collect Coverage for Tests and Address Missing Coverage: Collect coverage and add coverage for lines of source code that are uncovered by writing new tests.

3. Verify Requirements and Address Missing Traceability: Verify requirements that are linked to tests and add traceability for unlinked requirements.

4. Generate C Code and Test for Equivalence: Deploy the algorithm as C code and test the generated code for functional equivalence.

### Examine Project

This tutorial uses the `MATLABShortestPath` project.

`openProject("MATLABShortestPath");`

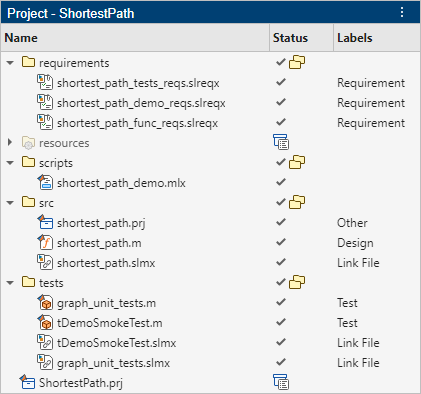

The project contains:

• Requirement sets, located in the `requirements` folder

• A MATLAB algorithm, located in the `src` folder

• MATLAB tests, located in the `tests` folder

• A script to demonstrate running the MATLAB algorithm, located in the `scripts` folder

• Links from MATLAB code lines to requirements, stored in SLMX files in the `src` and `tests` folders

### Use the Shortest Path Function

The `shortest_path` function tests the validity of the inputs to the function and then uses the Djikstra algorithm to calculate the number of edges in the shortest path between two nodes on a graph. The inputs to the function are an adjacency matrix that represents a graph, the starting node, and the ending node. For example, consider this adjacency matrix that represents a graph with six nodes.

```A = [0 1 0 0 1 0; 1 0 1 0 0 0; 0 1 0 1 0 0; 0 0 1 0 1 1; 1 0 0 1 0 0; 0 0 0 1 0 0];```

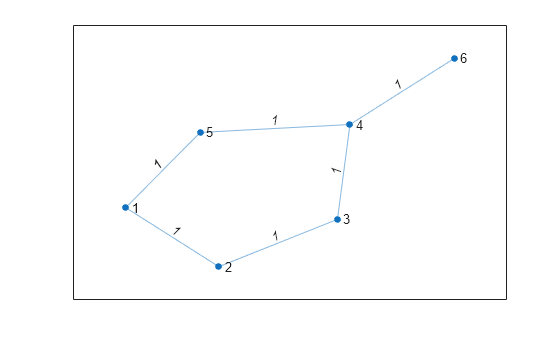

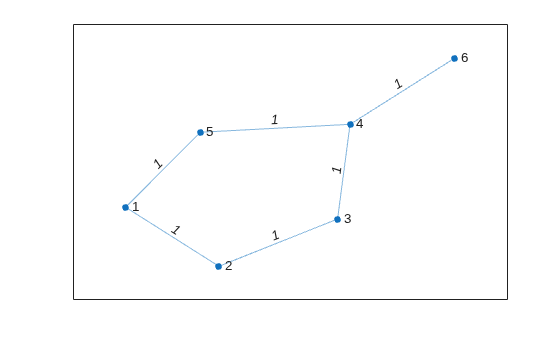

Create a graph from the matrix and plot it.

```G = graph(A); plot(G,EdgeLabel=G.Edges.Weight)```

Calculate the number of edges in the shortest path between nodes 1 and 6.

`pathLength = shortest_path(A,1,6)`
```pathLength = 3 ```
