volume
Volume of 3-D alpha shape
Description
Examples
Find Volume of 3-D Alpha Shape
Create a set of 3-D points.
[x1, y1, z1] = sphere(24);
x1 = x1(:);
y1 = y1(:);
z1 = z1(:);
x2 = x1+5;
P = [x1 y1 z1; x2 y1 z1];
P = unique(P,'rows');

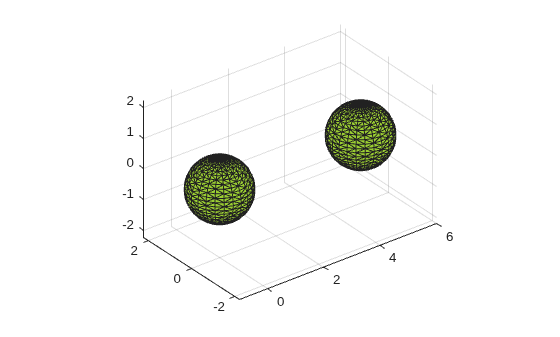

Create and plot an alpha shape using an alpha radius of 1.5.
shp = alphaShape(P,1.5); plot(shp)
Compute the volume of the alpha shape.
totalvol = volume(shp)
totalvol = 8.2468
Compute the volumes of each of the two regions separately.
regionvols = volume(shp, 1:numRegions(shp))
regionvols = 1×2
4.1234 4.1234
Input Arguments
shp
— 3-D alpha shape
alphaShape
object
3-D alpha shape, specified as an alphaShape
object. For
more information, see alphaShape
Example: shp = alphaShape(x,y,z)
creates a 3-D
alphaShape
object from the (x,y,z)
point coordinates.
RegionID
— ID number for a region in the alpha shape
positive integer scalar
ID number for region in alpha shape, specified as a positive
integer scalar between 1
and numRegions(shp)
.
An alpha shape can contain several smaller regions, depending
on the point set and parameters. Each of these smaller regions is
assigned a unique RegionID
, which numbers the regions
from the largest area or volume to the smallest. For example, consider
a 3-D alpha shape with two regions. The region with the largest volume
has a RegionID
of 1, and the smaller region has
a RegionID
of 2.
Example: shp.RegionThreshold = area(shp,numRegions(shp)-2);
suppresses
the two smallest regions in 2-D alpha shape shp
.
Data Types: double
Version History
Introduced in R2014b
