# ezmesh

(Not recommended) Easy-to-use 3-D mesh plotter

`ezmesh` is not recommended. Use `fmesh` instead.

## Syntax

```ezmesh(fun) ezmesh(fun,domain) ezmesh(funx,funy,funz) ezmesh(funx,funy,funz,[smin,smax,tmin,tmax]) ezmesh(funx,funy,funz,[min,max]) ezmesh(...,n) ezmesh(...,'circ') ezmesh(axes_handle,...) h = ezmesh(...) ```

## Description

`ezmesh(fun)` creates a graph of `fun(x,y)` using the `mesh` function. `fun` is plotted over the default domain: -2π < `x` < 2π, -2π < `y` < 2π.

`fun` can be a function handle, a character vector, or a string (see the Tips section).

`ezmesh(fun,domain)` plots `fun` over the specified `domain`. `domain` can be either a 4-by-1 vector [`xmin`, `xmax`, `ymin`, `ymax`] or a 2-by-1 vector [`min`, `max`] (where `min` < `x` < `max`, `min` < `y` < `max`).

`ezmesh(funx,funy,funz)` plots the parametric surface `funx(s,t)`, `funy(s,t)`, and `funz(s,t)` over the square: -2π < `s` < 2π, -2π < `t` < 2π.

`ezmesh(funx,funy,funz,[smin,smax,tmin,tmax])` or `ezmesh(funx,funy,funz,[min,max])` plots the parametric surface using the specified domain.

`ezmesh(...,n)` plots `fun` over the default domain using an `n`-by-`n` grid. The default value for `n` is 60.

`ezmesh(...,'circ')` plots `fun` over a disk centered on the domain.

`ezmesh(axes_handle,...)` plots into the axes with handle `axes_handle` instead of the current axes (`gca`).

`h = ezmesh(...)` returns the handle to a surface object in `h`.

## Examples

collapse all

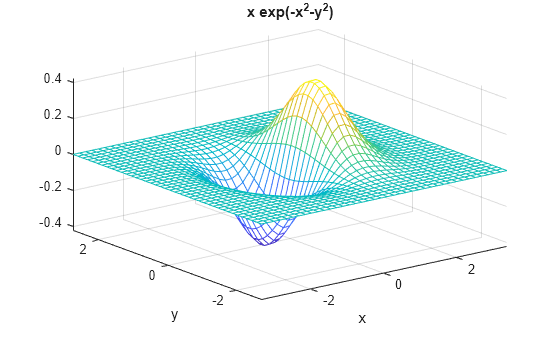

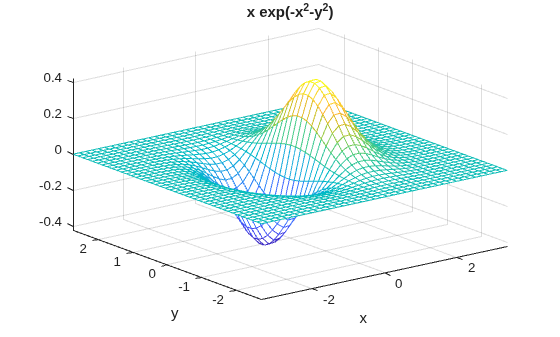

Create a mesh plot of the function $f\left(x,y\right)=x{e}^{-{x}^{2}-{y}^{2}}$ over a 40-by-40 grid.

```fh = @(x,y) x.*exp(-x.^2-y.^2); ezmesh(fh,40)```

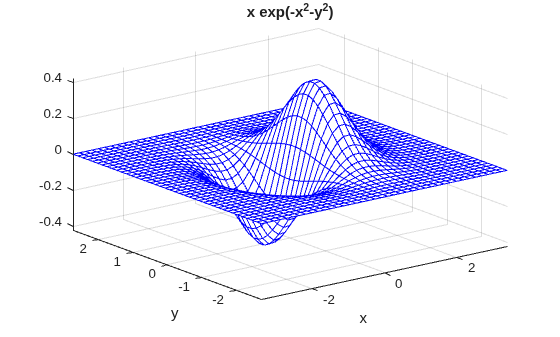

Set the mesh lines to a uniform blue color by setting the colormap to a single color.

`colormap([0 0 1])`

## Tips

### Passing the Function as a Character Vector or String

Array multiplication, division, and exponentiation are always implied in the expression you pass to `ezmesh`. For example, the MATLAB® syntax for a mesh plot of the expression

`sqrt(x.^2 + y.^2);`

is written as

`ezmesh('sqrt(x^2 + y^2)')`

That is, `x^2` is interpreted as `x.^2` in the character vector or string you pass to `ezmesh`.

If the function to be plotted is a function of the variables u and v (rather than x and y), then the domain endpoints `umin`, `umax`, `vmin`, and `vmax` are sorted alphabetically. Thus, ```ezmesh('u^2 - v^3',[0,1],[3,6])``` plots u2 - v3 over 0 < u < 1, 3 < v < 6.

### Passing a Function Handle

Function handle arguments must point to functions that use MATLAB syntax. For example, the following statements define an anonymous function and pass the function handle `fh` to `ezmesh`.

```fh = @(x,y) sqrt(x.^2 + y.^2); ezmesh(fh)```

Note that when using function handles, you must use the array power, array multiplication, and array division operators (`.^, .*, ./`) since `ezmesh` does not alter the syntax, as in the case with character vector or string inputs.

If your function has additional parameters, for example `k` in `myfun`:

```function z = myfun(x,y,k) z = x.^k - y.^k - 1;```

then you can use an anonymous function to specify that parameter:

`ezmesh(@(x,y)myfun(x,y,2))`
