(Not recommended) Easy-to-use 3-D colored surface plotter

ezsurf is not recommended. Use fsurf instead.


h = ezsurf(...)


ezsurf(fun) creates a graph of fun(x,y) using the surf function. fun is plotted over the default domain: -2π < x < 2π, -2π < y < 2π.

fun can be a function handle, a character vector, or a string (see the Tips section).

ezsurf(fun,domain) plots fun over the specified domain. domain must be a vector. See the Algorithms section for details on vector inputs vs axes limit outputs.

ezsurf(funx,funy,funz) plots the parametric surface funx(s,t), funy(s,t), and funz(s,t) over the square: -2π < s < 2π, -2π < t < 2π.

ezsurf(funx,funy,funz,[smin,smax,tmin,tmax]) or ezsurf(funx,funy,funz,[min,max]) plots the parametric surface using the specified domain.

ezsurf(...,n) plots fun over the default domain using an n-by-n grid. The default value for n is 60.

ezsurf(...,'circ') plots fun over a disk centered on the domain.

ezsurf(axes_handle,...) plots into the axes with handle axes_handle instead of the current axes (gca).

h = ezsurf(...) returns the handle to a surface object in h.


collapse all

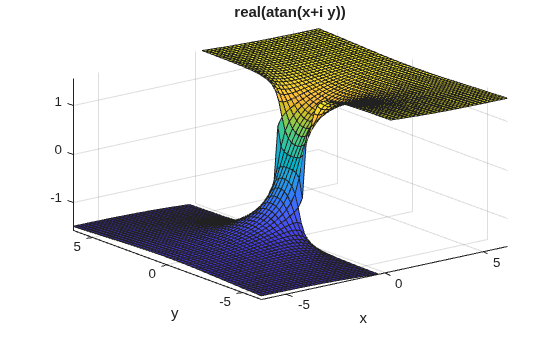

Plot the function f(x,y)=real(atan(x+iy)) over the domain -2π<x<2π and -2π<y<2π. The ezsurf function does not plot points where the mathematical function is not defined. These points are set to NaN so that they do not plot.

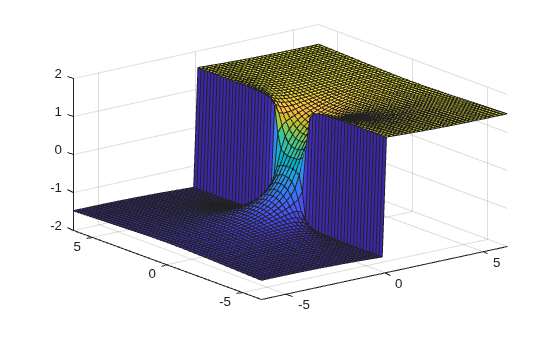

Use surf to plot the same data without filtering discontinuities.

[x,y] = meshgrid(linspace(-2*pi,2*pi,60));
z = real(atan(x+1i.*y));


ezsurf and ezsurfc do not accept complex inputs.

Passing the Function as a Character Vector or String

Array multiplication, division, and exponentiation are always implied in the expression you pass to ezsurf. For example, the MATLAB® syntax for a surface plot of the expression

sqrt(x.^2 + y.^2);

is written as

ezsurf('sqrt(x^2 + y^2)')

That is, x^2 is interpreted as x.^2 in the character vector or string you pass to ezsurf.

If the function to be plotted is a function of the variables u and v (rather than x and y), then the domain endpoints umin, umax, vmin, and vmax are sorted alphabetically. Thus, ezsurf('u^2 - v^3',[0,1],[3,6]) plots u2 - v3 over 0 < u < 1, 3 < v < 6.

Passing a Function Handle

Function handle arguments must point to functions that use MATLAB syntax. For example, the following statements define an anonymous function and pass the function handle fh to ezsurf.

fh = @(x,y) sqrt(x.^2 + y.^2);

Note that when using function handles, you must use the array power, array multiplication, and array division operators (.^, .*, ./) since ezsurf does not alter the syntax, as in the case with character vector or string inputs.

Passing Additional Arguments

If your function has additional parameters, for example k in myfun:

function z = myfun(x,y,k1,k2,k3)
z = x.*(y.^k1)./(x.^k2 + y.^k3);

then you can use an anonymous function to specify that parameter:



ezsurf determines the x- and y-axes limits in different ways depending on how you input the domain (if at all). In the following table, R is the vector [xmin, xmax, ymin, ymax] and v is the manually entered domain vector.

Number of domain values specified:Resulting domain vector:
v = [ ];
R = [-2*pi, 2*pi, -2*pi, 2*pi];
v = [ v(1) ];
R = double([-abs(v),abs(v),-abs(v),abs(v)]);
v = [ v(1) v(2) ];
R = double([v(1),v(2),v(1),v(2)]);
v = [ v(1) v(2) v(3) ];
R = double([-v(1),v(2),-abs(v(3)),abs(v(3))]);
v = [ v(1) v(2) v(3) v(4) ];
R = double(v);
v = [ v(1)..v(n) ]; n>4
R = double([-abs(v(1)), abs(v(1)), -abs(v(1)), abs(v(1))]);

If you specify a single number in non-vector format (without square brackets, [ ]), ezsurf interprets it as the n, the number of points desired between the axes max and min values.

By default, ezsurf uses 60 points between the max and min values of an axes. When the min and max values are the default values (R = [-2*pi, 2*pi, -2*pi, 2*pi];), ezsurf ensures the 60 points fall within the non-complex range of the specified equation. For example, 1x2y2 is only real when x2y21. The default graph of this function looks like this:


You can see that there are 60 points between the minimum and maximum values for which 1x2y2has real values. However, when you specify the domain values to be the same as the default (R = [-2*pi, 2*pi, -2*pi, 2*pi];), a different result appears:

ezsurf('sqrt(1-x^2-y^2)',[-2*pi 2*pi])

In this case, the graphic limits are the same, but ezsurf used 60 points between the user-defined limits instead of checking to see if all those points would have real answers.

Extended Capabilities

Introduced before R2006a
