Compare fminimax
and fminunc
A minimax problem minimizes the maximum of a set of objective functions. Why not minimize this maximum function, which is a scalar function? The answer is that the maximum is not smooth, and Optimization Toolbox™ solvers such as fminunc
require smoothness.
For example, define fun(x)
as three linear objective functions in two variables, and fun2
as the maximum of these three objectives.
a = [1;1]; b = [-1;1]; c = [0;-1]; a0 = 2; b0 = -3; c0 = 4; fun = @(x)[x*a+a0,x*b+b0,x*c+c0]; fun2 = @(x)max(fun(x),[],2);

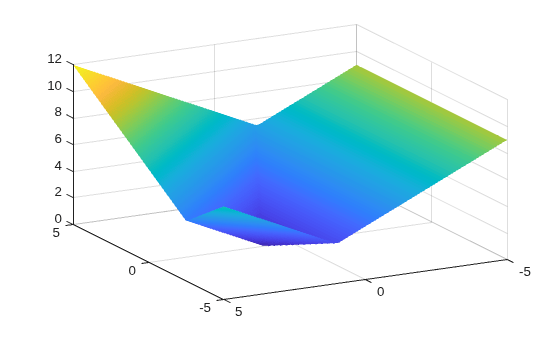

Plot the maximum of the three objectives.
[X,Y] = meshgrid(linspace(-5,5)); Z = fun2([X(:),Y(:)]); Z = reshape(Z,size(X)); surf(X,Y,Z,'LineStyle','none') view(-118,28)
fminimax
finds the minimax point easily.
x0 = [0,0]; [xm,fvalm,maxfval] = fminimax(fun,x0)
Local minimum possible. Constraints satisfied. fminimax stopped because the size of the current search direction is less than twice the value of the step size tolerance and constraints are satisfied to within the value of the constraint tolerance.
xm = 1×2
-2.5000 2.2500
fvalm = 1×3
1.7500 1.7500 1.7500
maxfval = 1.7500
However, fminunc
stops at a point that is far from the minimax point.
[xu,fvalu] = fminunc(fun2,x0)
Local minimum possible. fminunc stopped because it cannot decrease the objective function along the current search direction.
xu = 1×2
0 1.0000
fvalu = 3.0000
fminimax
finds a better (smaller) solution.
fprintf("fminimax finds a point with objective %g,\nwhile fminunc finds a point with objective %g.",maxfval,fvalu)
fminimax finds a point with objective 1.75, while fminunc finds a point with objective 3.
