fminimax

Solve minimax constraint problem

Equation

Finds the minimum of a problem specified by

$$\underset{x}{\min }\underset{i}{\max }{F}_i(x)\text{ such that }\{\begin{array}{c}c(x)\le 0\\ ceq(x)=0\\ A\cdot x\le b\\ Aeq\cdot x=beq\\ lb\le x\le ub\end{array}$$

where b and beq are vectors, A and Aeq are matrices, and c(x), ceq(x), and F(x) are functions that return vectors. F(x), c(x), and ceq(x) can be nonlinear functions.

x, lb, and ub can be passed as vectors or matrices; see Matrix Arguments.

You can also solve max-min problems with fminimax, using the identity

$$\underset{x}{\max }\underset{i}{\min }{F}_i(x)=-\underset{x}{\min }\underset{i}{\max }\left(-F_i(x)\right).$$

You can solve problems of the form

$$\underset{x}{\min }\underset{i}{\max }\left|F_i(x)\right|$$

by using the AbsoluteMaxObjectiveCount option; see Notes.

Syntax

x = fminimax(fun,x0)
x = fminimax(fun,x0,A,b)
x = fminimax(fun,x0,A,b,Aeq,beq)
x = fminimax(fun,x0,A,b,Aeq,beq,lb,ub)
x = fminimax(fun,x0,A,b,Aeq,beq,lb,ub,nonlcon)
x = fminimax(fun,x0,A,b,Aeq,beq,lb,ub,nonlcon,options)
x = fminimax(problem)
[x,fval] = fminimax(...)
[x,fval,maxfval] = fminimax(...)
[x,fval,maxfval,exitflag] = fminimax(...)
[x,fval,maxfval,exitflag,output] = fminimax(...)
[x,fval,maxfval,exitflag,output,lambda] = fminimax(...)


Description

fminimax minimizes the worst-case (largest) value of a set of multivariable functions, starting at an initial estimate. This is generally referred to as the minimax problem.

Note

Passing Extra Parameters explains how to pass extra parameters to the objective functions and nonlinear constraint functions, if necessary.

x = fminimax(fun,x0) starts at x0 and finds a minimax solution x to the functions described in fun.

x = fminimax(fun,x0,A,b) solves the minimax problem subject to the linear inequalities A*x ≤ b.

x = fminimax(fun,x0,A,b,Aeq,beq) solves the minimax problem subject to the linear equalities Aeq*x = beq as well. Set A = [] and b = [] if no inequalities exist.

x = fminimax(fun,x0,A,b,Aeq,beq,lb,ub) defines a set of lower and upper bounds on the design variables in x, so that the solution is always in the range lb ≤ x ≤ ub.

Note

See Iterations Can Violate Constraints.

x = fminimax(fun,x0,A,b,Aeq,beq,lb,ub,nonlcon) subjects the minimax problem to the nonlinear inequalities c(x) or equality constraints ceq(x) defined in nonlcon. fminimax optimizes such that c(x) ≤ 0 and ceq(x) = 0. Set lb = [] and/or ub = [] if no bounds exist.

x = fminimax(fun,x0,A,b,Aeq,beq,lb,ub,nonlcon,options) minimizes with the optimization options specified in options. Use optimoptions to set these options.

x = fminimax(problem) finds the minimum for problem, where problem is a structure described in Input Arguments.

Create the problem structure by exporting a problem from Optimization app, as described in Exporting Your Work.

[x,fval] = fminimax(...) returns the value of the objective function fun at the solution x.

[x,fval,maxfval] = fminimax(...) returns the maximum of the objective functions in the input fun evaluated at the solution x.

[x,fval,maxfval,exitflag] = fminimax(...) returns a value exitflag that describes the exit condition of fminimax.

[x,fval,maxfval,exitflag,output] = fminimax(...) returns a structure output with information about the optimization.

[x,fval,maxfval,exitflag,output,lambda] = fminimax(...) returns a structure lambda whose fields contain the Lagrange multipliers at the solution x.

Note

If the specified input bounds for a problem are inconsistent, the output x is x0 and the output fval is [].

Input Arguments

Function Input Arguments contains general descriptions of arguments passed into fminimax. This section provides function-specific details for fun, nonlcon, and problem:

fun

The function to be minimized. fun is a function that accepts a vector x and returns a vector F, the objective functions evaluated at x. The function fun can be specified as a function handle for a file: x = fminimax(@myfun,x0) where myfun is a MATLAB® function such as function F = myfun(x) F = ... % Compute function values at x fun can also be a function handle for an anonymous function. x = fminimax(@(x)sin(x.*x),x0); If the user-defined values for x and F are arrays, they are converted to vectors using linear indexing (see Array Indexing (MATLAB)). To minimize the worst case absolute values of any of the elements of the vector F(x) (i.e., min{max abs{F(x)} } ), partition those objectives into the first elements of F and use optimoptions to set the AbsoluteMaxObjectiveCount option to be the number of such objectives. If the gradient of the objective function can also be computed and the SpecifyObjectiveGradient option is true, as set by options = optimoptions('fminimax','SpecifyObjectiveGradient',true) then the function fun must return, in the second output argument, the gradient value G, a matrix, at x. The gradient consists of the partial derivative dF/dx of each F at the point x. If F is a vector of length m and x has length n, where n is the length of x0, then the gradient G of F(x) is an n-by-m matrix where G(i,j) is the partial derivative of F(j) with respect to x(i) (i.e., the jth column of G is the gradient of the jth objective function F(j)). By checking the value of nargout, the function can avoid computing G when myfun is called with only one output argument (in the case where the optimization algorithm only needs the value of F but not G). function [F,G] = myfun(x) F = ... % Compute the function values at x if nargout > 1 % Two output arguments G = ... % Gradients evaluated at x end Note Setting SpecifyObjectiveGradient to true is effective only when there is no nonlinear constraint, or when the nonlinear constraint has SpecifyConstraintGradient set to true as well. This is because internally the objective is folded into the constraints, so the solver needs both gradients (objective and constraint) supplied in order to avoid estimating a gradient.

nonlcon	The function that computes the nonlinear inequality constraints c(x) ≤ 0 and nonlinear equality constraints ceq(x) = 0. The function nonlcon accepts a vector x and returns two vectors c and ceq. The vector c contains the nonlinear inequalities evaluated at x, and ceq contains the nonlinear equalities evaluated at x. The function nonlcon can be specified as a function handle. x = fminimax(@myfun,x0,A,b,Aeq,beq,lb,ub,@mycon) where mycon is a MATLAB function such as function [c,ceq] = mycon(x) c = ... % Compute nonlinear inequalities at x ceq = ... % Compute nonlinear equalities at x If the gradients of the constraints can also be computed and the SpecifyConstraintGradient option is true, as set by options = optimoptions('fminimax','SpecifyConstraintGradient',true) then the function nonlcon must also return, in the third and fourth output arguments, GC, the gradient of c(x), and GCeq, the gradient of ceq(x). Nonlinear Constraints explains how to “conditionalize” the gradients for use in solvers that do not accept supplied gradients, and explains the syntax of gradients. Note Setting SpecifyConstraintGradient to true is effective only when SpecifyObjectiveGradient is set to true as well. This is because internally the objective is folded into the constraint, so the solver needs both gradients (objective and constraint) supplied in order to avoid estimating a gradient. Note Because Optimization Toolbox™ functions only accept inputs of type double, user-supplied objective and nonlinear constraint functions must return outputs of type double.
problem	objective	Objective function
	x0	Initial point for x
	Aineq	Matrix for linear inequality constraints
	bineq	Vector for linear inequality constraints
	Aeq	Matrix for linear equality constraints
	beq	Vector for linear equality constraints
	lb	Vector of lower bounds
	ub	Vector of upper bounds
	nonlcon	Nonlinear constraint function
	solver	'fminimax'
	options	Options created with optimoptions

Output Arguments

Function Input Arguments contains general descriptions of arguments returned by fminimax. This section provides function-specific details for exitflag, lambda, maxfval, and output:

exitflag	Integer identifying the reason the algorithm terminated. The following lists the values of exitflag and the corresponding reasons the algorithm terminated:
	1	Function converged to a solution x.
	4	Magnitude of the search direction less than the specified tolerance and constraint violation less than options.ConstraintTolerance.
	5	Magnitude of directional derivative less than the specified tolerance and constraint violation less than options.ConstraintTolerance.
	0	Number of iterations exceeded options.MaxIterations or number of function evaluations exceeded options.MaxFunctionEvaluations.
	-1	Algorithm was terminated by the output function.
	-2	No feasible point was found.
lambda	Structure containing the Lagrange multipliers at the solution x (separated by constraint type). The fields of the structure are
	lower	Lower bounds lb
	upper	Upper bounds ub
	ineqlin	Linear inequalities
	eqlin	Linear equalities
	ineqnonlin	Nonlinear inequalities
	eqnonlin	Nonlinear equalities
maxfval	Maximum of the function values evaluated at the solution x, that is, maxfval = max{fun(x)}.
output	Structure containing information about the optimization. The fields of the structure are
	iterations	Number of iterations taken.
	funcCount	Number of function evaluations.
	lssteplength	Size of line search step relative to search direction
	stepsize	Final displacement in x
	algorithm	Optimization algorithm used.
	firstorderopt	Measure of first-order optimality
	constrviolation	Maximum of constraint functions
	message	Exit message

Options

Optimization options used by fminimax. Use optimoptions to set or change options. See Optimization Options Reference for detailed information.

Some options are absent from the optimoptions display. These options appear in italics in the following table. For details, see View Options.

AbsoluteMaxObjectiveCount	Number of elements of Fi(x) to minimize the maximum absolute value of Fi. See Notes. The default is 0. For optimset, the name is MinAbsMax. See Current and Legacy Option Name Tables.
Diagnostics	Display diagnostic information about the function to be minimized or solved. The choices are 'on' or the default, 'off'.
DiffMaxChange	Maximum change in variables for finite-difference gradients (a positive scalar). The default is Inf.
DiffMinChange	Minimum change in variables for finite-difference gradients (a positive scalar). The default is 0.
Display	Level of display (see Iterative Display): 'off' or 'none' displays no output. 'iter' displays output at each iteration, and gives the default exit message. 'iter-detailed' displays output at each iteration, and gives the technical exit message. 'notify' displays output only if the function does not converge, and gives the default exit message. 'notify-detailed' displays output only if the function does not converge, and gives the technical exit message. 'final' (default) displays just the final output, and gives the default exit message. 'final-detailed' displays just the final output, and gives the technical exit message.
ConstraintTolerance	Termination tolerance on the constraint violation, a positive scalar. The default is 1e-6. See Tolerances and Stopping Criteria. For optimset, the name is TolCon. See Current and Legacy Option Name Tables.
FiniteDifferenceStepSize	Scalar or vector step size factor for finite differences. When you set FiniteDifferenceStepSize to a vector v, forward finite differences steps delta are delta = v.*sign′(x).*max(abs(x),TypicalX); where sign′(x) = sign(x) except sign′(0) = 1. Central finite differences are delta = v.*max(abs(x),TypicalX); Scalar FiniteDifferenceStepSize expands to a vector. The default is sqrt(eps) for forward finite differences, and eps^(1/3) for central finite differences. For optimset, the name is FinDiffRelStep. See Current and Legacy Option Name Tables.
FiniteDifferenceType	Finite differences, used to estimate gradients, are either 'forward' (the default), or 'central' (centered). 'central' takes twice as many function evaluations, but should be more accurate. The algorithm is careful to obey bounds when estimating both types of finite differences. So, for example, it could take a backward, rather than a forward, difference to avoid evaluating at a point outside bounds. For optimset, the name is FinDiffType. See Current and Legacy Option Name Tables.
FunctionTolerance	Termination tolerance on the function value, a positive scalar. The default is 1e-6. See Tolerances and Stopping Criteria. For optimset, the name is TolFun. See Current and Legacy Option Name Tables.
FunValCheck	Check whether objective function and constraints values are valid. 'on' displays an error when the objective function or constraints return a value that is complex, Inf, or NaN. The default 'off' displays no error.
MaxFunctionEvaluations	Maximum number of function evaluations allowed, a positive integer. The default value is 100*numberOfVariables. See Tolerances and Stopping Criteria and Iterations and Function Counts. For optimset, the name is MaxFunEvals. See Current and Legacy Option Name Tables.
MaxIterations	Maximum number of iterations allowed, a positive integer. The default value is 400. See Tolerances and Stopping Criteria and Iterations and Function Counts. For optimset, the name is MaxIter. See Current and Legacy Option Name Tables.
MaxSQPIter	Maximum number of SQP iterations allowed, a positive integer. The default is 10*max(numberOfVariables, numberOfInequalities + numberOfBounds).
MeritFunction	Use the goal attainment/minimax merit function if set to 'multiobj' (default). Use the fmincon merit function if set to 'singleobj'.
OptimalityTolerance	Termination tolerance on the first-order optimality, a positive scalar. The default is 1e-6. See First-Order Optimality Measure. For optimset, the name is TolFun. See Current and Legacy Option Name Tables.
OutputFcn	Specify one or more user-defined functions that an optimization function calls at each iteration. Pass a function handle or a cell array of function handles. The default is none ([]). See Output Function.
PlotFcn	Plots various measures of progress while the algorithm executes; select from predefined plots or write your own. Pass a name, a function handle, or a cell array of names or function handles. For custom plot functions, pass function handles. The default is none ([]): 'optimplotx' plots the current point. 'optimplotfunccount' plots the function count. 'optimplotfval' plots the function value. 'optimplotconstrviolation' plots the maximum constraint violation. 'optimplotstepsize' plots the step size. For information on writing a custom plot function, see Plot Functions. For optimset, the name is PlotFcns. See Current and Legacy Option Name Tables.
RelLineSrchBnd	Relative bound (a real nonnegative scalar value) on the line search step length such that the total displacement in x satisfies |Δx(i)| ≤ relLineSrchBnd· max(|x(i)|,|typicalx(i)|). This option provides control over the magnitude of the displacements in x for cases in which the solver takes steps that it considers too large. The default is no bounds ([]).
RelLineSrchBndDuration	Number of iterations for which the bound specified in RelLineSrchBnd should be active (default is 1).
SpecifyConstraintGradient	Gradient for the user-defined constraints. When set to true, fminimax expects the constraint function to have four outputs, as described in nonlcon in Input Arguments. When set to the default false, fminimax estimates gradients of the nonlinear constraints by finite differences. For optimset, the name is GradConstr and the values are 'on' or 'off'. See Current and Legacy Option Name Tables.
SpecifyObjectiveGradient	Gradient for the user-defined objective function. See the preceding description of fun to see how to define the gradient in fun. Set to true to have fminimax use a user-defined gradient of the objective function. The default false causes fminimax to estimate gradients using finite differences. For optimset, the name is GradObj and the values are 'on' or 'off'. See Current and Legacy Option Name Tables.
StepTolerance	Termination tolerance on x, a positive scalar. The default value is 1e-6. See Tolerances and Stopping Criteria. For optimset, the name is TolX. See Current and Legacy Option Name Tables.
TolConSQP	Termination tolerance on inner iteration SQP constraint violation, a positive scalar. The default is 1e-6.
TypicalX	Typical x values. The number of elements in TypicalX is equal to the number of elements in x0, the starting point. The default value is ones(numberofvariables,1). fminimax uses TypicalX for scaling finite differences for gradient estimation.
UseParallel	When true, estimate gradients in parallel. Disable by setting to the default false. See Parallel Computing.

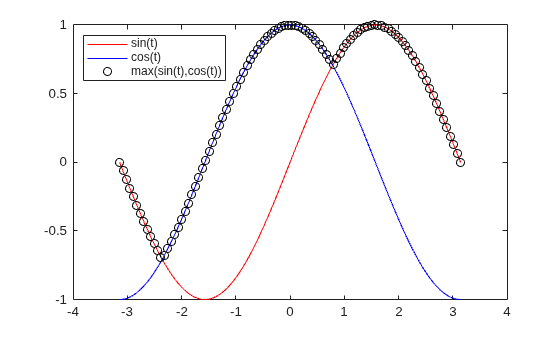

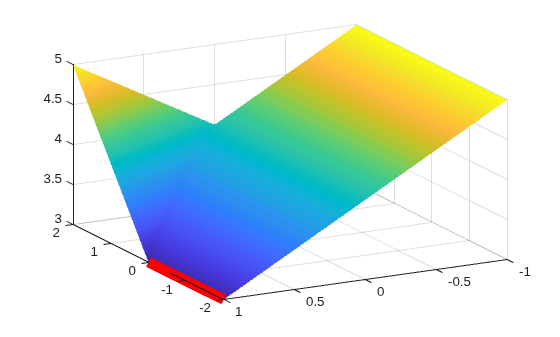

Examples

Find values of x that minimize the maximum value of

[f₁(x), f₂(x), f₃(x), f₄(x), f₅(x)]

where

$$\begin{array}{l}{f}_1(x)=2x_1^2+x_2^2-48x_1-40x_2+304,\\ f_2(x)=-x_1^2-3x_2^2,\\ f_3(x)=x_1+3x_2-18,\\ f_4(x)=-x_1-x_2,\\ f_5(x)=x_1+x_2-8.\end{array}$$

First, write a file that computes the five functions at x.

function f = myfun(x)
f(1)= 2*x(1)^2+x(2)^2-48*x(1)-40*x(2)+304;     % Objectives
f(2)= -x(1)^2 - 3*x(2)^2;
f(3)= x(1) + 3*x(2) -18;
f(4)= -x(1)- x(2);
f(5)= x(1) + x(2) - 8;

Next, invoke an optimization routine.

x0 = [0.1; 0.1];       % Make a starting guess at solution
[x,fval] = fminimax(@myfun,x0);

After seven iterations, the solution is

x,fval

x =
     4.0000
     4.0000
fval =
     0.0000  -64.0000  -2.0000  -8.0000  -0.0000

Notes

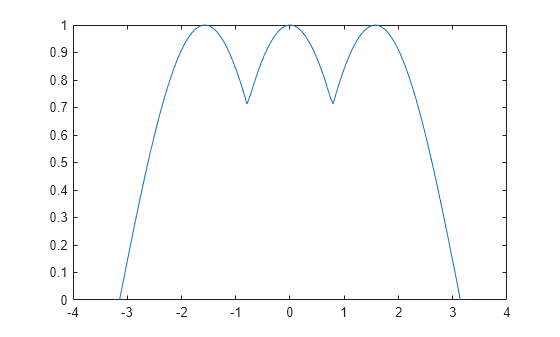

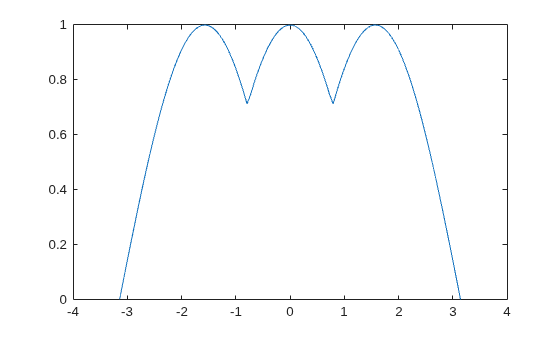

You can solve problems of the form

$$\underset{x}{\min }\underset{i}{\max }{G}_i(x),$$

where

$$G_i(x)=\{\begin{array}{ll}\left|F_i(x)\right|\hfill & 1\le i\le m\hfill \\ F_i(x)\hfill & i>m.\hfill \end{array}$$

Here m is the value of the AbsoluteMaxObjectiveCount option. The advantage of this formulation is you can minimize the absolute value of some components of F, even though the absolute value function is not smooth.

In order to use this option, reorder the elements of F, if necessary, so the first elements are those for which you want the minimum absolute value.

For example, consider the problem in Examples. Modify the problem to find the minimum of the maximum absolute values of all f_i(x). Solve this problem by invoking fminimax with the commands

x0 = [0.1; 0.1]; % Make a starting guess at the solution
options = optimoptions('fminimax','AbsoluteMaxObjectiveCount',5); % Minimize abs. values
[x,fval] = fminimax(@myfun,x0,...
                    [],[],[],[],[],[],[],options);

After seven iterations, the solution is

x =
     4.9256
     2.0796
fval =
    37.2356 -37.2356 -6.8357 -7.0052 -0.9948

Limitations

The function to be minimized must be continuous. fminimax might only give local solutions.

Algorithms

fminimax internally reformulates the minimax problem into an equivalent Nonlinear Linear Programming problem by appending additional (reformulation) constraints of the form F_i(x) ≤ γ to the constraints given in Equation, and then minimizing γ over x. fminimax uses a sequential quadratic programming (SQP) method [1] to solve this problem.

Modifications are made to the line search and Hessian. In the line search an exact merit function (see [2] and [4]) is used together with the merit function proposed by [3] and [5]. The line search is terminated when either merit function shows improvement. The function uses a modified Hessian that takes advantage of the special structure of this problem. Using optimoptions to set the MeritFunction option to'singleobj' uses the merit function and Hessian used in fmincon.

See also SQP Implementation for more details on the algorithm used and the types of procedures printed under the Procedures heading when you set the Display option to'iter'.

References

[1] Brayton, R. K., S. W. Director, G. D. Hachtel, and L. Vidigal, “A New Algorithm for Statistical Circuit Design Based on Quasi-Newton Methods and Function Splitting,” IEEE Trans. Circuits and Systems, Vol. CAS-26, pp. 784-794, Sept. 1979.

[2] Grace, A. C. W., “Computer-Aided Control System Design Using Optimization Techniques,” Ph.D. Thesis, University of Wales, Bangor, Gwynedd, UK, 1989.

[3] Han, S. P., “A Globally Convergent Method For Nonlinear Programming,” Journal of Optimization Theory and Applications, Vol. 22, p. 297, 1977.

[4] Madsen, K. and H. Schjaer-Jacobsen, “Algorithms for Worst Case Tolerance Optimization,” IEEE Trans. of Circuits and Systems, Vol. CAS-26, Sept. 1979.

[5] Powell, M. J. D., “A Fast Algorithm for Nonlinearly Constrained Optimization Calculations,” Numerical Analysis, ed. G. A. Watson, Lecture Notes in Mathematics, Vol. 630, Springer Verlag, 1978.

Extended Capabilities

Automatic Parallel Support

Accelerate code by automatically running computation in parallel using Parallel Computing Toolbox™.

To run in parallel, set the 'UseParallel' option to true.

options = optimoptions('solvername','UseParallel',true)

For more information, see Using Parallel Computing in Optimization Toolbox.
