initmesh

Create initial 2-D mesh

This page describes the legacy workflow. New features might not be compatible with the legacy workflow. For the corresponding step in the recommended workflow, see `generateMesh`.

Syntax

``[p,e,t] = initmesh(g)``
``[p,e,t] = initmesh(g,Name,Value)``

Description

example

````[p,e,t] = initmesh(g)` generates a triangular mesh for a 2-D geometry. The function uses a Delaunay triangulation algorithm.```

example

````[p,e,t] = initmesh(g,Name,Value)` generates a 2-D mesh using one or more `Name,Value` pair arguments.```

Examples

collapse all

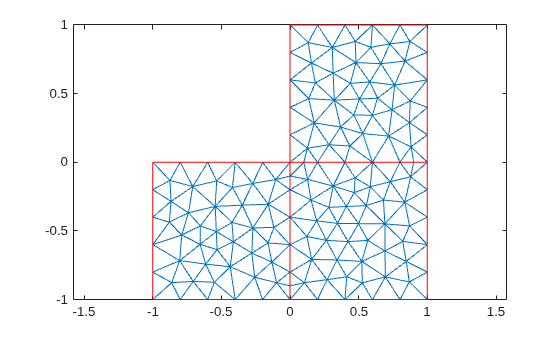

Generate a triangular mesh of the L-shaped membrane.

`[p,e,t] = initmesh("lshapeg");`

Plot the mesh.

`pdemesh(p,e,t)`

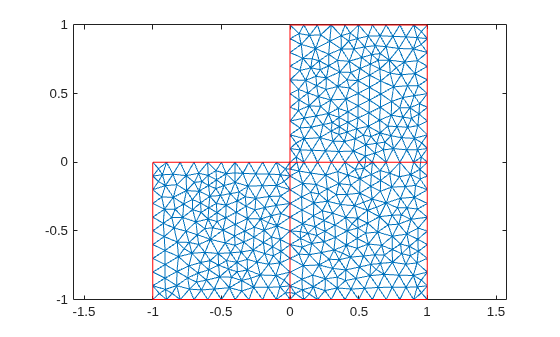

Generate a triangular mesh of the L-shaped membrane with the target maximum mesh edge length of 0.1.

`[p,e,t] = initmesh("lshapeg","Hmax",0.1);`

Plot the mesh.

`pdemesh(p,e,t)`

Input Arguments

collapse all

Geometry description, specified as a decomposed geometry matrix, a geometry function, or a handle to the geometry function. For details about a decomposed geometry matrix, see `decsg`. For details about a geometry function, see Parametrized Function for 2-D Geometry Creation.

A geometry function must return the same result for the same input arguments in every function call. Thus, it must not contain functions and expressions designed to return a variety of results, such as random number generators.

Data Types: `double` | `char` | `string` | `function_handle`

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `[p,e,t] = initmesh("lshapeg","Hmax",0.1);`

Target maximum mesh edge length, specified as the comma-separated pair consisting of `"Hmax"` and a positive real number.

`Hmax` is an approximate upper bound on the mesh edge lengths. `initmesh` estimates the default value of `Hmax` from overall dimensions of the geometry.

Small `Hmax` values let you create finer meshes, but mesh generation can take a very long time in this case. You can interrupt mesh generation by using Ctrl+C. Note that `initmesh` can take additional time to respond to the interrupt.

Example: `[p,e,t] = initmesh(g,"Hmax",0.25);`

Data Types: `double`

Mesh growth rate, specified as the comma-separated pair consisting of `"Hgrad"` and a number strictly greater than 1 and less than 2.

Example: `[p,e,t] = initmesh(g,"Hgrad",1.5);`

Data Types: `double`

Toggle to preserve bounding box, specified as the comma-separated pair consisting of `"Box"` and `"on"` or `"off"`. By turning on `"Box"` you can get a good idea of how the mesh generation algorithm works within the bounding box.

Example: `[p,e,t] = initmesh(g,"Box","on");`

Data Types: `char` | `string`

Toggle to use edge triangulation, specified as the comma-separated pair consisting of `"Init"` and `"on"` or `"off"`. By turning on `Init` you can see the initial triangulation of the boundaries. For example, use these commands to determine the subdomain number `n` of the point `xy`.

```[p,e,t] = initmesh(g,"Hmax",Inf,"Init","on"); [uxy,tn,a2,a3] = tri2grid(p,t,zeros(size(p,2)),x,y); n = t(4,tn); ```

If the point is outside the geometry, `tn` is `NaN`, and the command `n = t(4,tn)` results in a failure.

Data Types: `char` | `string`

Toggle to call `jigglemesh` after creating the mesh, specified as the comma-separated pair consisting of `"Jiggle"` and `"mean"`, `"minimum"``"on"`, or `"off"`.

• `"mean"` — call `jigglemesh` with the argument `"Opt"` set to `"mean"`.

• `"minimum"` — call `jigglemesh` with the argument `"Opt"` set to `"minimum"`.

• `"on"` — call `jigglemesh` with the argument `"Opt"` set to `"off"`.

• `"off"` — do not call `jigglemesh`.

Example: ```[p,e,t] = initmesh(g,"Jiggle","minimum");```

Data Types: `char` | `string`

Maximum number of iterations for `jigglemesh`, specified as the comma-separated pair consisting of `"JiggleIter"` and a positive integer.

Example: ```[p,e,t] = initmesh(g,"Jiggle","on","JiggleIter",50);```

Data Types: `double`

Algorithm for generating initial mesh, specified as the comma-separated pair consisting of `"MesherVersion"` and either `"R2013a"` or `"preR2013a"`. The `"R2013a"` algorithm runs faster, and can triangulate more geometries than the `"preR2013a"` algorithm. Both algorithms use Delaunay triangulation.

Data Types: `char` | `string`

Output Arguments

collapse all

Mesh points, returned as a 2-by-`Np` matrix. `Np` is the number of points (nodes) in the mesh. Column `k` of `p` consists of the x-coordinate of point `k` in `p(1,k)` and the y-coordinate of point `k` in `p(2,k)`. For details, see Mesh Data as [p,e,t] Triples.

Mesh edges, returned as a 7-by-`Ne` matrix, where `Ne` is the number of boundary edges in the mesh. An edge is a pair of points in `p` containing a boundary between subdomains, or containing an outer boundary. For details, see Mesh Data as [p,e,t] Triples.

Mesh elements, returned as a 4-by-`Nt` matrix. `Nt` is the number of triangles in the mesh.

The `t(i,k)`, with `i` ranging from 1 through `end - 1`, contain indices to the corner points of element `k`. For details, see Mesh Data as [p,e,t] Triples. The last row, `t(end,k)`, contains the subdomain number of the element.

References

[1] George, P. L. Automatic Mesh Generation — Application to Finite Element Methods. Wiley, 1991.
