# findStructuralBC

Find structural boundary conditions and boundary loads assigned to geometric region

## Syntax

``sbca = findStructuralBC(structuralmodel.BoundaryConditions,RegionType,RegionID)``

## Description

example

````sbca = findStructuralBC(structuralmodel.BoundaryConditions,RegionType,RegionID)` returns the structural boundary conditions and boundary loads assigned to the region specified by `RegionType` and `RegionID`. The function returns structural boundary conditions assigned by `structuralBC` and boundary loads assigned by `structuralBoundaryLoad`.```

## Examples

collapse all

Find the structural boundary conditions for the faces of a 3-D geometry.

Create a structural model and include a block geometry.

`structuralmodel = createpde('structural','static-solid');`

Include the block geometry in the model and plot the geometry.

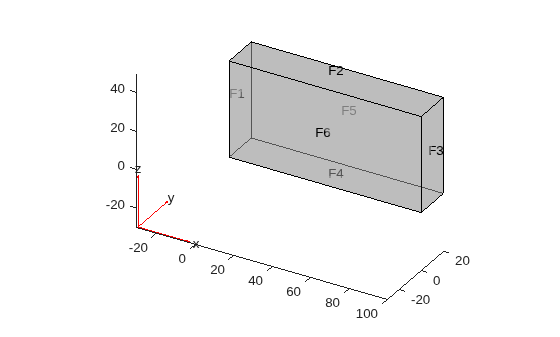

```importGeometry(structuralmodel,'Block.stl'); pdegplot(structuralmodel,'FaceLabels','on','FaceAlpha',0.5)```

Specify the surface traction on face 1 of the block.

`structuralBoundaryLoad(structuralmodel,'Face',1,'SurfaceTraction',[100;10;300]);`

Specify the pressure on face 3 of the block.

`structuralBoundaryLoad(structuralmodel,'Face',3,'Pressure',300);`

Apply free constraint on faces 5 and 6 of the block.

`structuralBC(structuralmodel,'Face',[5,6],'Constraint','free');`

Check the boundary condition specification for faces 1 and 3.

```sbca = findStructuralBC(structuralmodel.BoundaryConditions,'Face',[1,3]); sbcaFace1 = sbca(1)```
```sbcaFace1 = StructuralBC with properties: RegionType: 'Face' RegionID: 1 Vectorized: 'off' Boundary Constraints and Enforced Displacements Displacement: [] XDisplacement: [] YDisplacement: [] ZDisplacement: [] Constraint: [] Radius: [] Reference: [] Boundary Loads Force: [] SurfaceTraction: [3x1 double] Pressure: [] TranslationalStiffness: [] ```
`sbcaFace3 = sbca(2)`
```sbcaFace3 = StructuralBC with properties: RegionType: 'Face' RegionID: 3 Vectorized: 'off' Boundary Constraints and Enforced Displacements Displacement: [] XDisplacement: [] YDisplacement: [] ZDisplacement: [] Constraint: [] Radius: [] Reference: [] Boundary Loads Force: [] SurfaceTraction: [] Pressure: 300 TranslationalStiffness: [] ```

Check the boundary condition specification for faces 5 and 6.

```sbca = findStructuralBC(structuralmodel.BoundaryConditions,'Face',[5,6]); sbcaFace5 = sbca(1)```
```sbcaFace5 = StructuralBC with properties: RegionType: 'Face' RegionID: [5 6] Vectorized: 'off' Boundary Constraints and Enforced Displacements Displacement: [] XDisplacement: [] YDisplacement: [] ZDisplacement: [] Constraint: "free" Radius: [] Reference: [] Boundary Loads Force: [] SurfaceTraction: [] Pressure: [] TranslationalStiffness: [] ```
`sbcaFace6 = sbca(2)`
```sbcaFace6 = StructuralBC with properties: RegionType: 'Face' RegionID: [5 6] Vectorized: 'off' Boundary Constraints and Enforced Displacements Displacement: [] XDisplacement: [] YDisplacement: [] ZDisplacement: [] Constraint: "free" Radius: [] Reference: [] Boundary Loads Force: [] SurfaceTraction: [] Pressure: [] TranslationalStiffness: [] ```

## Input Arguments

collapse all

Structural boundary conditions of the model, specified as the `BoundaryConditions` property of a `StructuralModel` object.

Geometric region type, specified as `'Edge'` for a 2-D model or `'Face'` for a 3-D model.

Example: `findStructuralBC(structuralmodel.BoundaryConditions,'Edge',1)`

Data Types: `char` | `string`

Geometric region ID, specified as a vector of positive integers. Find the region IDs by using `pdegplot`.

Example: `findStructuralBC(structuralmodel.BoundaryConditions,'Face',1:3)`

Data Types: `double`

## Output Arguments

collapse all

Structural boundary conditions and boundary loads assignment, returned as a `StructuralBC` object. For details, see StructuralBC Properties.
