SurfaceManager

Manage surfaces in radar scenario

Since R2022a

Description

The SurfaceManager object lists the surfaces in a radar scenario, radarScenario. You can enable or disable occlusion by surfaces in the radar scenario. The occlusion object function determines if any surfaces occlude the line of sight between two points. Use the height object function to query the height of surfaces at any location in the scenario.

Creation

Use the landSurface object function to create LandSurface objects. Use seaSurface object function to create SeaSurface objects. Obtain the SurfaceManager object from the SurfaceManager property of the radarScenario object.

Properties

UseOcclusion — Enable line-of-sight occlusion by surfaces

true (default) | false

Enable line-of-sight occlusion by surfaces, specified as true or false.

When specified as:

• true — The scenario models the occlusion of the line-of-sight by surfaces between points. In this case, the detect (Sensor Fusion and Tracking Toolbox) object function of the radarScenario object or the detect (Sensor Fusion and Tracking Toolbox) object function of the Platform (Sensor Fusion and Tracking Toolbox) object accounts for surface occlusion.

  Note

  If the IsEarthCentered property of the radarScenario object is specified as true, selecting this option also enables horizon occlusion based on the WGS84 Earth model.

• false — The scenario does not models the occlusion of the line-of-sight due to ground surfaces or the WGS84 Earth model.

Surfaces — Surfaces in radar scenario

array of LandSurface or SeaSurface objects

Surfaces in radar scenario, specified as an array of LandSurface and SeaSurface objects.

You can add land surfaces to a radar scenario using the landSurface and sea surfaces using the seaSurface object function.

Object Functions

height	Height of point on surface
occlusion	Test for occlusion of point by a surface

Examples

Create Land Surface from DTED File

Create a radar scenario and specify its IsEarthCentered property as true to use DTED file.

scene = radarScenario(IsEarthCentered = true);

Model the reflectivity as a constant gamma surface.

refl = surfaceReflectivityLand(Model = 'ConstantGamma',Gamma = -20);

Add a 0.1-by-0.1 degree land surface derived from a DTED file.

bdry = [39.5 39.6;-105.51 -105.41];
srf = landSurface(scene,Terrain = 'n39_w106_3arc_v2.dt1', ...
    Boundary = bdry,RadarReflectivity = refl)

srf =
  LandSurface with properties:

    RadarReflectivity: [1x1 surfaceReflectivityLand]
      ReflectivityMap: 1
      ReferenceHeight: 0
             Boundary: [2x2 double]
              Terrain: 'n39_w106_3arc_v2.dt1'

mgr = scene.SurfaceManager

mgr =
  SurfaceManager with properties:

    UseOcclusion: 1
        Surfaces: [1x1 radar.scenario.LandSurface]

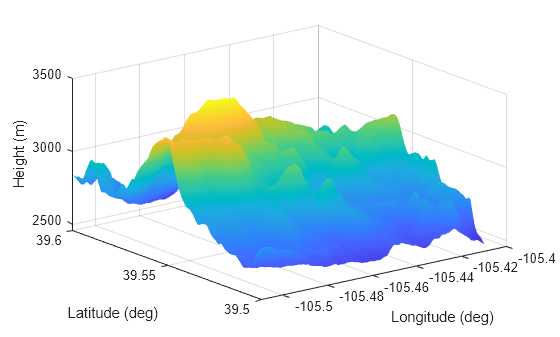

Plot the surface height.

x = linspace(srf.Boundary(2,1),srf.Boundary(2,2),201);
y = linspace(srf.Boundary(1,1),srf.Boundary(1,2),201);
[X,Y] = meshgrid(x,y);
X1 = X(:)';
Y1 = Y(:)';
H = height(srf,[Y1;X1]);
H = reshape(H,length(x),length(y));
surf(x,y,H)
shading interp
ylabel('Latitude (deg)')
xlabel('Longitude (deg)')
zlabel('Height (m)')

Version History

Introduced in R2022a
