# Building and Manipulating Uncertain Models

This example shows how to use Robust Control Toolbox™ to build uncertain state-space models and analyze the robustness of feedback control systems with uncertain elements.

We will show how to specify uncertain physical parameters and create uncertain state-space models from these parameters. You will see how to evaluate the effects of random and worst-case parameter variations using the functions `usample`

and `robstab`

.

### Two-Cart and Spring System

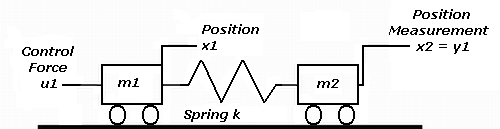

In this example, we use the following system consisting of two frictionless carts connected by a spring `k`

:

**Figure 1:** Two-cart and spring system.

The control input is the force `u1`

applied to the left cart. The output to be controlled is the position `y1`

of the right cart. The feedback control is of the following form:

$${u}_{1}=C(s)(r-{y}_{1})$$

In addition, we use a triple-lead compensator:

$$C(s)=100(s+1{)}^{3}/(0.001s+1{)}^{3}$$

We create this compensator using this code:

s = zpk('s'); % The Laplace 's' variable C = 100*ss((s+1)/(.001*s+1))^3;

### Block Diagram Model

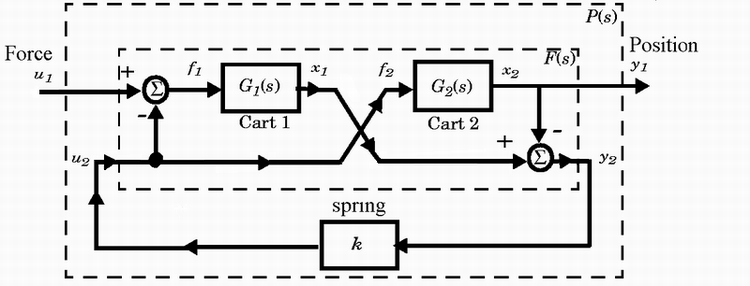

The two-cart and spring system is modeled by the block diagram shown below.

**Figure 2:** Block diagram of two-cart and spring model.

### Uncertain Real Parameters

The problem of controlling the carts is complicated by the fact that the values of the spring constant `k`

and cart masses `m1,m2`

are known with only 20% accuracy: $$k=1.0\pm 20\%$$ , $$m1=1.0\pm 20\%$$ , and $$m2=1.0\pm 20\%$$. To capture this variability, we will create three uncertain real parameters using the `ureal`

function:

k = ureal('k',1,'percent',20); m1 = ureal('m1',1,'percent',20); m2 = ureal('m2',1,'percent',20);

### Uncertain Cart Models

We can represent the carts models as follows:

$${G}_{1}(s)=\frac{1}{{m}_{1}{s}^{2}},\phantom{\rule{0.2777777777777778em}{0ex}}\phantom{\rule{0.2777777777777778em}{0ex}}\phantom{\rule{0.2777777777777778em}{0ex}}{G}_{2}(s)=\frac{1}{{m}_{2}{s}^{2}}$$

Given the uncertain parameters `m1`

and `m2`

, we will construct uncertain state-space models (USS) for G1 and G2 as follows:

G1 = 1/s^2/m1; G2 = 1/s^2/m2;

### Uncertain Model of a Closed-Loop System

First we'll construct a plant model `P`

corresponding to the block diagram shown above (`P`

maps u1 to y1):

```
% Spring-less inner block F(s)
F = [0;G1]*[1 -1]+[1;-1]*[0,G2]
```

F = Uncertain continuous-time state-space model with 2 outputs, 2 inputs, 4 states. The model uncertainty consists of the following blocks: m1: Uncertain real, nominal = 1, variability = [-20,20]%, 1 occurrences m2: Uncertain real, nominal = 1, variability = [-20,20]%, 1 occurrences Type "F.NominalValue" to see the nominal value, "get(F)" to see all properties, and "F.Uncertainty" to interact with the uncertain elements.

Connect with the spring k

P = lft(F,k)

P = Uncertain continuous-time state-space model with 1 outputs, 1 inputs, 4 states. The model uncertainty consists of the following blocks: k: Uncertain real, nominal = 1, variability = [-20,20]%, 1 occurrences m1: Uncertain real, nominal = 1, variability = [-20,20]%, 1 occurrences m2: Uncertain real, nominal = 1, variability = [-20,20]%, 1 occurrences Type "P.NominalValue" to see the nominal value, "get(P)" to see all properties, and "P.Uncertainty" to interact with the uncertain elements.

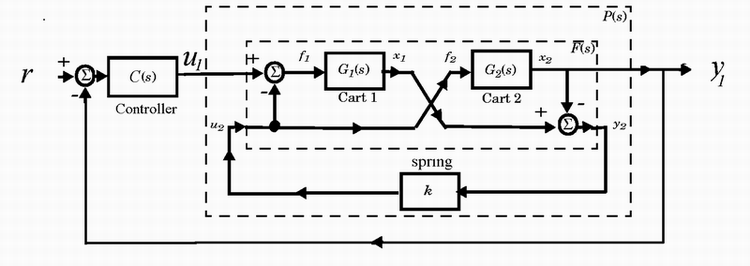

The feedback control u1 = C*(r-y1) operates on the plant `P`

as shown below:

**Figure 3:** Uncertain model of a closed-loop system.

We'll use the `feedback`

function to compute the closed-loop transfer from r to y1.

```
% Uncertain open-loop model is
L = P*C
```

L = Uncertain continuous-time state-space model with 1 outputs, 1 inputs, 7 states. The model uncertainty consists of the following blocks: k: Uncertain real, nominal = 1, variability = [-20,20]%, 1 occurrences m1: Uncertain real, nominal = 1, variability = [-20,20]%, 1 occurrences m2: Uncertain real, nominal = 1, variability = [-20,20]%, 1 occurrences Type "L.NominalValue" to see the nominal value, "get(L)" to see all properties, and "L.Uncertainty" to interact with the uncertain elements.

Uncertain closed-loop transfer from r to y1 is

T = feedback(L,1)

T = Uncertain continuous-time state-space model with 1 outputs, 1 inputs, 7 states. The model uncertainty consists of the following blocks: k: Uncertain real, nominal = 1, variability = [-20,20]%, 1 occurrences m1: Uncertain real, nominal = 1, variability = [-20,20]%, 1 occurrences m2: Uncertain real, nominal = 1, variability = [-20,20]%, 1 occurrences Type "T.NominalValue" to see the nominal value, "get(T)" to see all properties, and "T.Uncertainty" to interact with the uncertain elements.

Note that since `G1`

and `G2`

are uncertain, both `P`

and `T`

are uncertain state-space models.

### Extracting the Nominal Plant

The nominal transfer function of the plant is

Pnom = zpk(P.nominal)

Pnom = 1 ------------- s^2 (s^2 + 2) Continuous-time zero/pole/gain model.

### Nominal Closed-Loop Stability

Next, we evaluate the nominal closed-loop transfer function `Tnom`

, and then check that all the poles of the nominal system have negative real parts:

Tnom = zpk(T.nominal); maxrealpole = max(real(pole(Tnom)))

maxrealpole = -0.8232

### Robust Stability Margin

Will the feedback loop remain stable for all possible values of `k,m1,m2`

in the specified uncertainty range? We can use the `robstab`

function to answer this question rigorously.

% Show report and compute sensitivity opt = robOptions('Display','on','Sensitivity','on'); [StabilityMargin,wcu] = robstab(T,opt);

Computing peak... Percent completed: 100/100 System is robustly stable for the modeled uncertainty. -- It can tolerate up to 288% of the modeled uncertainty. -- There is a destabilizing perturbation amounting to 289% of the modeled uncertainty. -- This perturbation causes an instability at the frequency 575 rad/seconds. -- Sensitivity with respect to each uncertain element is: 12% for k. Increasing k by 25% decreases the margin by 3%. 47% for m1. Increasing m1 by 25% decreases the margin by 11.8%. 47% for m2. Increasing m2 by 25% decreases the margin by 11.8%.

The report indicates that the closed loop can tolerate up to three times as much variability in `k,m1,m2`

before going unstable. It also provides useful information about the sensitivity of stability to each parameter. The variable `wcu`

contains the smallest destabilizing parameter variations (relative to the nominal values).

wcu

`wcu = `*struct with fields:*
k: 1.5773
m1: 0.4227
m2: 0.4227

### Worst-Case Performance Analysis

Note that the peak gain across frequency of the closed-loop transfer `T`

is indicative of the level of overshoot in the closed-loop step response. The closer this gain is to 1, the smaller the overshoot. We use `wcgain`

to compute the worst-case gain `PeakGain`

of `T`

over the specified uncertainty range.

[PeakGain,wcu] = wcgain(T); PeakGain

`PeakGain = `*struct with fields:*
LowerBound: 1.0474
UpperBound: 1.0731
CriticalFrequency: 7.1382

Substitute the worst-case parameter variation `wcu`

into `T`

to compute the worst-case closed-loop transfer `Twc`

.

`Twc = usubs(T,wcu); % Worst-case closed-loop transfer T`

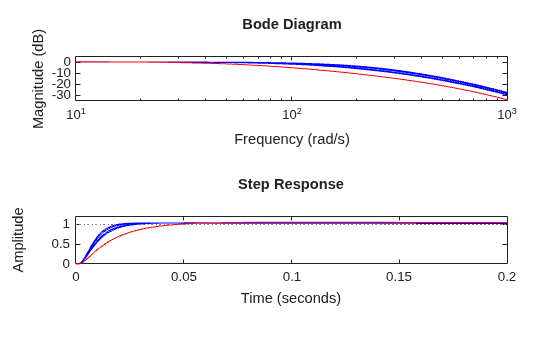

Finally, pick from random samples of the uncertain parameters and compare the corresponding closed-loop transfers with the worst-case transfer `Twc`

.

Trand = usample(T,4); % 4 random samples of uncertain model T clf subplot(211), bodemag(Trand,'b',Twc,'r',{10 1000}); % plot Bode response subplot(212), step(Trand,'b',Twc,'r',0.2); % plot step response

**Figure 4:** Bode diagram and step response.

In this analysis, we see that the compensator C performs robustly for the specified uncertainty on k,m1,m2.
