Convert a ROS `Pose` Message to a Homogeneous Transformation

This example uses:

This model subscribes to a Pose message on the ROS network and converts it to a homogeneous transformation. Use bus selectors to extract the rotation and translation vectors. The Coordinate Transformation Conversion block takes the rotation vector (euler angles) and translation vector in and gives the homogeneous transformation for the message.

Connect to a ROS network. Create a publisher for the "/pose" topic using a "geometry_msgs/Pose" message type. Use struct message format for better efficiency.

rosinit

Launching ROS Core...
Status before launching ros core :0
result before launching ros core:     887 ?        Ssl   20:33 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1197 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 491286 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491316 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491329 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491380 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 492494 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 593 -1 -mvmOutputPipe -1 606
 494661 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 494663 pts/2    S+     0:00 grep -E ros|python

Done in 0.38063 seconds.
* Inside getProcessPID function *
Process Name: /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53040 -w 3
Status before getting PID :0
Result before getting PID :    887 ?        Ssl   20:33 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1197 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 491286 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491316 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491329 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491380 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 492494 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 593 -1 -mvmOutputPipe -1 606
 494666 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3175293_1480055/tp49450896_031a_4587_8a1b_6fe42730338c/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53040 -w 3
 494678 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53040 -w 3
 494686 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 494688 pts/2    S+     0:00 grep -E ros|python

Result:  494666 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3175293_1480055/tp49450896_031a_4587_8a1b_6fe42730338c/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53040 -w 3

Status: 0
PID obtained: 494666
Status after getting PID :0
Result after getting PID :    887 ?        Ssl   20:33 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1197 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 491286 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491316 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491329 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491380 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 492494 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 593 -1 -mvmOutputPipe -1 606
 494666 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3175293_1480055/tp49450896_031a_4587_8a1b_6fe42730338c/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53040 -w 3
 494678 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53040 -w 3
 494693 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 494695 pts/2    S+     0:00 grep -E ros|python

* Exiting getProcessPID function *
Status after launching ros core :0
result after launching ros core:     887 ?        Ssl   20:33 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1197 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 491286 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491316 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491329 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491380 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 492494 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 593 -1 -mvmOutputPipe -1 606
 494666 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3175293_1480055/tp49450896_031a_4587_8a1b_6fe42730338c/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53040 -w 3
 494678 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53040 -w 3
 494696 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 494698 pts/2    S+     0:00 grep -E ros|python

Status before deleting node :0
Result before deleting node :    887 ?        Ssl   20:33 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1197 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 491286 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491316 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491329 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491380 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 492494 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 593 -1 -mvmOutputPipe -1 606
 494666 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3175293_1480055/tp49450896_031a_4587_8a1b_6fe42730338c/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53040 -w 3
 494678 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53040 -w 3
 494699 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 539 -1 -mvmOutputPipe -1 610
 494714 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 494716 pts/2    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    887 ?        Ssl   20:33 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1197 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 491286 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491316 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491329 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491380 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 492494 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 593 -1 -mvmOutputPipe -1 606
 494666 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3175293_1480055/tp49450896_031a_4587_8a1b_6fe42730338c/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53040 -w 3
 494678 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53040 -w 3
 494722 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 494724 pts/2    S+     0:00 grep -E ros|python

Initializing ROS master on http://172.23.76.173:53040.
Initializing global node /matlab_global_node_14581 with NodeURI http://dcc3348497glnxa64:44951/ and MasterURI http://localhost:53040.

[pub,msg] = rospublisher("/pose","geometry_msgs/Pose","DataFormat","struct");

Specify the detailed pose information. The message contains a translation (Position) and quaternion (Orientation) to express the pose. Send the message via the publisher.

msg.Position.X = 1;
msg.Position.Y = 2;
msg.Position.Z = 3;
msg.Orientation.X = sqrt(2)/2;
msg.Orientation.Y = sqrt(2)/2;
msg.Orientation.Z = 0;
msg.Orientation.W = 0;

send(pub,msg)

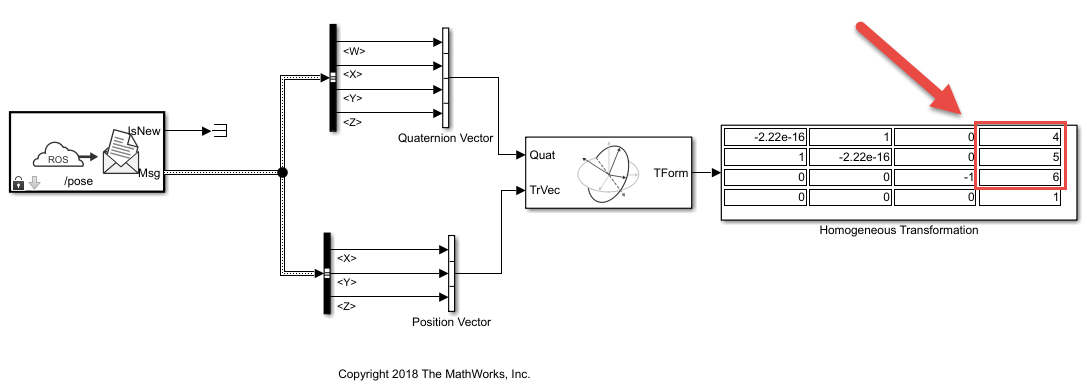

Open the "pose_to_transformation_model" model. This model subscribes to the "/pose" topic in ROS. The bus selectors extract the quaternion and position vectors from the ROS message. The Coordinate Transformation Conversion block then converts the position (translation) and quaternion to a homogeneous transformation.

For more details, inspect the bus selector in the model to see how the message information is extracted.

open_system("pose_to_transformation_model.slx")

Run the model to display the homogeneous transformation.

Modify the position or orientation components of the message. Resend the message and run model to see the change in the homogeneous transformation.

msg.Position.X = 4;
msg.Position.Y = 5;
msg.Position.Z = 6;
send(pub,msg)

Shutdown the ROS network.

rosshutdown

Shutting down global node /matlab_global_node_14581 with NodeURI http://dcc3348497glnxa64:44951/ and MasterURI http://localhost:53040.
Status before deleting node :0
Result before deleting node :    887 ?        Ssl   20:33 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1197 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 491286 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491316 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491329 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491380 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 492494 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 593 -1 -mvmOutputPipe -1 606
 494666 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3175293_1480055/tp49450896_031a_4587_8a1b_6fe42730338c/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53040 -w 3
 494678 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53040 -w 3
 494725 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros1server -mvmInputPipe 593 -1 -mvmOutputPipe -1 610
 494791 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 494793 pts/2    S+     0:00 grep -E ros|python

Status after deleting node :0
Result after deleting node :    887 ?        Ssl   20:33 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1197 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 491286 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491316 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491329 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491380 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 492494 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 593 -1 -mvmOutputPipe -1 606
 494666 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3175293_1480055/tp49450896_031a_4587_8a1b_6fe42730338c/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53040 -w 3
 494678 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53040 -w 3
 494800 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 494802 pts/2    S+     0:00 grep -E ros|python

Shutting down ROS master on http://172.23.76.173:53040.
Status before deleting core :0
Result before deleting core :    887 ?        Ssl   20:33 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1197 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 491286 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491316 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491329 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491380 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 492494 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 593 -1 -mvmOutputPipe -1 606
 494666 pts/2    S      0:00 bash /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/mlroscpp/util/+ros/+internal/runroscmd.sh   /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1 /tmp/Bdoc25b_3175293_1480055/tp49450896_031a_4587_8a1b_6fe42730338c/ros1/glnxa64/venv /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/bin/glnxa64 rosmaster --core -p 53040 -w 3
 494678 pts/2    Sl     0:00 python3 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/sys/ros1/glnxa64/ros1/bin/rosmaster --core -p 53040 -w 3
 494803 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 494805 pts/2    S+     0:00 grep -E ros|python

* Inside killProcessByPID function *
PID of core to be killed: 494666
Status after Child Process Killed: 0
Result after Child Process Killed:
Status after deleting core :0
Result after deleting core :    887 ?        Ssl   20:33 /usr/bin/python3 /usr/bin/mta-sts-daemon --config /etc/mta-sts-daemon.yml
   1197 ?        Ssl    0:00 /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
 491286 ?        Ss     0:00 /bin/sh /usr/bin/xvfb-run -a -s -screen 0 1280x1024x24 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491316 ?        S      0:00 /bin/sh -c export TMPDIR=/tmp/Bdoc25b_3175293_1480055 COMPONENT=examples/ros ;   cd /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/matlab/examples/ros ; //mathworks/hub/bat/common/bin/mw   sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491329 ?        S      0:00 sh ../../tools/build_using_mlpath/mlenv --use-scoped-paths 1 --scoped-cppms-file /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c/scoped_cppms_modules.txt --scoped-cppms-envvar MW_SCOPED_CPPMICROSERVICES_MODULES --tag bml --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --paths /mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MATLAB_LOG_DIR=/mathworks/devel/bat/Bdoc25b/logs/3175293/build.glnxa64.3175293.r000/examples/ros/build.glnxa64.3175293.r000.bml.1b2cf5d6e3975ccf240066d07cb1ec5c MAKEFLAGS= DISPLAY=:0 MESA_BACK_BUFFER=Pixmap perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 491380 ?        S      0:00 perl ../../tools/build_using_matlab/mlrun --verbose --runnable /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab --display mwtools.liveCodeToDocbook ../../derived/glnxa64/examples/ros/mlx_to_docbook1.txt ../../derived/glnxa64/examples/ros examples/ros ../../help/examples/ros/glnxa64 //mathworks/hub/3rdparty/R2021a/6299939/glnxa64/pngquant 1
 492494 ?        Sl     0:00 /mathworks/devel/bat/filer/batfs2566-0/Bdoc25b.3175293.Bdoc25b.3168145.pass/build/runnable/matlab/toolbox/ros/bin/glnxa64/libmwros2server -mvmInputPipe 593 -1 -mvmOutputPipe -1 606
 494810 pts/2    S+     0:00 /bin/bash -c ps ax | grep -E 'ros|python'
 494812 pts/2    S+     0:00 grep -E ros|python

* Exiting killProcessByPID function *
