mlreportgen.chart.Border Class

Namespace: mlreportgen.chart

Border of a chart shape

Since R2026b

Description

Use an object of the mlreportgen.chart.Border class to define a border for a shape.

The mlreportgen.chart.Border class is a handle class.

Class Attributes

HandleCompatible	true
ConstructOnLoad	true

For information on class attributes, see Class Attributes.

Creation

Description

borderObj = mlreportgen.chart.Border creates a Border object that is black.

borderObj = mlreportgen.chart.Border(color) creates a Border object of the color specified by the color argument.

Input Arguments

color — Color of border

character vector | string scalar

Color of the border, specified as a character vector or string scalar that contains a CSS color name, hexadecimal RGB value, or decimal RGB value.

Format	Value
CSS color name	Specify a CSS color name. For a list of CSS color names, see https://www.w3.org/wiki/CSS/Properties/color/keywords.
Hexadecimal RGB value	Use the format "#RRGGBB". Use # as the first character and two-digit hexadecimal numbers for the red, green, and blue values. You can use uppercase or lowercase letters.
Decimal RGB color value	Use the format "rgb(r,g,b)", where r, g, and b are comma-separated positive integers that specify the red, green, and blue values, respectively. Each value range must be between 0 and 255.

This argument sets the Color property.

Example: "red" specifies a red color using a CSS color name.

Example: "#0000ff" specifies a blue color using a hexadecimal RGB value.

Example: "rgb(128,0,128)" specifies a purple color using a decimal RGB color value.

Properties

Fill — Fill applied to chart element object

[0x0] mlreportgen.chart.Fill object (default) | mlreportgen.chart.SolidFill object | mlreportgen.chart.GradientFill object

Fill applied to the chart element object, specified as an object of these fill classes:

• mlreportgen.chart.SolidFill

• mlreportgen.chart.GradientFill

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Width — Width of chart element object

'' (default) | character vector | string scalar

Width of the chart element object, specified as a character vector or string scalar that contains a number followed by an abbreviation for a unit of measurement. Valid abbreviations are:

• "px" — Pixels

• "cm" — Centimeters

• "in" — Inches

• "mm" — Millimeters

• "pc" — Picas

• "pt" — Points

You can also specify pixels by omitting the unit. For example, "5" specifies 5 pixels.

Example: "5in" specifies five inches

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Data Types: char | string

LineDashType — Line dash type

Solid (default) | mlreportgen.chart.LineDashType object

Line dash type, specified as an mlreportgen.chart.LineDashType object of one of these enumerations:

Line Dash	Description
mlreportgen.chart.LineDashType.Solid	Solid line
mlreportgen.chart.LineDashType.RoundDot	Dotted line with round dots
mlreportgen.chart.LineDashType.SquareDot	Dotted line with square dots
mlreportgen.chart.LineDashType.DashDot	Line with alternating dots and dashes
mlreportgen.chart.LineDashType.LongDash	Dashed line
mlreportgen.chart.LineDashType.LongDashDot	Line with alternating dots and dashes
mlreportgen.chart.LineDashType.LongDashDotDot	Line with alternating double dots and a dash

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

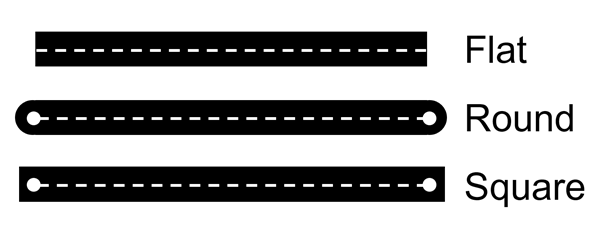

LineCapType — Line cap type

Flat (default) | mlreportgen.chart.LineCapType object

Line cap type, specified as an mlreportgen.chart.LineCapType object of one of these enumerations:

Line Cap	Description
mlreportgen.chart.LineCapType.Flat	Line ends exactly at the endpoint with a flat edge
mlreportgen.chart.LineCapType.Round	Line midpoint ends exactly at the endpoint with a half round end that extends past the endpoint
mlreportgen.chart.LineCapType.Square	Line midpoint ends exactly at the endpoint with a square end that extends past the endpoint

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

LineJoinType — Line join type

Rounded (default) | mlreportgen.chart.LineJoinType object

Line join type, specified as an mlreportgen.chart.LineJoinType object of one of these enumerations:

Line Cap	Description
mlreportgen.chart.LineJoinType.Bevel	Cuts off the corner of the line join with a straight line to form a flat edge
mlreportgen.chart.LineJoinType.Rounded	Adds a circular arc between the lines to form a rounded corner
mlreportgen.chart.LineJoinType.Miter	Extends the outer edge of the lines to connect at a single point to form a sharp corner

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

LineCompoundType — Line compound type

Simple (default) | mlreportgen.chart.LineCompoundType object

Line compound type, specified as an mlreportgen.chart.LineCompoundType object of one of these enumerations:

Line Compound	Description
mlreportgen.chart.LineCompoundType.Simple	Single line
mlreportgen.chart.LineCompoundType.Double	Double line
mlreportgen.chart.LineCompoundType.ThinThick	Thin line, then thick line
mlreportgen.chart.LineCompoundType.ThickThin	Thick line, then thin line
mlreportgen.chart.LineCompoundType.Triple	Triple line

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true

Version History

Introduced in R2026b
