mlreportgen.dom.Image Class

Namespace: mlreportgen.dom

Image to include in report

Description

Use an object of the mlreportgen.dom.Image class to include an image in a report.

The mlreportgen.dom.Image class is a handle class.

Class Attributes

ConstructOnLoad	true
HandleCompatible	true

For information on class attributes, see Class Attributes.

Creation

Description

imageObj = mlreportgen.dom.Image(imagePath) creates an mlreportgen.dom.Image object with the Path property set to the path of an image.

Note

The contents of the specified image file are copied into the output document when the document is closed. Do not delete or overwrite the image file before closing the document. If you create an image file and the corresponding mlreportgen.dom.Image object in a loop, for each loop iteration, use a unique file name for the image file.

Input Arguments

imagePath — Path of image file

character vector | string scalar

Path of an image file to include in a report, specified as a character vector or string scalar. You can use the image formats in the table.

Image Format	File Extension	Supported in HTML	Supported in Word	Supported in PDF
Windows® bitmap	.bmp	Yes	Yes	Yes
Windows metafile	.emf	No	Yes	No
Graphics Interchange Format	.gif	Yes	Yes	Yes
JPEG image	.jpg	Yes	Yes	Yes
PDF	.pdf	No	No	Yes
Portable Network Graphics	.png	Yes	Yes	Yes
Scalable Vector Graphics	.svg	Yes	Yes	Yes
TIFF image	.tif	No	Yes	Yes

Properties

Path — Path of image file

character vector

Path of the image file, specified as a character vector. This property is read-only.

Height — Image height

character vector | string scalar

Image height, specified as a character vector or string scalar that consists of a number followed by an abbreviation for a unit of measurement. For example, "2in" specifies two inches. Valid abbreviations are:

• px — pixels

• cm — centimeters

• in — inches

• mm — millimeters

• pc — picas

• pt — points

• % — percent

When the Image object is created, the Height property is set to a value based on the image file specified by the Path property.

Width — Image width

character vector | string scalar

Image width, specified as a character vector or string scalar that consists of a number followed by an abbreviation for a unit of measurement. For example, "2in" specifies two inches. Valid abbreviations are:

• px — pixels

• cm — centimeters

• in — inches

• mm — millimeters

• pc — picas

• pt — points

• % — percent

When the Image object is created, the Width property is set to a value based on the image file specified by the Path property.

Map — Map of hyperlink areas in image

mlreportgen.dom.ImageMap object

Map of hyperlink areas in this image, specified as an mlreportgen.dom.ImageMap object. The Map property applies to only HTML and PDF reports.

See Create Image Maps.

EmbedSVG — Whether to embed an SVG file

false (default) | true

Whether to embed an SVG file, specified as true or false. When this property is false, the report renders SVG images using CSS. When this property is set to false, you cannot search for images. If true, the generated HTML report file includes the generated HTML report file includes a copy of the SVG file. When this property is true, you can search for images, but SVG images that rely on CSS formatting may render incorrectly.

Note

The EmbedSVG property applies only to HTML reports.

StyleName — Name of image style

character vector | string scalar

Name of image style, specified as a character vector or string scalar. The StyleName value must be a style in the style sheet of the document or document part to which this image is appended. Format objects in the Style property of this Image object override the style in the style sheet.

Note

The StyleName property is ignored for Word output.

Style — Format specification

{} (default) | array of format objects

Format specification for this document element object, specified as an array of format objects. The formats specified by this property override corresponding formats specified by the StyleName property of this element. Formats that do not apply to this element are ignored.

Attributes:

NonCopyable

true

Data Types: cell

CustomAttributes — Custom attributes of document element

[] (default) | array of mlreportgen.dom.CustomAttribute objects

Custom attributes of this document element, specified as an array of mlreportgen.dom.CustomAttribute objects. The custom attributes must be supported by the output format of the document element to which this object is appended.

Attributes:

NonCopyable

true

Parent — Parent of mlreportgen.dom.Image object

document element object

Parent of mlreportgen.dom.Image object, specified as a document element object. A document element must have only one parent.

Attributes:

SetAccess	private
NonCopyable	true

Children — This property is ignored

not applicable

The class ignores this property.

Attributes:

SetAccess	private
NonCopyable	true

Tag — Tag for mlreportgen.dom.Image object

character vector | string scalar

Tag for mlreportgen.dom.Image object, specified as a character vector or string scalar. The DOM API generates a session-unique tag as part of the creation of this object. The generated tag has the form CLASS:ID, where CLASS is the object class and ID is the value of the Id property of the object. Specify your own tag value to help you identify where to look when an issue occurs during document generation.

Attributes:

NonCopyable

true

Data Types: char | string

Id — Identifier for mlreportgen.dom.Image object

character vector | string scalar

Object identifier for mlreportgen.dom.Image object, specified as a character vector or string scalar. The DOM API generates a session-unique identifier when it creates the document element object. You can specify your own value for Id.

Attributes:

NonCopyable

true

Data Types: char | string

Methods

Public Methods

Method	Purpose
append	Do not use this method. Appending content to an mlreportgen.dom.Image object has no effect in the generated output.
clone	clone = clone(imageObj)creates a copy of the specified mlreportgen.dom.Image object. To append the same image to different parts of a document, use the clone method. Do not add the same mlreportgen.dom.Image object to a document more than one time.

Examples

Include Image in a Report

Use an mlreportgen.dom.Image object to specify an image that you want to include in a report. Include the image in the report by appending the Image object to the report.

Import the DOM namespace so that you do not have to use long, fully qualified class names.

import mlreportgen.dom.*

Create a report and add a title for the image using an mlreportgen.dom.Paragraph object.

d = Document("myImageReport","docx");

p = Paragraph("Plot 1");
p.Bold = true;
append(d,p);

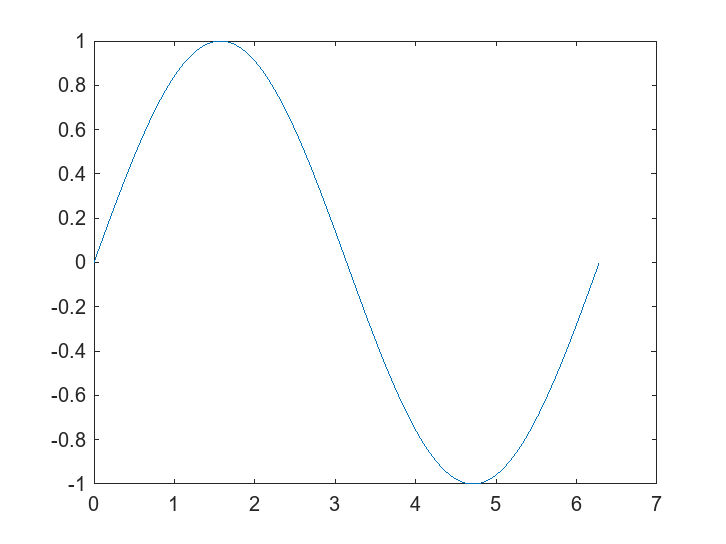

Save a plot as an image file.

x = 0:pi/100:2*pi;
y = sin(x);
plot(x,y);

saveas(gcf,"myPlot_img.png");

Create an mlreportgen.dom.Image object that specifies the path of the image file. Specify that the width and height are 4 inches. Append the Image object to the report.

plot1 = Image("myPlot_img.png");
plot1.Width = "4in";
plot1.Height = "4in";
append(d,plot1);

Close and view the report.

close(d);
rptview(d);

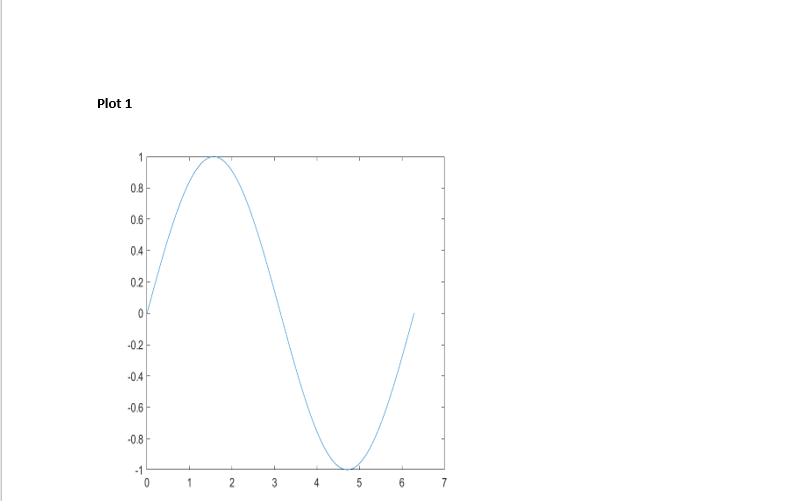

Here is the image in the generated report:

Version History

Introduced in R2014b

R2019b: SVG image support for Word reports

Starting in R2019b, you can include Scalable Vector Graphics (SVG) images in Word reports. Word reports that contain SVG images require Microsoft^® Word 2016 or a later version. To generate reports with images that are compatible with earlier versions of Word, create mlreportgen.dom.Image objects from images that have a format other than SVG.
