Summary table components insert tables that include specified properties for objects
into generated reports. Summary tables contain one object per row, with each object property
appearing in a column, as shown in the following summary table in the
Many types of summary table components are available, including:
Handle Graphics® Summary Table
Simulink® Summary Table (requires Simulink Report Generator™)
Stateflow® Summary Table (requires Simulink Report Generator)
The component used in this example represents MATLAB® Report Generator summary table components, all of which exhibit similar behavior
This example uses the
figloop-tutorial report template. To open the
figure loop tutorial report template, enter the following at the MATLAB command line:
You can use the Object type selection list to choose Handle Graphics object types for the summary table, including blocks, signals, systems, and
figloop-tutorial reports on figure objects.
You can select object properties to appear in the summary table from the Property
Columns pane. To add a property to the summary table, select the property category from the
property category drop-down box to the right of the Property columns
table. Each property category has its own list of properties, which appear in the field

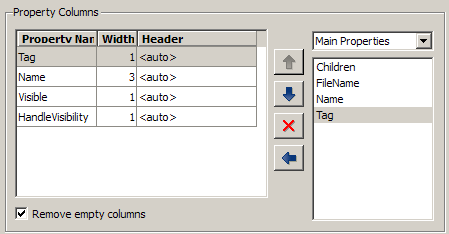

under the box. The following figure shows
Main Properties as the
To add a property:
Select the category from the property category drop-down box.
Select a property in the properties list.
Click the Add property button.
The property appears in the Property columns table.
To remove a property from the table:
Select the property in the Property columns table.
Click the Delete property button.
The property name is removed from the Property columns table.
After making changes in the Report Explorer, click Apply to make the changes take effect.
You can define your own properties by entering their names into the Property columns table using valid variable notation.
To apply a relative column width to the summary table columns in the generated report,
double-click on the
Width column of a row in the Property
columns table . If you do not specify a value for this field, column widths
You can use the Object Rows pane to set options for table rows, including anchor, filtering, and sorting options. Select Insert anchor for each row to place an anchor in each table row in the report. Use the Include figures list to specify what objects to include in the summary table.
Summary table components in
figloop-tutorial report on figure
objects. For more information on options for these figure objects, see the following
