Common Periodic Waveforms

Signal Processing Toolbox™ provides functions for generating widely used periodic waveforms.

  • sawtooth generates a sawtooth wave with peaks at ±1 and a period of 2π. An optional width parameter specifies a fractional multiple of 2π at which the signal maximum occurs.

  • square generates a square wave with a period of 2π. An optional parameter specifies the duty cycle, the percent of the period for which the signal is positive.

Generate 1.5 seconds of a 50 Hz sawtooth wave with a sample rate of 10 kHz. Plot 0.2 seconds of the generated waveform.

fs = 10e3;
t = 0:1/fs:1.5;
x = sawtooth(2*pi*50*t);

plot(t,x)
axis([0 0.2 -1 1])

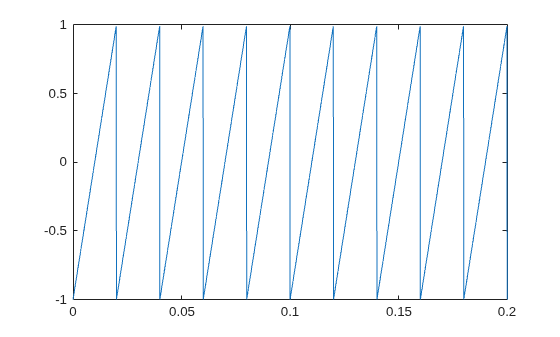

Figure contains an axes. The axes contains an object of type line.

Generate 1.5 seconds of a 50 Hz square wave with a sample rate of 10 kHz. Specify a duty cycle of 25%. Plot 0.2 seconds of the generated waveform.

fs = 10e3;
t = 0:1/fs:1.5;
x = square(2*pi*50*t,25);

plot(t,x)
axis([0 0.2 -1 1])

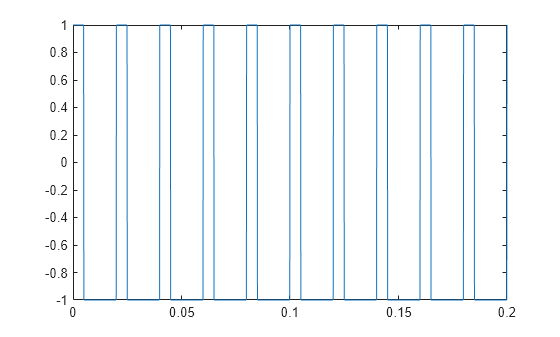

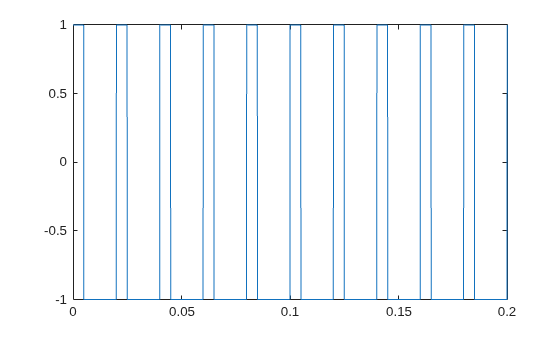

Figure contains an axes. The axes contains an object of type line.

Use the dutycycle function to verify that the duty cycle of the square wave is the specified value. Use the function with no output arguments to plot the waveform, the location of the mid-reference level instants, the associated reference levels, the state levels, and the associated lower and upper state boundaries.

dc = dutycycle(x,fs);
dc = dc(1)
dc = 0.2500
dutycycle(x,fs);
xlim([0 0.2])

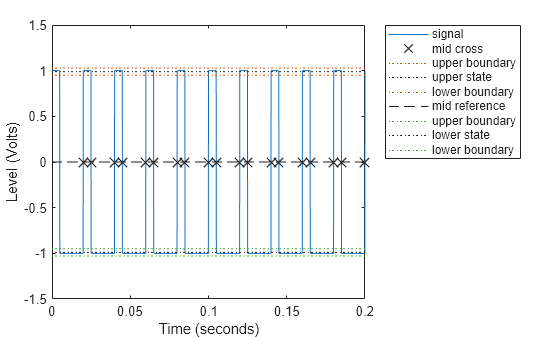

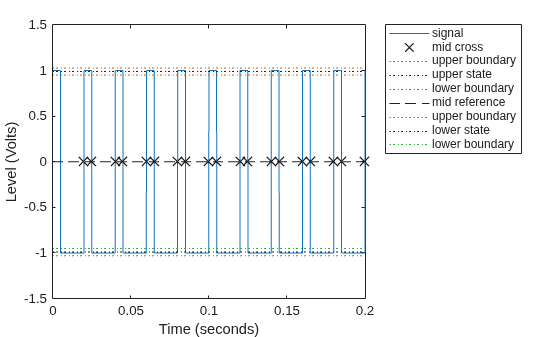

Figure Duty Cycle Plot contains an axes. The axes contains 9 objects of type line. These objects represent signal, mid cross, upper boundary, upper state, lower boundary, mid reference, lower state.
