generate

Class: sigwin.hann
Package: sigwin

Generates Hann window

Syntax

win = generate(H)

Description

win = generate(H) returns the values of the Hann window object H as a double-precision column vector.

Examples

expand all

Generate two Hann windows:

  • The first window has N = 64 and is symmetric.

  • The second window has N = 63 and is periodic.

Display the two windows.

Hs = sigwin.hann(64,'symmetric');
Hp = sigwin.hann(63,'periodic')
Hp =
            Name: 'Hann'
    SamplingFlag: 'periodic'
          Length: 63

wvt = wvtool(Hs,Hp);
legend(wvt.CurrentAxes,'Symmetric','Periodic')

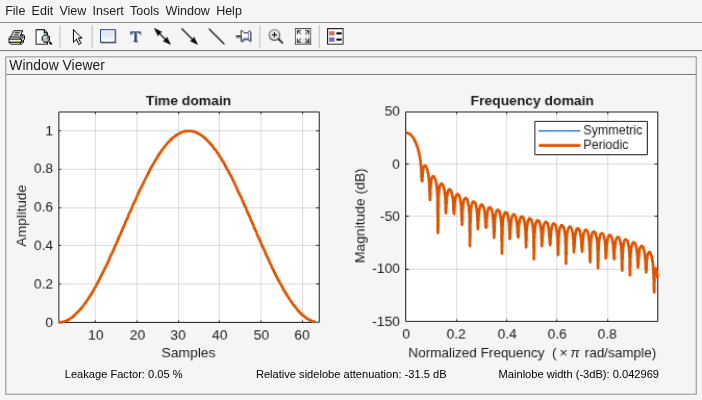

Figure Window Visualization Tool contains 2 axes and other objects of type uimenu, uitoolbar, uipanel. Axes 1 with title Time domain contains 2 objects of type line. Axes 2 with title Frequency domain contains 2 objects of type line. These objects represent Symmetric, Periodic.

Generate a symmetric Hann window with N = 16. Return the window values as a column vector. Show information about the window object. Display the window.

H = sigwin.hann(16);

win = generate(H)
win = 16×1

         0
    0.0432
    0.1654
    0.3455
    0.5523
    0.7500
    0.9045
    0.9891
    0.9891
    0.9045
      ⋮

wininfo = info(H)
wininfo = 4x26 char array
    'Hann Window               '
    '-----------               '
    'Length         : 16       '
    'Sampling Flag  : symmetric'

wvtool(H)

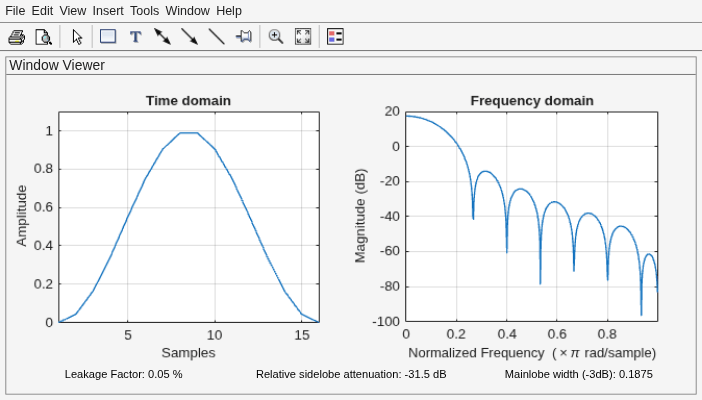

Figure Window Visualization Tool contains 2 axes and other objects of type uimenu, uitoolbar, uipanel. Axes 1 with title Time domain contains an object of type line. Axes 2 with title Frequency domain contains an object of type line.
