Triangular window


w = triang(L)


w = triang(L) returns an L-point triangular window in the column vector, w.

See Algorithms for the equations that define the triangular window. The triangular window is very similar to a Bartlett window. The Bartlett window always ends with zeros at samples 1 and L, while the triangular window is nonzero at those points. For L odd, the center L-2 points of triang(L-2) are equivalent to bartlett(L).


collapse all

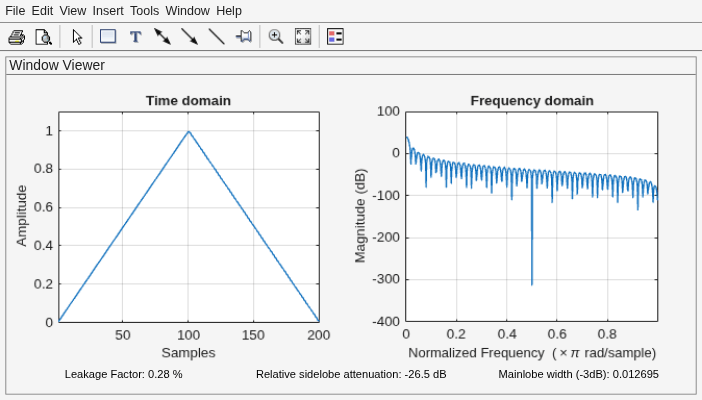

Create a 200-point triangular window. Display the result using wvtool.

L = 200;
w = triang(L);


The coefficients of a triangular window are the following.

For L odd:


For L even:



[1] Oppenheim, Alan V., Ronald W. Schafer, and John R. Buck. Discrete-Time Signal Processing. Upper Saddle River, NJ: Prentice Hall, 1999.

Extended Capabilities

Introduced before R2006a
