The chirp Z-transform (CZT) is useful in evaluating the Z-transform along contours other than the unit circle. The chirp Z-transform is also more efficient than the DFT algorithm for the computation of prime-length transforms, and it is useful in computing a subset of the DFT for a sequence. The chirp Z-transform, or CZT, computes the Z-transform along spiral contours in the *z*-plane for an input sequence. Unlike the DFT, the CZT is not constrained to operate along the unit circle, but can evaluate the Z-transform along contours described by $${z}_{\ell}=A{W}^{-\ell},\phantom{\rule{0.2777777777777778em}{0ex}}\ell =0,\cdots ,M-1$$, where *A* is the complex starting point, *W* is a complex scalar describing the complex ratio between points on the contour, and *M* is the length of the transform.

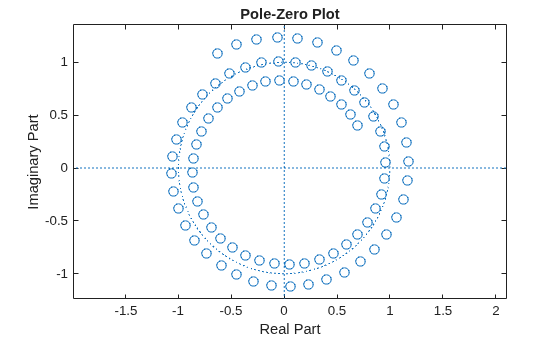

One possible spiral is

a = 0.8*exp(1j*pi/6); w = 0.995*exp(-1j*pi*.05); m = 91; z = a*(w.^(-(0:m-1)')); zplane(z)

`czt(x,m,w,a)`

computes the Z-transform of `x`

on these points.

An interesting and useful spiral set is *m* evenly spaced samples around the unit circle, parameterized by $$A=1$$ and $$W=\mathrm{exp}(-j\pi /M)$$. The Z-transform on this contour is simply the DFT, obtained by `czt`

:

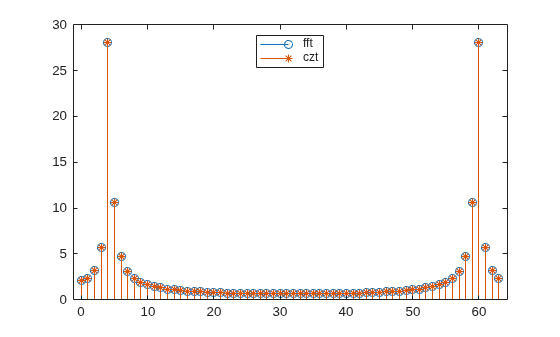

M = 64; m = 0:M-1; x = sin(2*pi*m/15); FFT = fft(x); CZT = czt(x,M,exp(-2j*pi/M),1); stem(m,abs(FFT)) hold on stem(m,abs(CZT),'*') hold off legend('fft','czt','Location','north')

`czt`

may be faster than the `fft`

function for computing the DFT of sequences with certain odd lengths, particularly long prime-length sequences.
