You can use **Signal Labeler** to perform automated labeling tasks. Apart from
**Peak Labeler**, the **Automate Value** gallery on the
**Label** tab contains functions that you can use to label signals automatically.

The first line in every custom autolabeling function consists of a definition statement of the form

`function [labelVals,labelLocs] = fx(x,t,parentLabelVal,parentLabelLoc,varargin)`

The first input argument,

`x`

, is the input signal. When writing the function, expect`x`

to be a matrix where each column contains data corresponding to a channel. If the channels have different lengths, then expect`x`

to be a cell array of column vectors.The second input argument,

`t`

, stores the time values. When writing the function, expect`t`

to be a matrix where each column contains time information corresponding to a channel. If the channels have different lengths, then expect`t`

to be a cell array of column vectors.### Note

For single-channel members, custom autolabeling functions get data and time values as double precision vectors.

For multichannel members, custom autolabeling functions get data and time values as matrices or cell arrays.

Custom autolabeling functions get all the channels of a member as input, but they do not have to operate on all. You can choose what channels you want the function to operate on.

The third input argument,

`parentLabelVal`

, is the parent label value associated with the output sublabel and contains a numeric, logical, or string scalar. This argument is passed in only for functions that automate the labeling of sublabels. If the function is for a parent label, expect`parentLabelVal`

to be empty.The fourth input argument,

`parentLabelLoc`

, contains:An empty vector when the parent label is an attribute

A two-element numeric row vector of ROI limits when the parent label is an ROI

A numeric scalar representing a point location when the parent label is a point

This argument is passed in only for functions that automate the labeling of sublabels. If the function is for a parent label, expect

`parentLabelLoc`

to be empty.### Note

For parent labels, the autolabeling function is called for each selected member.

For sublabels, the autolabeling function is called for each selected member, one instance of the parent label at a time.

Use

`varargin`

to specify additional input arguments. If you do not have additional input arguments, you can omit`varargin`

. Enter the additional arguments as an ordered comma-separated list in the dialog box that appears when you click the**Auto-Label**button.The first output argument,

`labelVals`

, contains the label values.`labelVals`

must be:A numeric, logical, or string scalar when the output labels are attributes

A column vector with numeric, logical, or string values when the output labels are ROIs or points

The second output argument,

`labelLocs`

, contains the label locations.`labelLocs`

must be:An empty vector when the output labels are attributes

A two-column matrix of ROI limits when the output labels are ROIs

A column vector of point locations when the output labels are points

To implement your algorithm, you can use any function from MATLAB

^{®}or from any toolbox installed in your system.

For more details, see Label QRS Complexes and R Peaks of ECG Signals Using Deep Network and Label Spoken Words in Audio Signals Using External API.

This function computes the mean RMS value of a signal and labels the signal with the value as a numeric attribute.

function [labelVals,labelLocs] = meanRMS(x,t,parentLabelVal,parentLabelLoc,varargin) % Label signal with its mean RMS value as attribute if iscell(x) q = cellfun(@rms,r,'UniformOutput',false); labelVals = cell2mat(q)'; else labelVals = mean(rms(x)); end labelLocs = []; end

`a`

and
`b`

, even though `a`

is a matrix and
`b`

is a cell array of column vectors.fs = 1000; t = 0:1/fs:14-1/fs; a = [chirp(t-1,0.1,17,2,'quadratic',1).*sin(2*pi*t/5); chirp(t-2,2,2,2.1,'quadratic',100).*exp(-(t-6.5).^2/20).*sin(2*pi*t*2); 0.85*besselj(0,5*(sin(2*pi*(t+1.5).^2/20).^2)).*sin(2*pi*t/9)]'; b = labeledSignalSet({a});

This function finds the zero crossings of a signal and labels them as
`"rising"`

for positive-going transitions and
`"falling"`

for negative-going
transitions.

function [labelVals,labelLocs] = transitions(x,t,parentLabelVal,parentLabelLoc,varargin) % Label zero crossings as "rising" or "falling" [~,ltup,utup] = risetime(x,t,'StateLevels',0.1*[-1 1]); ups = (utup+ltup)/2; upc = repmat("rising",length(ups),1); [~,ltdn,utdn] = falltime(x,t,'StateLevels',0.1*[-1 1]); dns = (utdn+ltdn)/2; dnc = repmat("falling",length(dns),1); labelLocs = [ups;dns]; labelVals = categorical(string([upc;dnc]),["rising" "falling"]); end

This logical function labels as true those regions of a multichannel signal where:

The amplitude of the first channel is negative.

The amplitude of the third channel is larger than a user-specified value that defaults to 0.1.

function [labelVals,labelLocs] = greaterThan(x,t,parentLabelVal,parentLabelLoc,varargin) % Label regions with negative first channel and third channel larger than a given value if nargin<5 mx = 0.1; else mx = varargin{1}; end xr = x(:,1); xx = x(:,3); tt = t(:,3); idx = find(xx >= mx & xr < 0); fir = [true;diff(idx)~=1]; ide = [idx(fir) idx(fir([2:end 1]))]; labelLocs = tt(ide); labelVals = true(size(ide,1),1); labelVals = logical(labelVals); end

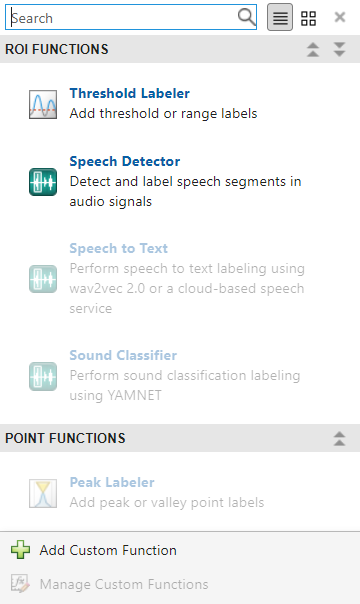

To add a custom autolabeling function, click the arrow next to the **Automate
Value** gallery and then select **Add Custom Function**. In the
dialog box, specify these fields:

**Name**— Specify the name of the function you want to add.**Description**— Add a short description of what the function does and describe the optional input arguments.**Label Type**— Specify the type of label that the function generates. Select`Attribute`

(the default),`ROI`

, or`Point`

.### Note

Based on the

**Label Type**you specify,**Signal Labeler**places the function in the appropriate category in the**Automate Value**gallery. When you select a label definition, the gallery enables only those functions that can be used with that type of definition.

If you have already written a function, and the function is in the current
folder or in the MATLAB path, **Signal Labeler** incorporates it in the gallery. If
you have not written the function yet, **Signal Labeler** opens a blank
template in the Editor.

At any time, you can edit functions, edit function descriptions, or remove functions
using the **Manage Custom Functions** option in the **Automate
Value** gallery.

Using the **Manage Custom Functions** option changes only the
function descriptions displayed in the **Automate Value** gallery. If you
want to change the description in the file that contains the function, you must edit the
file.
