Charge Battery Module with Charger Block

Since R2024a

This example shows how to charge a battery module using a constant-current step followed by a constant-voltage step. This is a CC-CV profile. The battery simulation utilizes a Simscape™ Battery™ Charger block. At the start of the simulation, the battery module has a state of charge (SOC) of 10%. The Charger block performs a constant-current (CC) charging until it reaches the predefined module voltage limit of 4.1 V. The block then switches to a constant-voltage (CV) control step where the current gradually decreases until it reaches a threshold of 0.5 A, specified in the Current Threshold parameter. The charging procedure stops once the current reaches the designated threshold.

Model Overview

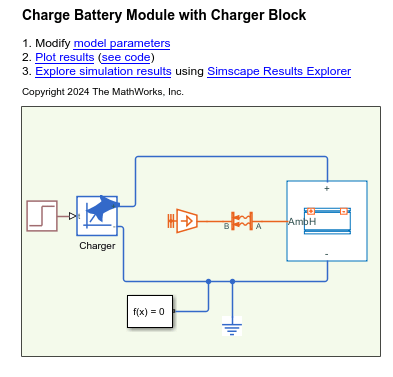

Open the controlledChargingSsc model.

modelname = "controlledChargingSsc";
open_system(modelname);

The model comprises a pre-generated Module block and a Charger block. The Module block represents a battery module with three parallel assemblies with a gap between each parallel assembly of 0.5 mm, a detailed model resolution, and an enabled ambient thermal path. Each parallel assembly comprises four single-stacked pouch cells. Each pouch cell measures 300 mm in length, 100 mm in height, and 10 mm in thickness. For more information on how to generate the Module block, open the controlledChargingSscCreateLib.m file.

Run the simulation.

ssc_cntrlChrgSsc = sim(modelname);

Simulation Results

This plot shows the current and SOC of the battery module during the simulation.

controlledChargingSscPlotSOC;

Results from Real-Time Simulation

This example has been tested on these platforms:

• Speedgoat™ Performance real-time target machine with an Intel® 3.5 GHz i7 multi-core CPU and 4 GB RAM.

• dSPACE® SCALEXIO LabBox with Intel® Core XEON E3-1275v3 at 3.5GHz and 4 GB RAM.

You can run this model in real time with a step size of 400 microseconds by using the Simscape local solver. For small sample rates, a task overrun might occur during the initial task execution due to a cold cache. To avoid this overrun, if the selected platform supports these options, relax the start-up behavior by specifying a limited number of task overruns or increasing the sample time of periodic tasks during the start-up phase of the real-time application.
