# Translational Mechanical Converter (TL)

Interface between thermal liquid and mechanical translational networks

**Libraries:**

Simscape /
Foundation Library /
Thermal Liquid /
Elements

## Description

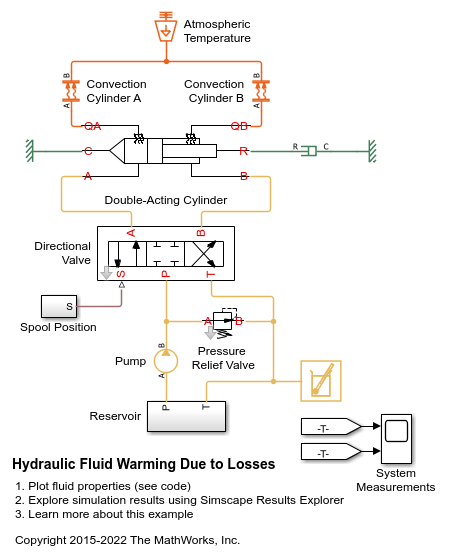

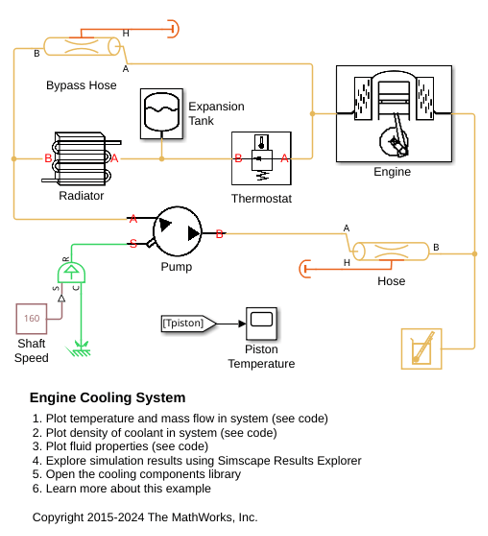

The Translational Mechanical Converter (TL) block models an interface between a thermal liquid network and a mechanical rotational network. The block converts thermal liquid pressure into mechanical force and vice versa. It can be used as a building block for linear actuators.

The converter contains a variable volume of liquid. The temperature evolves based on the
thermal capacity of this volume. If the **Fluid dynamic compressibility**
check box is selected, then the pressure also evolves based on the dynamic compressibility of
the liquid volume. The **Mechanical orientation** parameter lets you specify
whether an increase in pressure moves port **R** away from or towards port
**C**.

Port **A** is the thermal liquid conserving port associated with the
converter inlet. Port **H** is the thermal conserving port associated with
the temperature of the liquid inside the converter. Ports **R** and
**C** are the mechanical translational conserving ports associated with the
moving interface and converter casing, respectively.

### Mass Balance

The mass conservation equation in the mechanical converter volume is

$${\dot{m}}_{\text{A}}=\epsilon \text{\hspace{0.17em}}\rho S\text{\hspace{0.17em}}v+\{\begin{array}{cc}0,& \text{if}\text{\hspace{0.17em}}\text{fluid}\text{\hspace{0.17em}}\text{dynamic}\text{\hspace{0.17em}}\text{compressibility}\text{\hspace{0.17em}}\text{is}\text{\hspace{0.17em}}\text{off}\\ V\rho \left(\frac{1}{\beta}\frac{dp}{dt}+\alpha \frac{dT}{dt}\right),& \text{if}\text{\hspace{0.17em}}\text{fluid}\text{\hspace{0.17em}}\text{dynamic}\text{\hspace{0.17em}}\text{compressibility}\text{\hspace{0.17em}}\text{is}\text{\hspace{0.17em}}\text{on}\end{array}$$

where:

$${\dot{m}}_{\text{A}}$$ is the liquid mass flow rate into the converter through port A.

*ε*is the mechanical orientation of the converter (`1`

if increase in fluid pressure causes positive displacement of R relative to C,`-1`

if increase in fluid pressure causes negative displacement of R relative to C).*ρ*is the liquid mass density.*S*is the cross-sectional area of the converter interface.*v*is the translational velocity of the converter interface.*V*is the liquid volume inside the converter.*β*is the liquid bulk modulus inside the converter.*α*is the coefficient of thermal expansion of the liquid.*p*is the liquid pressure inside the converter.*T*is the liquid temperature inside the converter.

If you connect the converter to a Multibody joint, use the physical signal input port
**p** to specify the displacement of port **R** relative
to port **C**. Otherwise, the block calculates the interface displacement
from relative port velocities, according to the block equations. The interface displacement
is zero when the liquid volume is equal to the dead volume. Then, depending on the
**Mechanical orientation** parameter value:

If

`Pressure at A causes positive displacement of R relative to C`

, the interface displacement increases when the liquid volume increases from dead volume.If

`Pressure at A causes negative displacement of R relative to C`

, the interface displacement decreases when the liquid volume increases from dead volume.

### Momentum Balance

The momentum conservation equation in the mechanical converter volume is

$$F=-\epsilon \left(p-{p}_{\text{Atm}}\right)S$$

where:

*F*is the force the liquid exerts on the converter interface.*p*_{Atm}is the atmospheric pressure.

### Energy Balance

The energy conservation equation in the mechanical converter volume is

$$\frac{d(\rho uV)}{dt}={\varphi}_{\text{A}}+{Q}_{H}-pS\epsilon v,$$

where:

*u*is the liquid internal energy.*ϕ*_{A}is the total energy flow rate into the mechanical converter volume through port A.*Q*_{H}is the heat flow rate into the mechanical converter volume.

### Assumptions and Limitations

Converter walls are not compliant. They cannot deform regardless of internal pressure and temperature.

The converter contains no mechanical hard stops. To include hard stops, use the Translational Hard Stop block.

The flow resistance between the inlet and the interior of the converter is negligible.

The thermal resistance between the thermal port and the interior of the converter is negligible.

The kinetic energy of the fluid in the converter is negligible.

## Ports

### Input

### Conserving

## Parameters

## Extended Capabilities

## Version History

**Introduced in R2013b**
