db_0146: Block layout in conditional subsystems
Since R2020a
Guideline Publication
Control Algorithm Modeling Guidelines - Using MATLAB®, Simulink®, and Stateflow®
Sub ID Recommendations
NA-MAAB — a, b
JMAAB — a, b
MATLAB Versions
All
Rule
Sub ID a
Conditional input blocks shall be positioned at the top of the subsystem.
Custom Parameter
Not Applicable

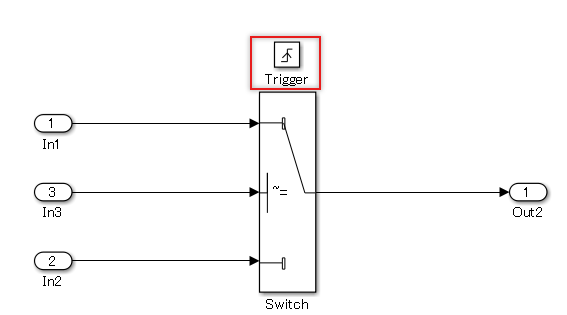

Example — Correct

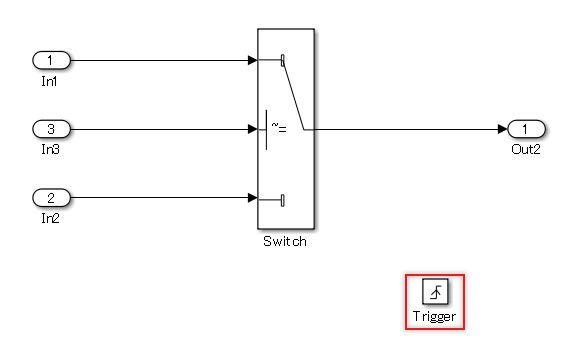

Example — Incorrect
Sub ID b
The position of these blocks shall be defined by the project:
Custom Parameter
Location layout
Rationale
Sub IDs a, b:
Unifying the internal and external layout of the conditional subsystem improves readability of the model.
Verification
Model Advisor check: Check position of conditional blocks and iterator blocks (Simulink Check)
Last Changed
R2020a
Version History
Introduced in R2020a
