jc_0110: Direction of block
Since R2020a
Guideline Publication
Control Algorithm Modeling Guidelines - Using MATLAB®, Simulink®, and Stateflow®
Sub ID Recommendations
NA-MAAB — No recommendations
JMAAB — a
MATLAB Versions
All
Rule
Sub ID a
Blocks shall be arranged so the output is to the right.
Exception
When a Delay is used in a feedback loop, the output can be to the left.
Custom Parameter
Not Applicable
Example — Correct
The model is arranged so that the output is to the right. The output of the Delay block is to the left.

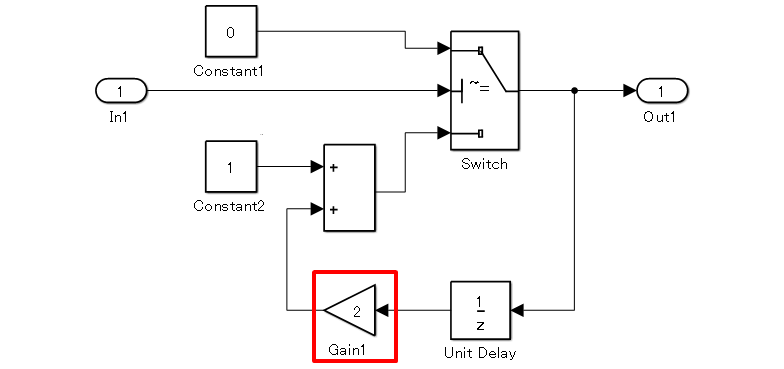

Example — Incorrect
The block is arranged so the output is to the left.
Rationale
Sub ID a:
Signal flow can be difficult to understand if the direction of the signals is not consistent.
Verification
Model Advisor check: Check block orientation (Simulink Check)
Last Changed
R2020a
Version History
Introduced in R2020a
