jc_0604: Using block shadow
Since R2020a
Guideline Publication
Control Algorithm Modeling Guidelines - Using MATLAB®, Simulink®, and Stateflow®
Sub ID Recommendations
NA-MAAB — a
JMAAB — a
MATLAB Versions
All
Rule
Sub ID a
Block format property Shadow
(DropShadow
) shall not be selected.
Custom Parameter
Not Applicable

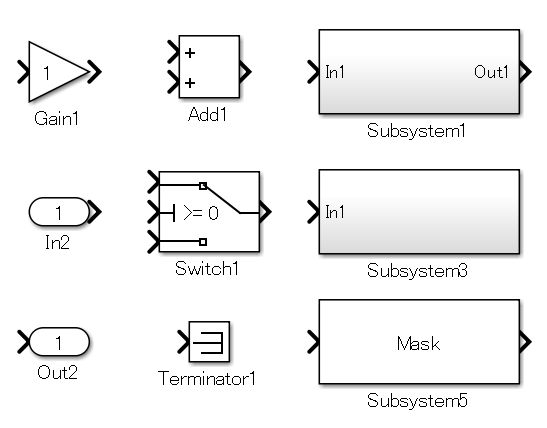

Example — Correct

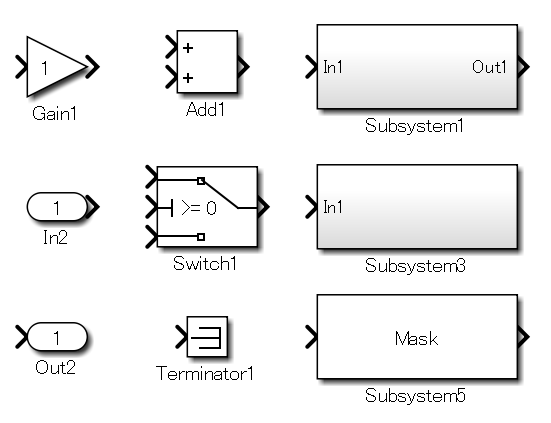

Example — Incorrect
Blocks have a drop shadow.
Rationale
Sub ID a:
Difficult to determine if a port exists because it is hidden by the shading, which impairs readability.
Verification
Model Advisor check: Check if blocks are shaded in the model (Simulink Check)
Last Changed
R2020a
Version History
Introduced in R2020a
