jc_0734: Number of state action types
Since R2020a
Guideline Publication
Control Algorithm Modeling Guidelines - Using MATLAB®, Simulink®, and Stateflow®
Sub ID Recommendations
NA-MAAB — a
JMAAB — a
MATLAB Versions
All
Rule
Sub ID a
State action types shall not be used more than one time in a Stateflow state.
Custom Parameter
Not Applicable

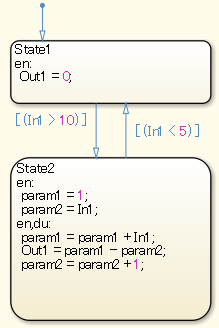

Example — Correct
Example — Incorrect
Rationale
Sub ID a:
The execution order will differ depending on the order in which they are described.
Execution order can be difficult to understand when the action type is described multiple times.
Verification
Model Advisor check: Check repetition of action types (Simulink Check)
Last Changed
R2020a
See Also
Represent Operating Modes by Using States (Stateflow)
Version History
Introduced in R2020a
