Simulink Subsystem Semantics

This set of examples shows different types of Simulink® Subsystems and what semantics are used when simulating these Subsystems. Each example provides a description of the model and the subtleties governing how it will be executed.

Examples are provided for the following Subsystem types.

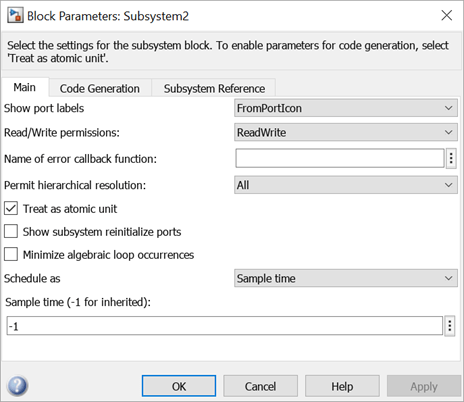

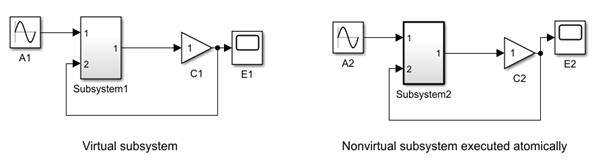

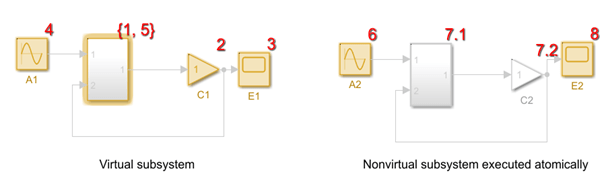

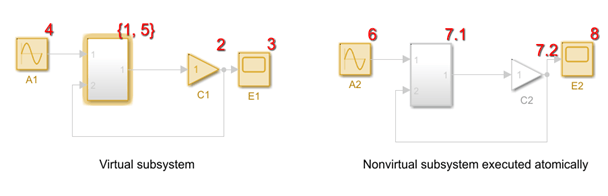

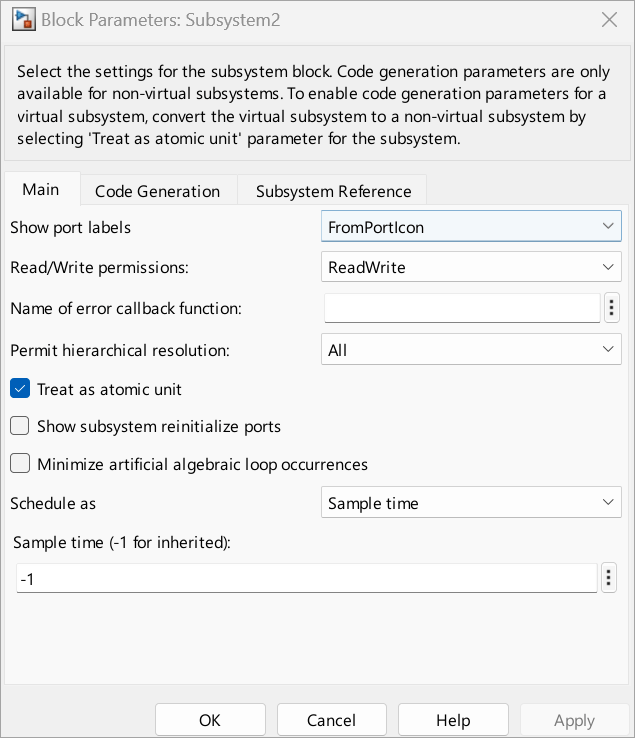

  • Virtual and Nonvirtual Subsystems

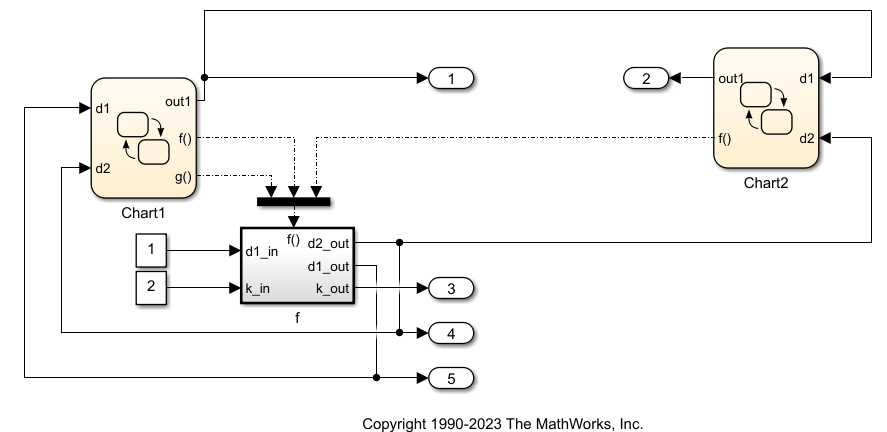

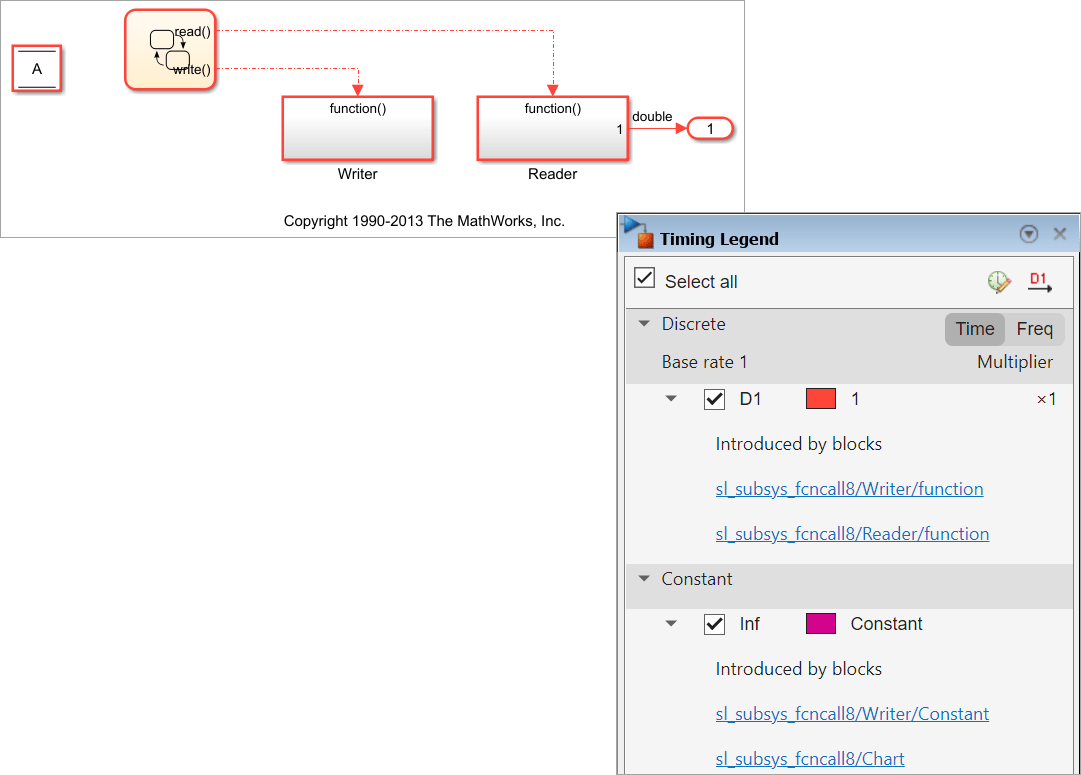

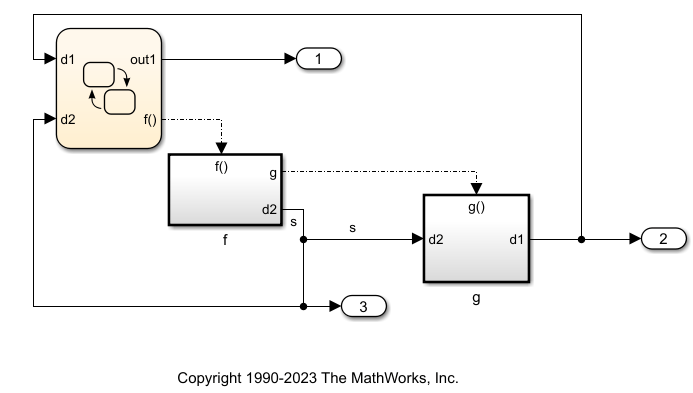

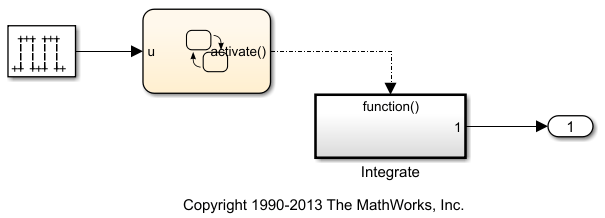

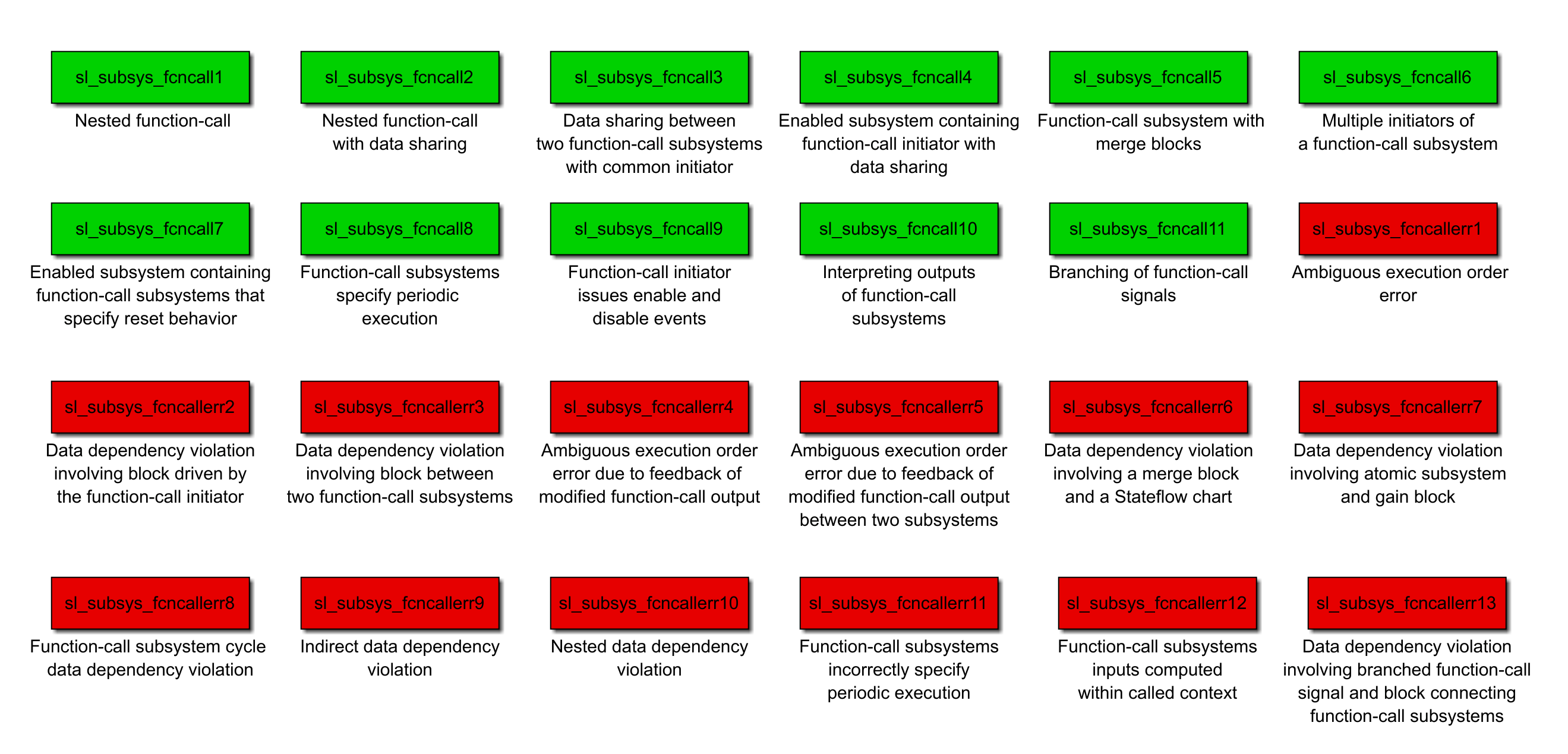

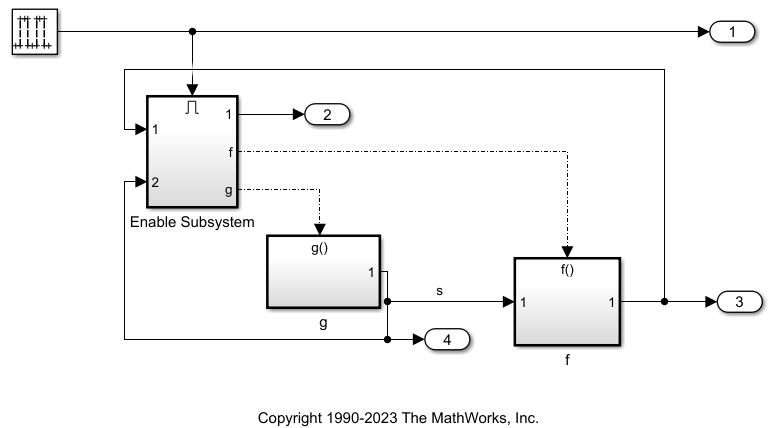

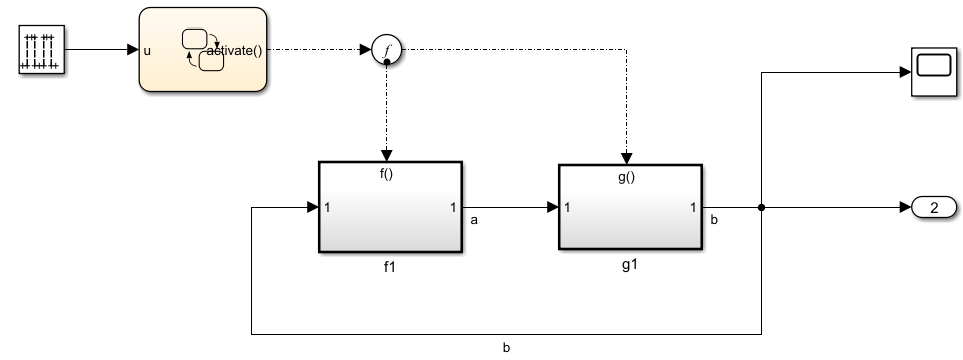

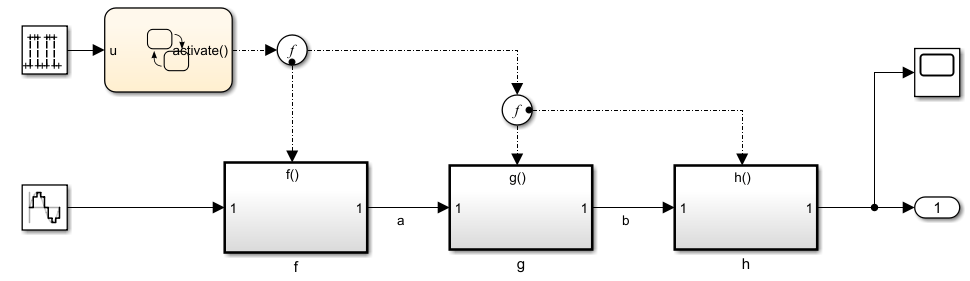

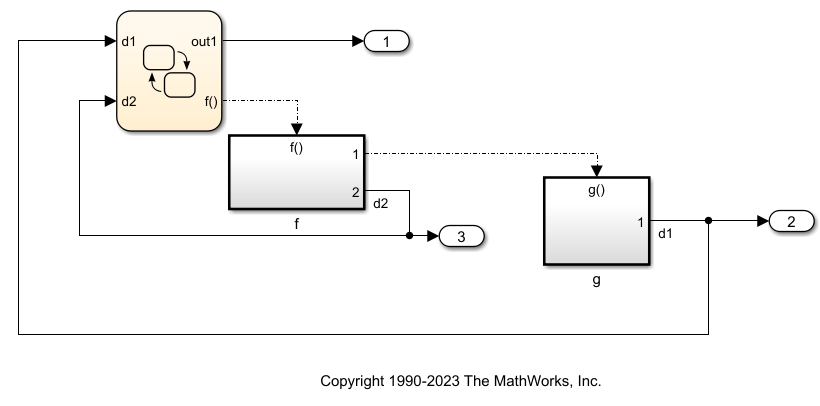

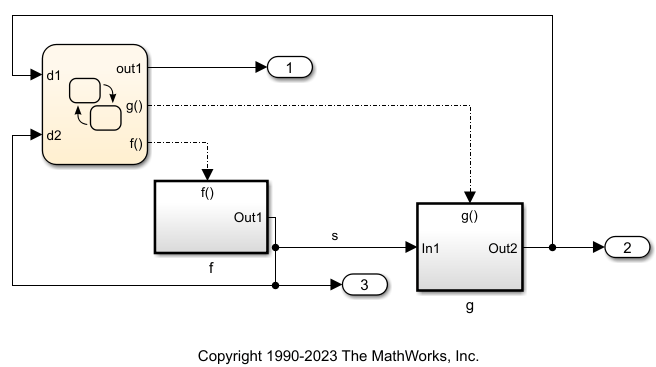

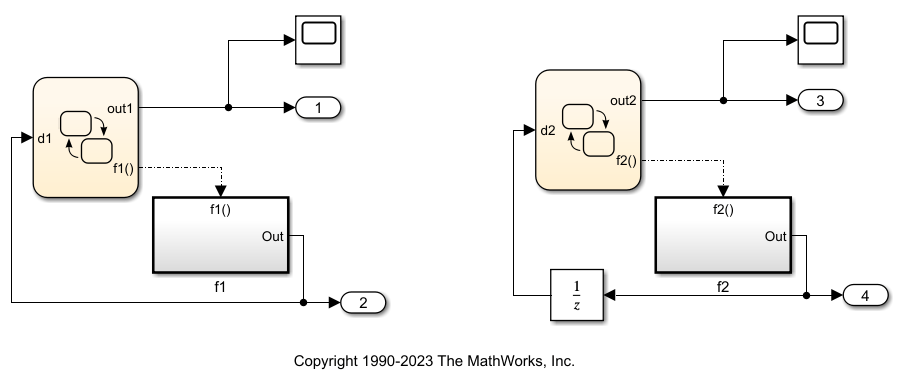

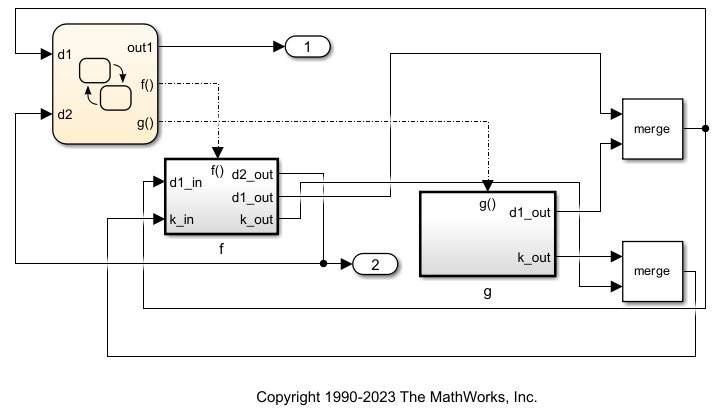

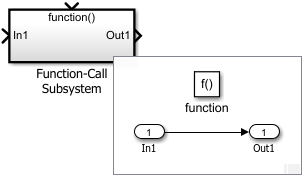

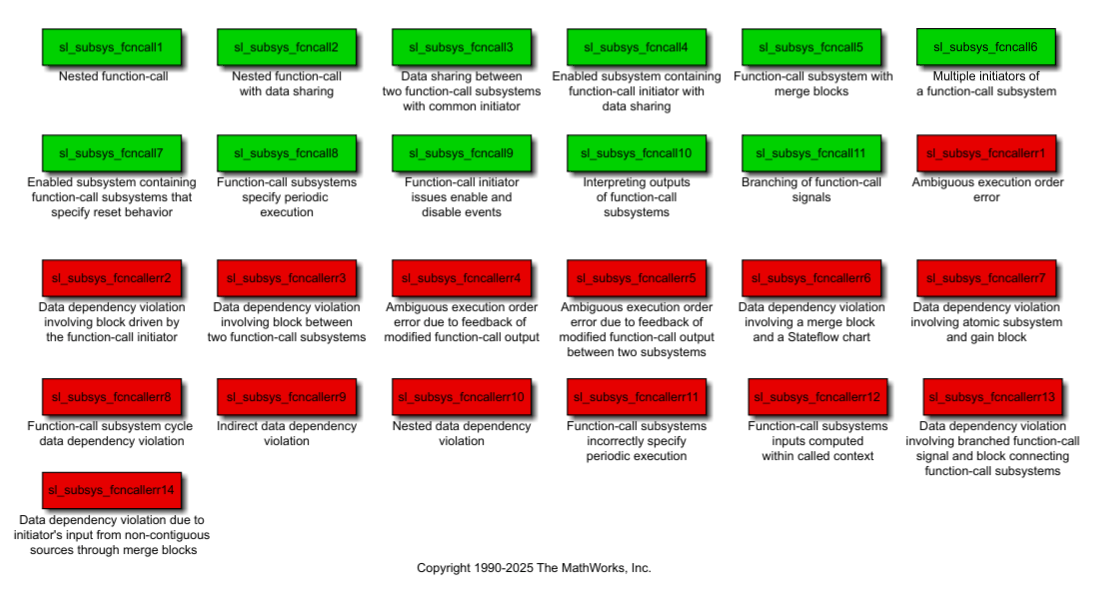

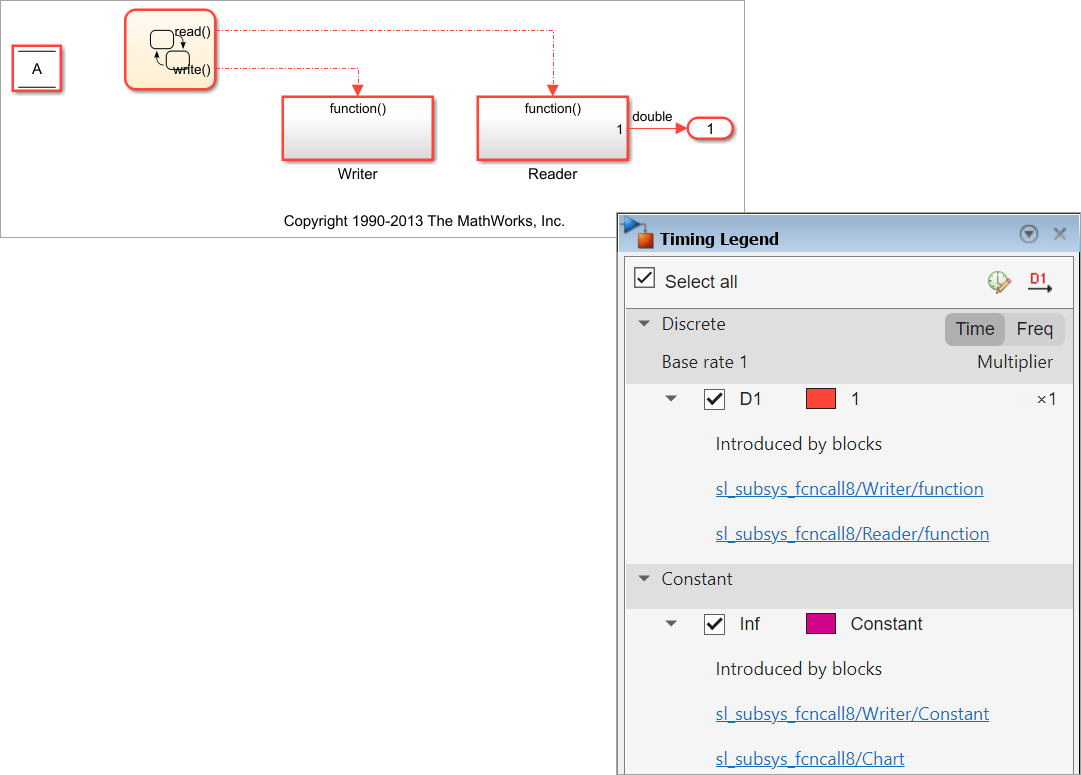

  • Function-call Subsystems

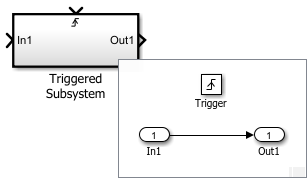

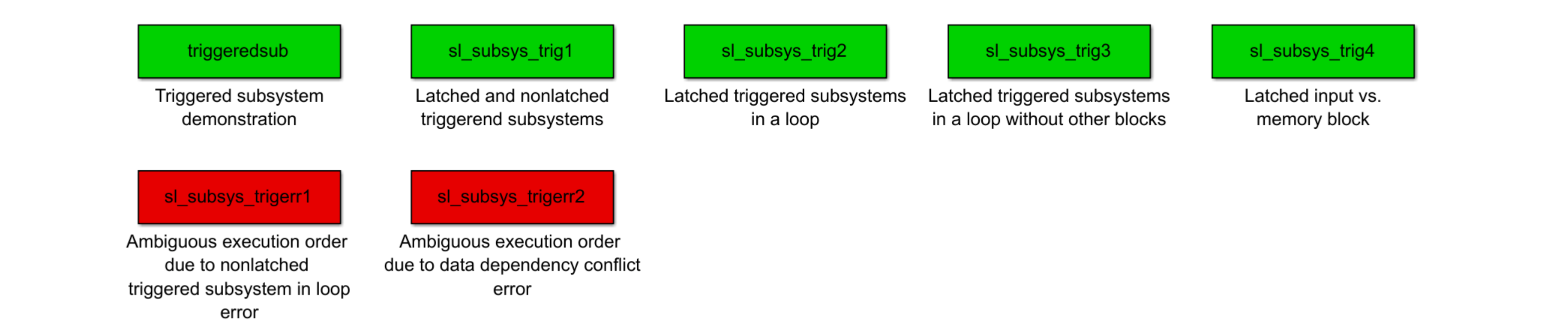

  • Triggered Subsystems

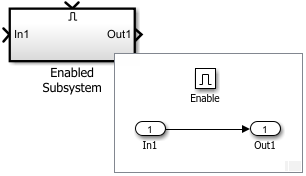

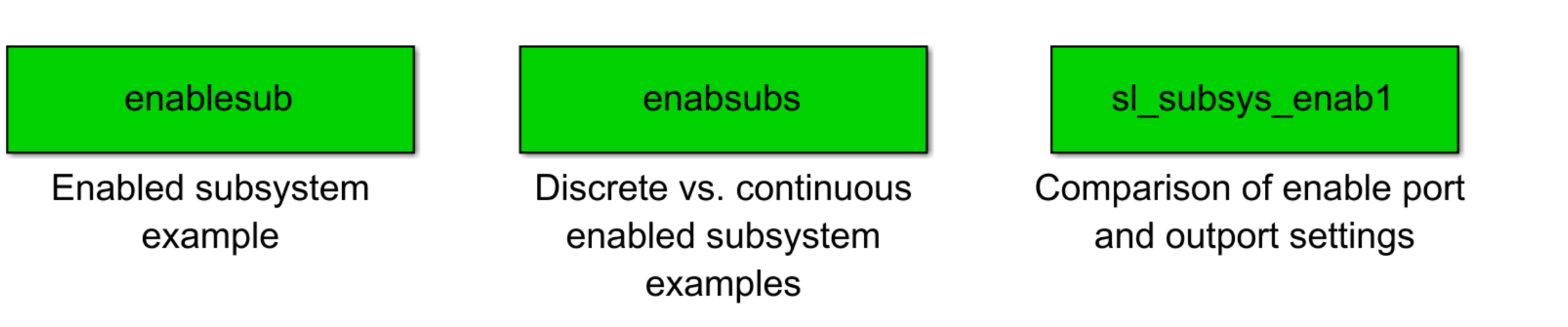

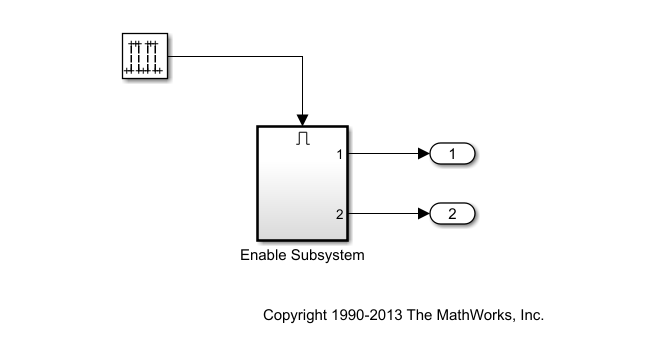

  • Enabled Subsystems

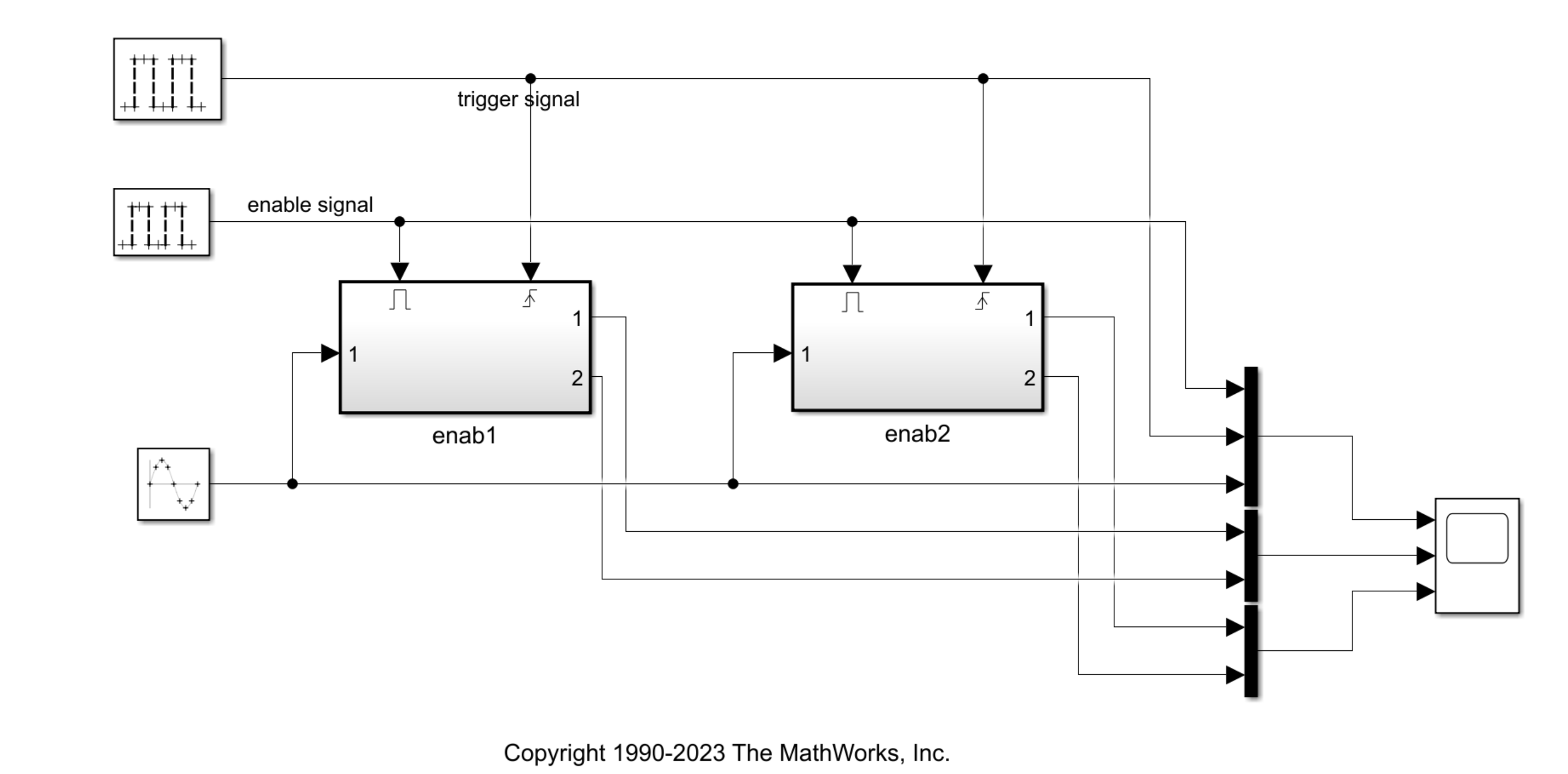

  • Triggered and Enabled Subsystems

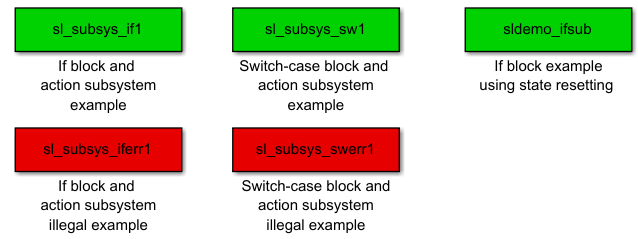

  • If/else Subsystems

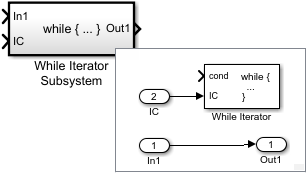

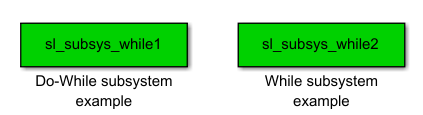

  • While Subsystems

  • For Subsystems
