# MATLAB Function

Include MATLAB code in models that generate embeddable C code

• Library:
• Simulink / User-Defined Functions

HDL Coder / User-Defined Functions

• ## Description

With a MATLAB Function block, you can write a MATLAB® function for use in a Simulink® model. The MATLAB function executes for simulation and generates code for a Simulink Coder™ target. If you are new to Simulink and MATLAB products, see Implement MATLAB Functions in Simulink with MATLAB Function Blocks for an overview.

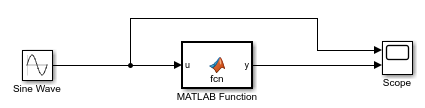

Double-clicking the MATLAB Function block opens the MATLAB Function Block Editor, where you write the MATLAB function. The example model `call_stats_block2` discussed in Implement MATLAB Functions in Simulink with MATLAB Function Blocks uses the following function in the MATLAB Function Block Editor:

```function [mean,stdev] = stats(vals) % Calculates a statistical mean and a standard % deviation for the values in vals. len = length(vals); mean = avg(vals,len); stdev = sqrt(sum(((vals-avg(vals,len)).^2))/len); plot(vals,"-+"); function mean = avg(array,size) mean = sum(array)/size;```

The function specifies the input and output data in the function declaration statement as arguments and return values. The argument and return values of the preceding example function correspond to the inputs and outputs of the block in the `call_stats_block2` model. You can also define variables, add an input trigger, and create function call outputs by using the Model Explorer or the Symbols pane. For more information, see Create and Define MATLAB Function Block Variables, Manage the Input Trigger of a MATLAB Function Block, and Manage Function Call Outputs of a MATLAB Function Block.

The MATLAB Function block generates efficient embeddable code based on an analysis that determines the size, class, and complexity of each variable. This analysis imposes the following restrictions:

• The first assignment to a variable defines its, size, class, and complexity.

• You cannot reassign variable properties after the initial assignment except when using variable-size data or reusing variables in the code for different purposes.

In addition to language restrictions, the MATLAB Function block supports a subset of the functions available in MATLAB. These functions include functions in common categories, such as:

For more information, see Functions and Objects Supported for C/C++ Code Generation.

Note

Although the code for this block attempts to produce exactly the same results as MATLAB, differences might occur due to rounding errors. These numerical differences, which might be a few `eps` initially, can magnify after repeated operations. Reliance on the behavior of `nan` is not recommended. Different C compilers can yield different results for the same computation.

Note

New MATLAB Function blocks do not include the `%#codegen` directive, but check for errors as if it is included. Adding the `%#codegen` directive to a MATLAB Function block does not affect error checking. For more information see Compilation Directive %#codegen.

To support visualization of data, the MATLAB Function block supports calls to MATLAB functions for simulation only. See Use MATLAB Engine to Execute a Function Call in Generated Code to understand some of the limitations of this capability, and how it integrates with code analysis for this block. If these function calls do not directly affect any of the Simulink inputs or outputs, the calls do not appear in Simulink Coder generated code.

From MATLAB Function blocks, you can also call functions defined in a Simulink Function block. You can call Stateflow® functions with Export Chart Level Functions (Make Global) and Allow exported functions to be called by Simulink checked in the chart Properties dialog box.

In the Symbols pane, you can declare a block input to be a Simulink parameter instead of a port. The MATLAB Function block also supports inheritance of types and size for inputs, outputs, and parameters. You can also specify these properties explicitly. See Define and Modify Variable Data Types, Specify Size of MATLAB Function Block Variables, and Configure MATLAB Function Block Parameter Variables for descriptions of variables that you use in MATLAB Function blocks.

Recursive calls are not allowed in MATLAB Function blocks.

By default, MATLAB Function blocks have direct feedthrough enabled. To disable it, clear the Allow direct feedthrough property. Nondirect feedthrough semantics ensure that outputs rely only on the current state. Using nondirect feedthrough enables you to use MATLAB Function blocks in a feedback loop and prevent algebraic loops. For more information, see Use Nondirect Feedthrough in a MATLAB Function Block.

## Ports

### Input

expand all

Input port, specified as a scalar, vector, or matrix. Each input variable that you create has a corresponding input port.

Data types supported by MATLAB but not supported by Simulink may not be passed between the Simulink model and the function within the MATLAB Function block. These types may be used within the MATLAB Function block.

For more information on fixed-point support for this block, refer to Fixed-Point Data Types with MATLAB Function Block (Fixed-Point Designer) and MATLAB Function Block with Data Type Override (Fixed-Point Designer).

#### Dependencies

To create input ports, open the block and create input variables in the Symbols pane. See Create and Define MATLAB Function Block Variables.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `Boolean` | `string` | `fixed point` | `enumerated` | `bus`

### Output

expand all

Output port, specified as a scalar, vector, or matrix. Each output variable that you create has a corresponding output port.

#### Dependencies

To create output ports, open the block and create output variables in the Symbols pane. See Create and Define MATLAB Function Block Variables.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `Boolean` | `string` | `fixed point` | `enumerated` | `bus`

## Parameters

expand all

### Main

Select how to display port labels on the MATLAB Function block icon.

• `none` – Do not display port labels.

• `FromPortIcon` – Display the name of the input and output variables.

• `FromPortBlockName` – Display the name of the input and output variables.

• `SignalName` – If the signal connected to the port is named, display the signal name. Otherwise, display the name of the variables.

#### Programmatic Use

 Parameter: `ShowPortLabels` Type: string scalar or character vector Value: `"none"` | `"FromPortIcon"` | `"FromPortBlockName"` | `"SignalName"` Default: `"FromPortIcon"`

Control user access to the contents of the MATLAB Function block.

• `ReadWrite` – Enable opening and modifying of MATLAB Function block contents.

• `ReadOnly` – Enable opening of the MATLAB Function block.

• `NoReadOrWrite` – Disable opening or modifying of the MATLAB Function block.

Note

When you attempt to view the contents of a MATLAB Function block whose Read/Write permissions parameter is `NoReadOrWrite`, the block does not respond. For example, when you double-click the MATLAB Function block, Simulink does not open the table contents and does not display messages.

#### Programmatic Use

 Parameter: `Permissions` Type: string scalar or character vector Value: `"ReadWrite"` | `"ReadOnly"` | `"NoReadOrWrite"` Default: `"ReadWrite"`

Whether the block attempts to eliminate artificial algebraic loops that include the atomic unit during simulation.

• off – Do not try to eliminate any artificial algebraic loops that include the atomic unit.

• on – Try to eliminate any artificial algebraic loops that include the atomic unit.

#### Programmatic Use

 Parameter: `MinAlgLoopOccurrences` Type: string scalar or character vector Value: `"off"` | `"on"` Default: `"off"`

Specify whether variables in this block must run at the same rate or can run at different rates.

• If variables in the MATLAB Function block can run at different rates, specify the sample time as inherited (`-1`).

• If variables must run at the same rate, specify the sample time, `Ts`, corresponding to this rate.

#### Programmatic Use

 Parameter: `SystemSampleTime` Type: string scalar or character vector Value: `"-1"` | `"[Ts 0]"` Default: `"-1"`

### Code Generation

To enable these parameters, you must have a Simulink Coder or Embedded Coder® license.

Select the code format the block uses to generate code for an atomic (nonvirtual) unit.

• `Auto`Simulink Coder and Embedded Coder choose the optimal format for you based on the type and number of instances of the MATLAB Function block that exist in the model.

• `Inline`Simulink Coder and Embedded Coder inline the MATLAB Function block unconditionally.

• `Nonreusable function`Simulink Coder explicitly generates a separate function in a separate file.

• `Reusable function`Simulink Coder and Embedded Coder generate a function with arguments that allows reuse of block code when a model includes multiple instances of the block.

This option also generates a function with arguments that allows MATLAB Function block code to be reused in the generated code of a model reference hierarchy that includes multiple instances of a MATLAB Function block across referenced models. In this case, the block must be in a library.

#### Tips

• When you want to represent multiple instances of a MATLAB Function block to be represented as one reusable function, you can designate each one of them as `Auto` or as `Reusable function`. It is best to use one or the other, as using both creates two reusable functions, one for each designation. The outcomes of these choices differ only when reuse is not possible. Selecting `Auto` does not allow control of the function or file name for the MATLAB Function block code.

• The `Reusable function` and `Auto` options both try to determine if multiple instances of a MATLAB Function block exist and if the code can be reused. The difference between the options' behavior is that when reuse is not possible:

• `Auto` yields inlined code, or if circumstances prohibit inlining, separate functions for each MATLAB Function block instance.

• `Reusable function` yields a separate function with arguments for each MATLAB Function block instance in the model.

• If you select `Reusable function` while your generated code is under source control, set File name options to `Use subsystem name`, `Use function name`, or `User specified`. Otherwise, the names of your code files change whenever you modify your model, which prevents source control on your files.

#### Programmatic Use

 Parameter: `RTWSystemCode` Type: string scalar or character vector Value: `"Auto"` | `"Inline"` | `"Nonreusable function"` | `"Reusable function"` Default: `"Auto"`

Select how Simulink Coder names the function it generates for the block.

If you have an Embedded Coder license, you can control function names with options on the Configuration Parameter Code Generation > Identifiers pane.

• `Auto` – Assign a unique function name using the default naming convention, `model_block()`, where `model` is the name of the model and `block` is the name of the block (or that of an identical one when code is being reused).

• `Use subsystem name` – Use the MATLAB Function block name as the function name. By default, the function name uses the naming convention `model_block`.

Note

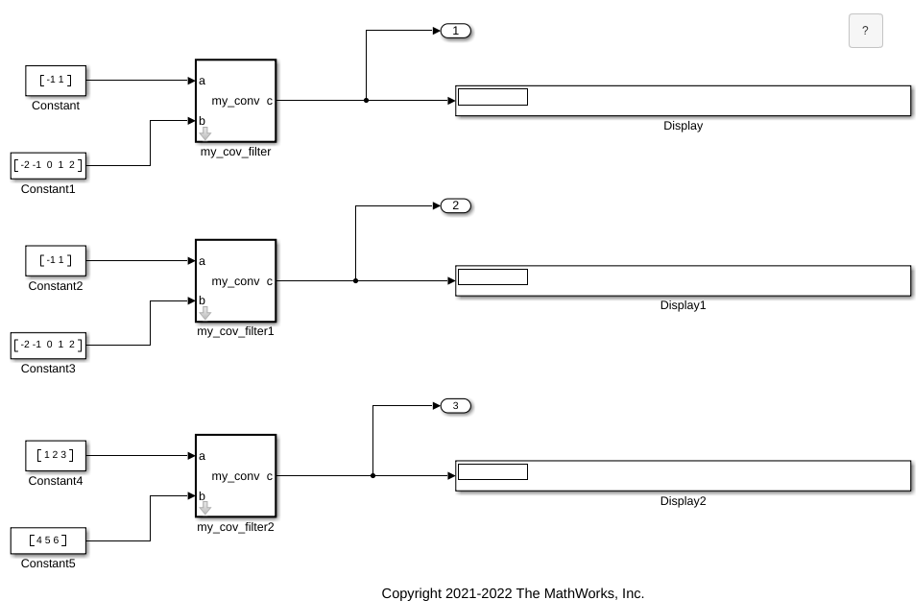

When a MATLAB Function block is in a library block and the Function packaging parameter is set to `Reusable function`, if you set the `Use subsystem name` option, the code generator uses the name of the library block for the function name and file name.

• `User specified` – Enable the Function name field. Enter any legal C or C++ function name, which must be unique.

For more information, see Generate Subsystem Code as Separate Function and Files (Simulink Coder).

#### Dependencies

To enable this parameter, set Function packaging to ```Nonreusable function``` or ```Reusable function```.

#### Programmatic Use

 Parameter: `RTWFcnNameOpts` Type: string scalar or character vector Value: `"Auto"` | ```"Use subsystem name"``` | ```"User specified"``` Default: `"Auto"`

Name of the function for the block code.

Use this parameter if you want to give the function a specific name instead of using an autogenerated name or the block name. For more information, see Generate Subsystem Code as Separate Function and Files (Simulink Coder).

#### Dependencies

To enable this parameter, set the Function name options parameter to ```User specified```.

#### Programmatic Use

 Parameter: `RTWFcnName` Type: string scalar or character vector Value: `""` | ```""``` Default: `""`

How Simulink Coder names the separate file for the function it generates for the block.

• `Auto` – Depending on the configuration of the block and how many instances are in the model, `Auto` yields different results:

• If the code generator does not generate a separate file for the block, the block code is generated within the code module generated from the block parent system. If the block parent is the model itself, the block code is generated within `model.c` or `model.cpp`.

• If you select ```Reusable function``` for the Function packaging parameter and your generated code is under source control, consider specifying a File name options value other than `Auto`. This prevents the generated file name from changing due to unrelated model modifications, which is problematic for using source control to manage configurations.

• If you select ```Reusable function``` for the Function packaging parameter and there are multiple instances of the block in a model reference hierarchy, in order to generate reusable code for the block, File name options must be set to `Auto`.

• `Use subsystem name` – The code generator generates a separate file, using the block name as the file name.

Note

When File name options is set to `Use subsystem name`, the block file changes if the model contains Model blocks, or if a model reference target is being generated for the model. In these situations, the file name for the MATLAB Function block consists of the block name prefixed by the model name.

• `Use function name` – The code generator uses the function name specified by Function name options as the file name.

• `User specified` – This option enables the File name (no extension) text entry field. The code generator uses the name you enter as the file name. Enter any file name, but do not include the `.c` or `.cpp` (or any other) extension. This file name need not be unique.

Note

While a MATLAB Function block source file name need not be unique, you must avoid giving nonunique names that result in cyclic dependencies (for example, `sys_a.h` includes `sys_b.h`, `sys_b.h` includes `sys_c.h`, and `sys_c.h` includes `sys_a.h`).

#### Dependencies

To enable this parameter, set Function packaging to ```Nonreusable function``` or ```Reusable function```.

#### Programmatic Use

 Parameter: `RTWFileNameOpts` Type: string scalar or character vector Value: `"Auto"` | ```"Use subsystem name"``` | `"Use function name"` | `"User specified"` Default: `"Auto"`

Name of the generated file. The file name that you specify does not have to be unique. However, avoid giving non-unique names that result in cyclic dependencies (for example, `sys_a.h` includes `sys_b.h`, `sys_b.h` includes `sys_c.h`, and `sys_c.h` includes `sys_a.h`).

For more information, see Generate Subsystem Code as Separate Function and Files (Simulink Coder).

#### Dependencies

To enable this parameter, set File name options to ```User specified```.

#### Programmatic Use

 Parameter: `RTWFileName` Type: string scalar or character vector Value: `""` | ```""``` Default: `""`
