loadVariablesFromExternalSource
Load variables from a custom file into Simulink.SimulationInput
object
Since R2022b
Syntax
Description
simIn = loadVariablesFromExternalSource(
loads variables from the custom file simIn
,'filename
')filename
into the
Variables
property of the Simulink.SimulationInput
object simIn
using the custom adapter registered for the file
format.
simIn = loadVariablesFromExternalSource(
loads variables from a custom file into the simIn
,'filename
',Name,Value
)Variables
property of a
Simulink.SimulationInput
object simIn
with options
specified using one or more name-value arguments.
For information on writing a custom file adapter, see Create External File Adapter for Loading Variables into Simulink.SimulationInput Object.
Examples
Load Variables from Custom File Format for Multiple Simulations
This example shows how you can load variables into a Simulink.SimulationInput
object from a custom file source, and run parallel simulations with those variables. To enable this, write and register an adapter. In this example, we use a model of a road suspension system. that we want to simulate with different sets of variables. The set of variables and their values for simulations is stored in the Excel files CompactAndMidsizeCar.xls and LargeCars.xls
For the simulations, we have stored different sets of variable values in the Excel files CompactAndMidsizeCar.xls
and LargeCars.xls
. Normally, you write a script to load variables into the base workspace, and then run your simulation. In this example, you load the variables directly into a Simulink.SimulationInput
object and run simulations without changing the base workspace.
Register Adapter
To load the variables from a custom file format, you first must to write and register an adapter. Simulink.data.adapters.excel_example_adapter
enables loading data from your custom file format. For more information on creating and registering adapters, see..
Simulink.data.adapters.registerAdapter('Simulink.data.adapters.excel_example_adapter')
ans = logical
1
Create Simulink.SimulationInput
Object
First, create the Simulink.SimulationInput
object for the ex_loadvar_sldemo_suspn_3dof
model.
mdl = 'ex_loadvar_sldemo_suspn_3dof';
in = Simulink.SimulationInput(mdl)
in = SimulationInput with properties: ModelName: 'ex_loadvar_sldemo_suspn_3dof' InitialState: [0x0 Simulink.op.ModelOperatingPoint] ExternalInput: [] ModelParameters: [0x0 Simulink.Simulation.ModelParameter] BlockParameters: [0x0 Simulink.Simulation.BlockParameter] Variables: [0x0 Simulink.Simulation.Variable] PreSimFcn: [] PostSimFcn: [] UserString: '' VariantConfiguration: ''
Load Variables from External File Source
You can now use the adapter to load variables from Excel files into a SimulationInput
object by using the loadVariablesFromExternalSource
function.
Multiple variable sets are saved in different files and in different sheets. To load the variables, first create a cell array named fileAndSectionNames
of file-section paris. Each row in this cell array represents the data for a single simulation. Section represents the sheet or sheets present in the excel files.
fileAndSectionNames = { {'CompactAndMidsizeCar.xls', 'CompactCar'}; {'CompactAndMidsizeCar.xls', 'Midsize'}; {'LargeCars.xls', 'LargeCar'}; {'LargeCars.xls', 'LargeSUV'}; }
fileAndSectionNames=4×1 cell array
{1x2 cell}
{1x2 cell}
{1x2 cell}
{1x2 cell}
Next, create an array of Simulink.SimulationInput
objects and use the loadVariablesFromExternalSource
method to load the variable sets into the array. To load variables from specific sheets from the excel files, use the 'Section'
argument of the loadVariablesFromExternalSource
method.
simIn = Simulink.SimulationInput.empty(length(fileAndSectionNames), 0); for i = 1 : length(fileAndSectionNames) simIn(i) = Simulink.SimulationInput(mdl); simIn(i) = simIn(i).loadVariablesFromExternalSource(fileAndSectionNames{i}{1}, ... 'Section', fileAndSectionNames{i}{2}) end
simIn = SimulationInput with properties: ModelName: 'ex_loadvar_sldemo_suspn_3dof' InitialState: [0x0 Simulink.op.ModelOperatingPoint] ExternalInput: [] ModelParameters: [0x0 Simulink.Simulation.ModelParameter] BlockParameters: [0x0 Simulink.Simulation.BlockParameter] Variables: [1x5 Simulink.Simulation.Variable] PreSimFcn: [] PostSimFcn: [] UserString: '' VariantConfiguration: ''
simIn=1×2 SimulationInput array with properties:
ModelName
InitialState
ExternalInput
ModelParameters
BlockParameters
Variables
PreSimFcn
PostSimFcn
UserString
VariantConfiguration
simIn=1×3 SimulationInput array with properties:
ModelName
InitialState
ExternalInput
ModelParameters
BlockParameters
Variables
PreSimFcn
PostSimFcn
UserString
VariantConfiguration
simIn=1×4 SimulationInput array with properties:
ModelName
InitialState
ExternalInput
ModelParameters
BlockParameters
Variables
PreSimFcn
PostSimFcn
UserString
VariantConfiguration
Run Multiple Simulations
To run multiple simulations, use the parsim
function with the Simulink.SimulationInput
object. Data in each file is isolated and has no impact on simulations that use data from the other files, regardless of the order in which the files are specified.
simOut = parsim(simIn)
[20-Jul-2024 19:21:59] Checking for availability of parallel pool... Starting parallel pool (parpool) using the 'Processes' profile ... Connected to parallel pool with 4 workers. [20-Jul-2024 19:22:32] Starting Simulink on parallel workers... [20-Jul-2024 19:23:05] Configuring simulation cache folder on parallel workers... [20-Jul-2024 19:23:05] Loading model on parallel workers... [20-Jul-2024 19:23:36] Running simulations... [20-Jul-2024 19:23:48] Completed 1 of 4 simulation runs [20-Jul-2024 19:23:48] Received simulation output (size: 3.06 MB) for run 1 from parallel worker. [20-Jul-2024 19:23:48] Completed 2 of 4 simulation runs [20-Jul-2024 19:23:48] Received simulation output (size: 3.06 MB) for run 2 from parallel worker. [20-Jul-2024 19:23:49] Completed 3 of 4 simulation runs [20-Jul-2024 19:23:49] Received simulation output (size: 3.06 MB) for run 3 from parallel worker. [20-Jul-2024 19:23:49] Completed 4 of 4 simulation runs [20-Jul-2024 19:23:49] Received simulation output (size: 3.06 MB) for run 4 from parallel worker. [20-Jul-2024 19:23:49] Cleaning up parallel workers...
simOut = 1x4 Simulink.SimulationOutput array

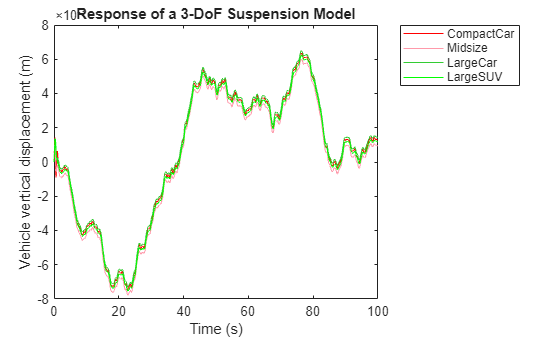

To plot the results, plotResult
uses a MATLAB® timeseries object. The timeseries object ts
stores the time and data values for the logged signal. The plot
function plots the data against the simulation time. The plot shows the results for the simulations that uses the variable values loaded from the Excel files.
plotResult(fileAndSectionNames, simOut)
As the last step, unregister the adapter.
Simulink.data.adapters.unregisterAdapter('Simulink.data.adapters.excel_example_adapter')
ans = logical
1
Input Arguments
simIn
— Simulation inputs and configuration
Simulink.SimulationInput
object
Simulation inputs and configuration, specified as a
Simulink.SimulationInput
object.
filename
— Name of custom external file
character vector | string
Name of custom external file, specified as a character vector or a string.
To use a custom file format, register an adapter that the method
loadVariablesFromExternalSource
uses to load variables from
filename
into the Simulink.SimulationInput
object.
filename
must be specified with its extension.
Example: 'myFile'
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: simIn =
loadVariablesFromExternalSource(simIn,'filename','Append','on')
Section
— Section names in custom file
character vector
Section names in custom file from which variables are loaded, specified as a character vector or a string.
Append
— Option to append new loaded variables
'off'
(default) | 'on'
Option to append new loaded variables to existing variables in a
Simulink.SimulationInput
object, specified as
'off'
or 'on'
.
By default, the loaded variables and their values override the variables and
values already present in the Variable
property of the
Simulink.SimulationInput
object.
Workspace
— Workspace for loaded variables
'global-workspace'
(default) | 'modelName'
Workspace for loaded variables, specified as 'global-workspace'
or 'modelName'
.
Context
— Context for loaded variables within global workspace
'modelName'
Context for loaded variables within global workspace, specified as a string.
When the parameter 'EnforceDataConsistency'
is set to
off
, the current model and the models below it in the model
hierarchy can use variables with the same name but different values as long as each
model in the hierarchy can see only one definition of the variable. These variables
that have the same name are only attached to their respective models. In such a case,
the Context
option allows you to set the scope of the
variable.
Output Arguments
simIn
— Simulation configuration with variables from custom file format added
Simulink.SimulationInput
object
Simulation configuration with variables from custom file format added, returned as a
Simulink.SimulationInput
object.
Version History
Introduced in R2022b
