Average Model Coverage for Project
Note
Starting in R2026a, the Project Model Testing dashboard
no longer uses or displays this metric. This metric ID
will be removed in a future release. To view project metric results, use the widgets in the
Project Model Testing dashboard as shown in Summarize Status of Testing for Project. You can continue to
access model testing metrics using the metric.Engine APIs.
Metric ID
project.mt.ComponentCoverageBreakdownAverage
Description

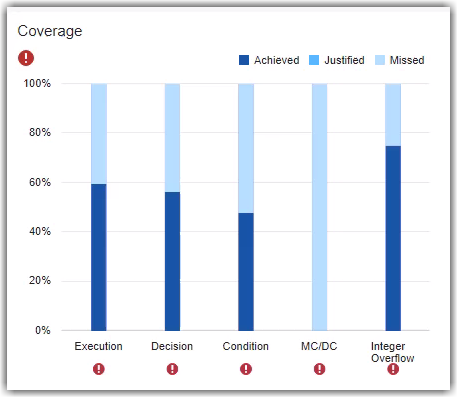

This metric returns the average execution, decision, condition, MC/DC, and integer overflow coverage across the components in the project.
Supported Artifacts
This metric collects metric results for Units in the project. To control what the dashboard classifies as a unit, see Categorize Models in Hierarchy as Components or Units.
Computation Details
The metric:
Calculates the average by using the Model Coverage Breakdown metric results from the components in the project.
Does not include coverage from tests that run in software-in-the-loop (SIL) or processor-in-the-loop (PIL) mode.
Returns 100% coverage for models that do not have coverage points.
Collection
Collecting data for this metric loads the model file and test result files and requires licenses for Simulink® Coverage™ and Simulink Test™.
Compliance Thresholds
This metric does not have predefined thresholds.
