# Steady-State Simulation with Projection-Based Trim Optimizer

This example shows how to find a steady-state operating point for a Simscape™ Multibody™ model using the `findop` function with a projection-based optimizer.

Projection-based optimizers enforce the consistency of the model initial conditions at each evaluation of the objective function or nonlinear constraint function, which can improve trimming results for Simscape models. Using projection-based trim optimizers requires Optimization Toolbox™ software.

### Open Model

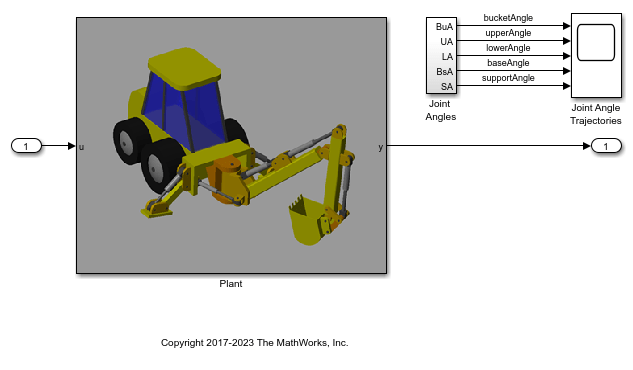

The model for this example is a backhoe system modeled in Simscape Multibody.

```mdl = 'scdbackhoeTRIM'; open_system(mdl) ```

### Define Operating Point Specifications

To define operating point specifications, first create a specification object. The input, output, and state values in `ops` match the model initial conditions.

```opspec = operspec(mdl); ```

Specify that the model outputs are known values for trimming.

```opspec.Outputs(1).Known = true(10,1); ```

Specify known values for the angles in the backhoe system.

```opspec.Outputs(1).y(1) = 0; % Bucket angle opspec.Outputs(1).y(3) = 50; % Upper angle opspec.Outputs(1).y(5) = -50; % Lower angle opspec.Outputs(1).y(7) = 0; % Base angle opspec.Outputs(1).y(9) = -45; % Support angle ```

For the corresponding angular velocities, the known values are zero, which match the model initial conditions in `opspec`.

### Trim Model

Create an option set for trimming and specify the optimizer type using the `OptimizerType` option. For this example use the projection-based gradient-descent solver. To view an iterative update of the trimming progress in the Command Window, set the `DisplayReport` option to `'iter'`.

```opt = findopOptions('OptimizerType','graddescent-proj',... 'DisplayReport','iter'); ```

Specify the maximum number of function evaluations for optimization.

```opt.OptimizationOptions.MaxFunEvals = 20000; ```

Find the steady-state operating point that meets the specifications in `opspec`. This operation takes several minutes.

```op = findop(mdl,opspec,opt); ```
```Optimizing to solve for all desired dx/dt=0, x(k+1)-x(k)=0, and y=ydes. (Maximum Error) Block --------------------------------------------------------- (4.50000e+01) scdbackhoeTRIM/Out1 (3.54436e+00) scdbackhoeTRIM/Out1 (2.29690e-01) scdbackhoeTRIM/Out1 (3.84952e-02) scdbackhoeTRIM/Plant/Mounting Assembly/Mounting Base and Support Arms/Support Arm Right/Revolute Joint Arm (9.31982e-03) scdbackhoeTRIM/Plant/Mounting Assembly/Mounting Base and Support Arms/Support Arm Right/Revolute Joint Arm (7.25867e-04) scdbackhoeTRIM/Plant/Mounting Assembly/Mounting Base and Support Arms/Support Arm Left/Revolute Joint Arm (6.61700e-04) scdbackhoeTRIM/Plant/Mounting Assembly/Mounting Base and Support Arms/Support Arm Left/Revolute Joint Arm (8.93138e-05) scdbackhoeTRIM/Plant/Mounting Assembly/Mounting Base and Support Arms/Support Arm Left/Revolute Joint Arm (1.41327e-05) scdbackhoeTRIM/Plant/Mounting Assembly/Mounting Base and Support Arms/Support Arm Left/Revolute Joint Arm (9.72968e-06) scdbackhoeTRIM/Plant/Cylinder Base to Mounting Plate (1.02408e-06) scdbackhoeTRIM/Plant/Mounting Assembly/Mounting Base and Support Arms/Support Arm Right/Revolute Joint Arm (1.05012e-06) scdbackhoeTRIM/Plant/Cylinder Base to Mounting Plate (1.05012e-06) scdbackhoeTRIM/Plant/Cylinder Base to Mounting Plate Operating point specifications were successfully met. ```

### Simulate Model

Configure the model to use the computed operating point `op` as the model initial condition.

```set_param(mdl,'LoadExternalInput','on') set_param(mdl,'ExternalInput','getinputstruct(op)') set_param(mdl,'LoadInitialState','on') set_param(mdl,'InitialState','getstatestruct(op)') ```

Simulate the model.

```sim(mdl); ```

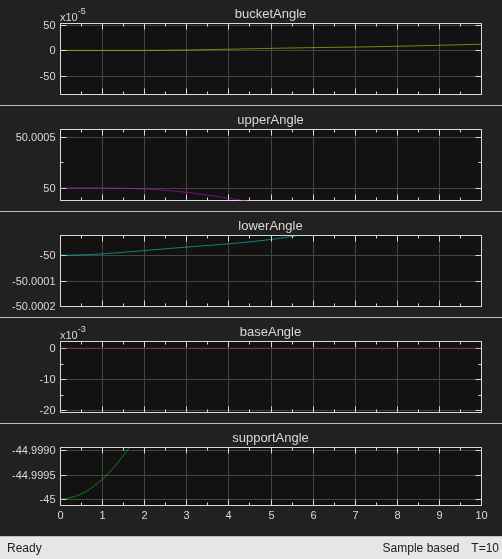

View the joint angle trajectories.

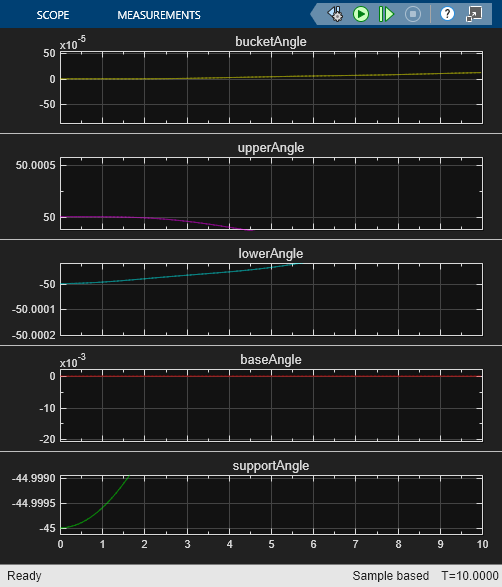

```open_system([mdl, '/Joint Angle Trajectories']) ```

The simulation results show that the five angles are trimmed to their expected values. The trajectory can deviate slightly over time due to numerical noise and instability. You can stabilize the angles using feedback controllers.
