Analyze Coverage and View Results

After you have enabled coverage and selected the metrics you want, you must simulate the model to collect the coverage results.

First, simulate the model by clicking the Analyze Coverage button. When the simulation completes, Simulink® Coverage™ highlights the model objects based on their coverage completeness.

Simulink window after simulation with coverage enabled. The model is highlighted, some blocks are green, red, or grey. On the right side of the model, a coverage report is open, docked in the Simulink window.

The Coverage Details pane opens automatically and displays the coverage report. The report automatically opens in the Details section which lists the coverage results for the model objects. You can scroll up to view the summary section and model information, or scroll down to browse the individual blocks.

The window_system subsystem is colored green because every block inside the subsystem received 100% coverage. The other subsystems are colored red because one or more blocks inside did not receive full coverage.

Point to a subsystem to display a short summary of coverage for each relevant metric. For example, point to the power_window_control_system subsystem block.

Coverage results popup. Decision 100% (2/2), Condition 79% (62/78), MCDC 32% (7/22), Execution 100% (39/39).

If you left click on a block, the Coverage Details pane displays the section of the report for that block. For example, click the power_window_control_system subsystem.

Simulink window after clicking on a subsystem. The docked coverage report shows the section of the report that details coverage results for the subsystem.

You can enter a subsystem to view the granular coverage results for the contents of that subsystem. Double-click the power_window_control_system subsystem to view the coverage results for the blocks it contains. Double-click on validate_passenger and then on check_up.

Click on the And block allow_action to display the relevant section of the report.

Simulink window after clicking on the And block. The And block is red and the coverage report is displayed on the right.

Because the And block outputs the logical combination of the two input signals, if both input signals are true, the output signal is true. You can see from the condition table that input signal 1 was False at every time step, while input signal 2 was True for 878 time steps, and False for 884 time steps.

Condition table for the And block in the coverage report.

Because there are four condition outcomes and one of them did not occur, the allow_action block received 75% condition coverage.

Below the Conditions analyzed table is the MC/DC analysis table.

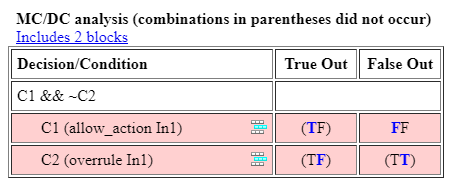

MCDC table for the And block in the coverage report.

The MCDC analysis table lists decision reversals that occur because one condition outcome changes from true to false or from false to true. This table reports that the only the FF case occurred during the simulation for first condition, and neither MCDC objective occurred for the second condition, resulting in 0% MCDC reported.

Command-Line Information

To perform the same steps from the command line, enter:

simOut = sim(simIn);
covData = simOut.covData;
