# Perform Forward and Inverse Kinematics on a Five-Bar Robot

This example shows how to use the `KinematicsSolver`

object to perform forward kinematics (FK) and inverse kinematics (IK) on a five-bar robotic mechanism. First, the example demonstrates how to perform FK analyses to calculate a singularity-free workspace for a five-bar robot. Then the example shows how to perform IK analyses to compute the motor angles that correspond to an end-effector trajectory within that workspace.

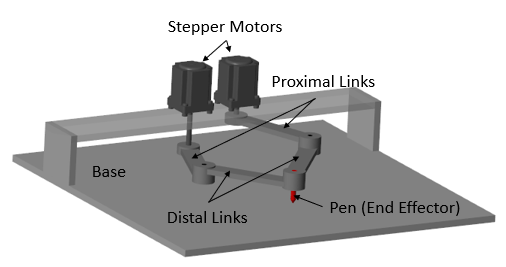

A five-bar robot, which is also called a five-bar planar manipulator, is a two-degree-of-freedom parallel mechanism. In this example, the robot has four equal-length links that cannot collide with each other. The robot uses two stepper motors to drive the proximal links to move the pen.

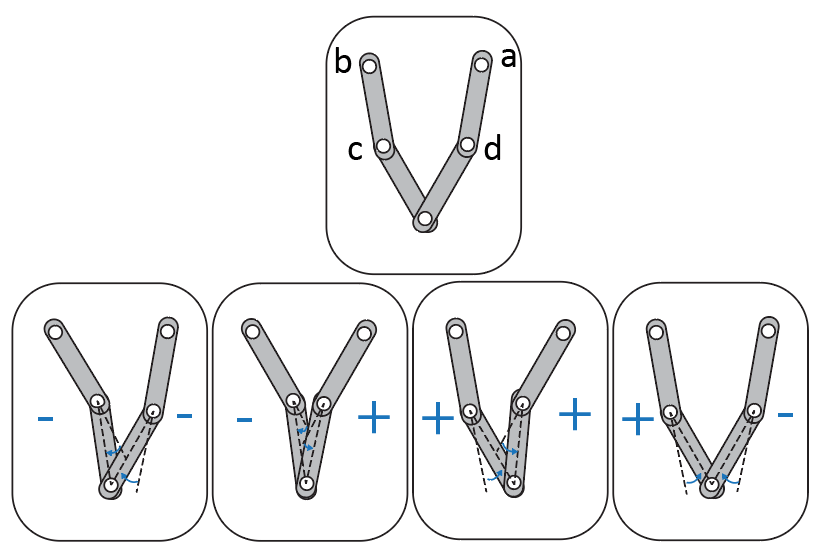

The five-bar robot has four configuration space regimes: `--`

, `-+`

, `++`

, and `+-`

. As shown in the image, each sign indicates the sign of the offset angle between the corresponding proximal and distal links. The active revolute joints `a`

and `b`

are directly controlled by the motors, and the passive revolute joints `c`

and `d`

connect the proximal and distal links.

Configurations in which one or both of the arms become fully extended cause the end effector to lose at least one of its degrees of freedom. These configurations correspond to kinematic singularities and occur when the robot transitions from one regime to another. To avoid the kinematic singularities in the FK analysis, this example only studies the five-bar robot workspace in the `+-`

regime.

### Run Forward Kinematics on the Five-Bar Robot

This section demonstrates how to perform an FK analysis to compute a singularity-free workspace for the pen that corresponds to a set of motor angles. Specifically, the example assigns the active joint angles of the robot as target variables and the *x *and *y *coordinates of the pen as output variables. The example also assigns the passive joints as initial guess variables, which are used to help bias the solutions towards the `+-`

regime.

1. To perform the FK analysis, first load the five-bar robot model into memory and create a `KinematicsSolver`

object (`fk`

) for the model.

```
mdl = "sm_five_bar_robot";
load_system(mdl);
fk = simscape.multibody.KinematicsSolver(mdl);
```

2. To specify and study the relationships between the pen, world frame, active joints, and passive joints of the robot, you need to create frame variables that correspond to the position of the pen with respect to the world frame. Note that you don't need to create joint variables because they are created automatically when the object is constructed.

Add a group of three translational frame variables for the pen to `fk`

. Specify the world frame as the base and the **Tip **frame of the pen as the follower. Name the frame variable group `Pen`

.

base = mdl + "/World Frame/W"; follower = mdl + "/Five Bar Robot/Pen/Pen/Tip"; addFrameVariables(fk,"Pen","Translation", base, follower);

3. Assign the position-based joint variables of the active joints (`j5.Rz.q`

and `j4.Rz.q`

) as targets. To find the IDs of the position-based joint variables, use the `jointPositionVariables`

object function.

jointPositionVariables(fk)

`ans=`*5×4 table*
ID JointType BlockPath Unit
_________ ________________ ______________________________________________________________ _____
"j1.Rz.q" "Revolute Joint" "sm_five_bar_robot/Five Bar Robot/Passive_Joint_c" "deg"
"j2.Rz.q" "Revolute Joint" "sm_five_bar_robot/Five Bar Robot/Passive_Joint_d" "deg"
"j3.Rz.q" "Revolute Joint" "sm_five_bar_robot/Five Bar Robot/Passive_Joint_e" "deg"
"j4.Rz.q" "Revolute Joint" "sm_five_bar_robot/Five Bar Robot/Step_Motor_a/Active_Joint_a" "deg"
"j5.Rz.q" "Revolute Joint" "sm_five_bar_robot/Five Bar Robot/Step_Motor_b/Active_Joint_b" "deg"

targetIDs = ["j5.Rz.q";"j4.Rz.q"]; addTargetVariables(fk,targetIDs);

4. Assign these variables as outputs:

The translational

*x*and*y*components of the pen (`Pen.Translation.x`

and`Pen.Translation.y`

)The joint variables of the passive joints (

`j1.Rz.q`

and`j2.Rz.q`

)

To find the IDs of the frame variables, use the `frameVariables`

object function.

frameVariables(fk)

`ans=`*3×4 table*
ID Base Follower Unit
___________________ _________________________________ ______________________________________________ ____
"Pen.Translation.x" "sm_five_bar_robot/World Frame/W" "sm_five_bar_robot/Five Bar Robot/Pen/Pen/Tip" "m"
"Pen.Translation.y" "sm_five_bar_robot/World Frame/W" "sm_five_bar_robot/Five Bar Robot/Pen/Pen/Tip" "m"
"Pen.Translation.z" "sm_five_bar_robot/World Frame/W" "sm_five_bar_robot/Five Bar Robot/Pen/Pen/Tip" "m"

outputIDs = ["Pen.Translation.x";"Pen.Translation.y";"j1.Rz.q";"j2.Rz.q"]; addOutputVariables(fk,outputIDs);

5. Assign the joint variables of the passive joints (`j1.Rz.q`

and `j2.Rz.q`

) as guesses.

guessIDs = ["j1.Rz.q";"j2.Rz.q"]; addInitialGuessVariables(fk,guessIDs);

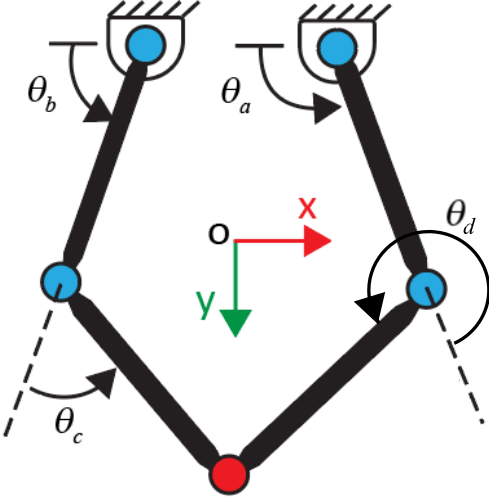

6. The image is a sketch of the five-bar robot. The angles of the active joints are ${\theta}_{\mathit{a}}$ and ${\theta}_{\mathit{b}}$, and the passive joints are ${\theta}_{\mathit{c}}$ and ${\theta}_{\mathit{d}}$. Use a nested `for`

loop to compute the workspace of the pen for a set of active joint angles that vary between [95, 150] and [30, 85] degrees, respectively. To ensure that the robot is in the `+-`

regime, use [50 -50] degrees as the initial values for the guess variables (`j1.Rz.q and`

`j2.Rz.q`

) and then use the latest values of the guess variables to guide the next FK solution.

guesses = [50 -50]; % Initial guesses for theta_c and theta_d index = 1; % Generate angles for theta_a and theta_b theta_a = linspace(95,150,31); theta_b = linspace(30,85,31); % Allocate memory for output data ik_data = zeros(length(theta_a)*length(theta_b),length(outputIDs)); % Calculate the robot's workspace for the given theta_a and theta_b for i = 1:length(theta_a) for j = 1:length(theta_b) targets = [theta_b(j),theta_a(i)]; [outputVec,statusFlag] = solve(fk,targets,guesses); if statusFlag == 1 % Save a solution if its statusFlag is 1 ik_data(index,1:length(outputIDs)) = outputVec; index = index + 1; guesses = [outputVec(3),outputVec(4)]; % Update next guess with last solution end end end

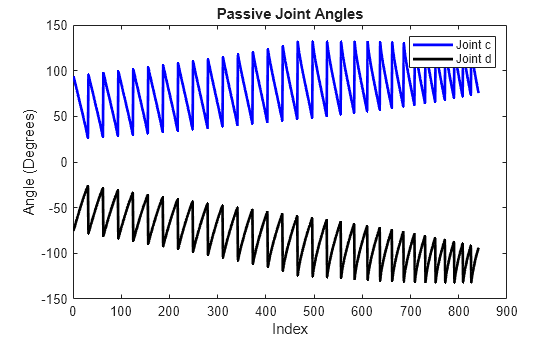

7. Plot the angles of the passive joints to verify if the five-bar robot is in the `+-`

regime. If the robot is in the `+-`

regime, the values of ${\theta}_{\mathit{c}}$ and ${\theta}_{\mathit{d}}$ are consistently positive and negative, respectively.

figure plot(ik_data(1:index-1,3),"b","LineWidth",2); % Note that the total number of the solutions that satisfy statusFlag equals to index-1; hold on plot(ik_data(1:index-1,4),"k","LineWidth",2); hold off title("Passive Joint Angles") xlabel("Index") ylabel("Angle (Degrees)") legend("Joint c","Joint d")

The plot shows that the five-bar robot is in the `+-`

regime. Moreover, the computed workspace is singularity-free because the values of ${\theta}_{\mathit{c}}$ and ${\theta}_{\mathit{d}}$ are away from zero.

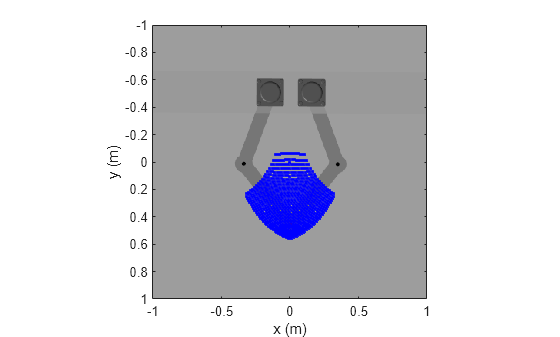

8. Plot the workspace data on the top-view image of the five-bar robot.

% Plot the top-view image of the five-bar robot figure x = [-1 1]; y = [1 -1]; C = imread("top_view_five_bar_robot.png"); image(x,y,C) hold on % Plot the calculated workspace as blue dots plot(ik_data(:,1),ik_data(:,2),"b.") ylabel("y (m)") xlabel("x (m)") axis equal axis([-1 1 -1 1]); hold off

### Run Inverse Kinematics on the Five-Bar Robot

In this section, the example shows how to perform an IK analysis to compute the motor angles that correspond to an end-effector trajectory. Specifically, the example assigns the translational *x *and *y *components of the pen as target variables and assigns the motor angles as output variables. Then the example computes the motor angles for a trajectory of the pen. To ensure the robot is in the `+-`

regime, use the active and passive joint angles as guesses to bias the IK solutions. Note that you need to run the FK section before running this section.

1. Define a circular end-effector trajectory within the previously calculated workspace. Save the coordinates of the circle for the IK analyses.

figure % Plot the calculated workspace as blue dots on the top-view image of the five-bar robot image(x,y,C) hold on plot(ik_data(:,1),ik_data(:,2),"b.") % Specify the center and radius of the circle center_x = 0; % m center_y = 0.3; % m radius = 0.15; % m th = 0:pi/50:2*pi; % radians % Save the x and y coordinates of the circle for the IK analyses coordinates_x = radius * cos(th) + center_x; coordinates_y = radius * sin(th) + center_y; % Plot the circle plot(coordinates_x,coordinates_y,"r","LineWidth",2) axis equal axis([-1 1 -1 1]); ylabel("Length (m)") xlabel("Width (m)") hold off

2. To perform the IK analysis, first create a `KinematicsSolver`

object (`ik`

) for the model.

ik = simscape.multibody.KinematicsSolver(mdl);

3. Create frame variables for the position of the pen with respect to the world frame and add them to the object (`ik`

). You can reuse the base and follower variables from the FK section.

addFrameVariables(ik, "Pen","Translation", base, follower);

4. Assign the variables that correspond to the translational *x *and* y *components of the pen (`Pen.Translation.x`

and `Pen.Translation.y`

) as targets. To find the IDs of the frame variables, use the `frameVariables`

object function.

frameVariables(ik)

`ans=`*3×4 table*
ID Base Follower Unit
___________________ _________________________________ ______________________________________________ ____
"Pen.Translation.x" "sm_five_bar_robot/World Frame/W" "sm_five_bar_robot/Five Bar Robot/Pen/Pen/Tip" "m"
"Pen.Translation.y" "sm_five_bar_robot/World Frame/W" "sm_five_bar_robot/Five Bar Robot/Pen/Pen/Tip" "m"
"Pen.Translation.z" "sm_five_bar_robot/World Frame/W" "sm_five_bar_robot/Five Bar Robot/Pen/Pen/Tip" "m"

targetIds = ["Pen.Translation.x";"Pen.Translation.y"]; addTargetVariables(ik,targetIds);

5. Assign these variables as outputs:

The position-based joint variables of the active joints (

`j5.Rz.q`

and`j4.Rz.q`

)The position-based joint variables of the passive joints (

`j1.Rz.q`

and`j2.Rz.q`

)

To find the IDs of the position-based joint variables, use the `jointPositionVariables`

object function.

jointPositionVariables(ik)

`ans=`*5×4 table*
ID JointType BlockPath Unit
_________ ________________ ______________________________________________________________ _____
"j1.Rz.q" "Revolute Joint" "sm_five_bar_robot/Five Bar Robot/Passive_Joint_c" "deg"
"j2.Rz.q" "Revolute Joint" "sm_five_bar_robot/Five Bar Robot/Passive_Joint_d" "deg"
"j3.Rz.q" "Revolute Joint" "sm_five_bar_robot/Five Bar Robot/Passive_Joint_e" "deg"
"j4.Rz.q" "Revolute Joint" "sm_five_bar_robot/Five Bar Robot/Step_Motor_a/Active_Joint_a" "deg"
"j5.Rz.q" "Revolute Joint" "sm_five_bar_robot/Five Bar Robot/Step_Motor_b/Active_Joint_b" "deg"

outputIds = ["j5.Rz.q";"j4.Rz.q";"j1.Rz.q";"j2.Rz.q"]; addOutputVariables(ik,outputIds);

6. Use a `for`

loop to implement the IK analysis. Specifically, use the `for`

loop to assign the coordinates of the predefined trajectory to the pen and calculate the corresponding motor angles.

N = length(coordinates_x); % Number of points on trajectory index_in_ik = 1; ik_data = zeros(N,length(outputIds)); % Allocate memory for the variable for ind = 1:N targets = [coordinates_x(ind), coordinates_y(ind)]; % Use the x and y coordinates of the predefined circle for the inverse kinematics problem [outputVec_ik,statusFlag_ik] = solve(ik,targets); if statusFlag_ik == 1 viewSolution(ik) % View the solution in the Kinematics Solver Viewer ik_data(index_in_ik,1:length(outputIds)) = outputVec_ik; % save the output data index_in_ik = index_in_ik+1; else error("Did not hit targets"); end end closeViewer(ik);

7. Plot the passive joints of the robot to see if the robot is in the `+-`

regime.

% Plot the angles of the passive joints figure plot(ik_data(:,3),"b","LineWidth",2); hold on plot(ik_data(:,4),"k","LineWidth",2); hold off title("Passive Joint Angles") xlabel("Point") ylabel("Angle (Degrees)") legend("Joint c","Joint d")

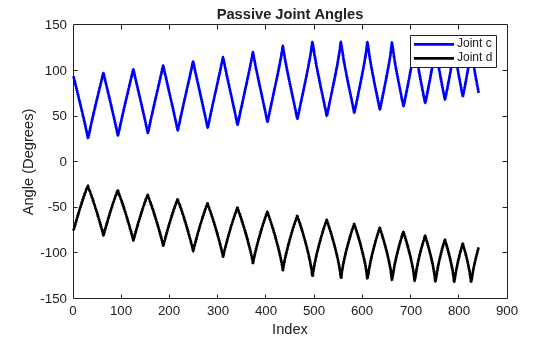

The plot shows that the robot is not always in the `+-`

regime.

During the IK analysis, the Kinematics Solver Viewer opens and shows an animation of the process. The animation also shows that the result is not desired because the five-bar robot is not always in the `+-`

regime. The image shows a snapshot of the animation in the ++ regime.

8. To help ensure that all solutions stay in the +- regime, assign the joint variables of the passive (`j1.Rz.q`

and `j2.Rz.q`

) and active (`j5.Rz.q`

and `j4.Rz.q`

) joints as guesses to bias the IK solutions.

guessIds = ["j1.Rz.q";"j2.Rz.q";"j5.Rz.q";"j4.Rz.q"]; addInitialGuessVariables(ik,guessIds);

Use [50 -50 45 135] degrees as initial values for the guess variables and use the latest values of the guess variables to guide the next IK solution.

guesses = [50 -50 45 135]; % Assign initial guesses for passive and active joints N = length(coordinates_x); index_in_ik = 1; ik_data = zeros(N,length(outputIds)); % Allocate memory for the variable for ind = 1:N targets = [coordinates_x(ind), coordinates_y(ind)]; % Use the x and y coordinates of the prescribed circle for the inverse kinematics problem [outputVec_ik,statusFlag_ik] = solve(ik,targets, guesses); if statusFlag_ik == 1 viewSolution(ik) % View the solution in the Kinematics Solver Viewer ik_data(index_in_ik,1:length(outputIds)) = outputVec_ik; % Save the rotations of the motors index_in_ik=index_in_ik+1; guesses = [outputVec_ik(3) outputVec_ik(4) outputVec_ik(1) outputVec_ik(2)]; % Update next guess with last solution else error("Did not hit targets"); end end closeViewer(ik);

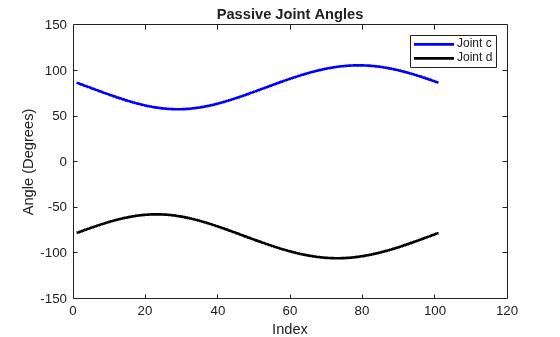

The plot indicates that the passive joint angles are always well away from zero and are always in the `+-`

regime. Therefore, this set of motor angles corresponds to the end effector moving in a smooth motion along the circular trajectory without passing through any kinematic singularities.

% Plot the angles of the passive joints figure plot(ik_data(:,3),"b","LineWidth",2); hold on plot(ik_data(:,4),"k","LineWidth",2); hold off title("Passive Joint Angles") xlabel("Index") ylabel("Angle (Degrees)") legend("Joint c","Joint d")
