Open Circuit (Three-Phase)

Three-phase terminator that draws no current

•

Libraries:
Simscape / Electrical / Connectors & References

Description

The Open Circuit (Three-Phase) block models a three-phase connection that draws no current on any of the three phases.

Examples

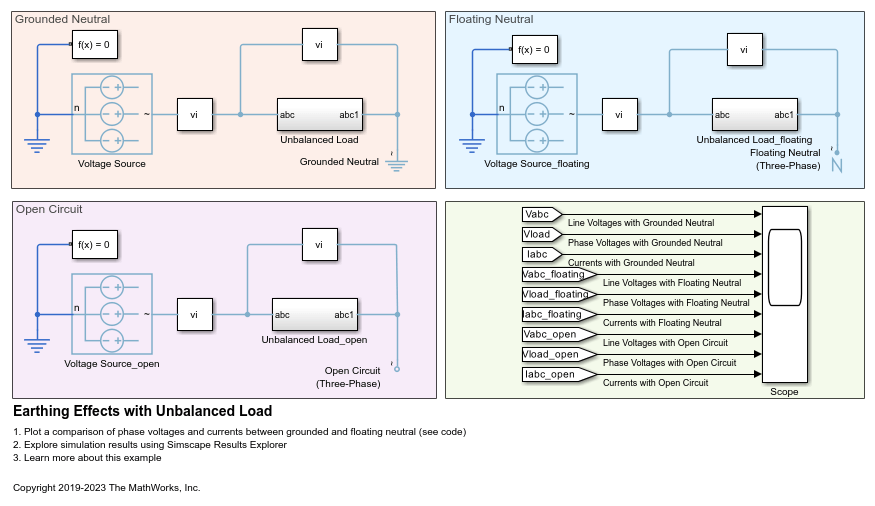

Earthing Effects with Unbalanced Load

The effects of three different types of earthing connections on network voltages and currents.

• Open Model

Three-Phase Three-Level PWM Generator

Use the PWM Generator (Three-phase, Three-level) to control a Three-Level Converter. The upper and lower supply voltages are input to a Neutral point controller, which balances the DC-link capacitor voltages. Reference AC waveforms are used as inputs to the PWM Generator. There is one time scope for the controller waveforms.

• Open Model

Three-Phase Bridge Cycloconverter

A three-phase bridge cycloconverter. The cycloconverter consists of 36 thyristors and has the capacity to lower the frequency of the input voltage. The Control subsystem implements the cycloconverter RMS voltage control. It also provides pulse generation for the firing of the thyristors. The Visualization subsystem contains scopes that allow you to see the simulation results. The simulation time, t, is 1 second. The load increases when Load1 switches on at t = 0.75 seconds.

• Open Model

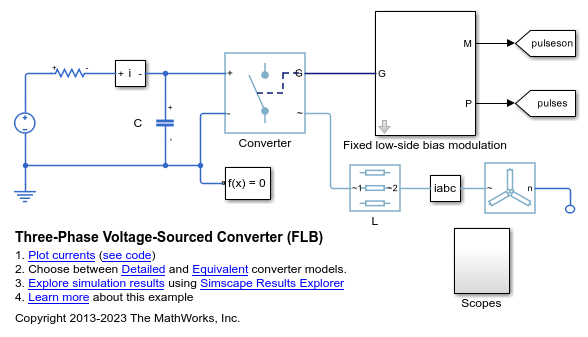

Three-Phase Voltage-Sourced Converter (FLB)

Model a three-phase voltage-sourced converter that uses Fixed Low-side Bias (FLB) modulation. This modulation scheme minimizes the switching in the converter as at any given time one phase is not being pulse modulated. The trade-off is the need for narrower pulses for a given level of acceptable harmonics. The model can be used to support selection of suitable values for L, C and the pulse modulation scheme parameters.

• Open Model

Ports

Conserving

~ — Composite three-phase port

electrical

Electrical conserving port representing the three phases of the three-phase block. For more information, see Three-Phase Ports.

Dependencies

To enable this port, set the Electrical connection parameter to Composite three-phase ports.

a — Phase a of three-phase system

electrical

Electrical conserving port associated with the phase a of the three-phase block.

Dependencies

To enable this port, set the Electrical connection parameter to Expanded three-phase ports.

b — Phase b of three-phase system

electrical

Electrical conserving port associated with the phase b of the three-phase block.

Dependencies

To enable this port, set the Electrical connection parameter to Expanded three-phase ports.

c — Phase c of three-phase system

electrical

Electrical conserving port associated with the phase c of the three-phase block.

Dependencies

To enable this port, set the Electrical connection parameter to Expanded three-phase ports.

Parameters

Electrical connection — Whether to model composite or expanded three-phase ports

Composite three-phase ports (default) | Expanded three-phase ports

Since R2026a

Whether to model composite or expanded three-phase ports.

Composite three-phase ports represent three individual electrical conserving ports with a single block port. You can use composite three-phase ports to build models that correspond to single-line diagrams of three-phase electrical systems.

Expanded three-phase ports represent the individual phases of a three-phase system using three separate electrical conserving ports.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	port_option
Values:	"ee.enum.threePhasePort.composite" (default) | "ee.enum.threePhasePort.expanded"

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2013b

R2026a: The Modeling option parameter has changed

The Modeling option parameter has been replaced with the Electrical connection parameter. You can now also set this parameter value programmatically by using the set_param function.

If you created a model containing this block in an earlier release, the software now automatically sets the value of the Electrical connection parameter to the previous value of the Modeling option parameter.

R2019b: Capping unconnected ports is no longer required

This block is no longer required. Starting in R2019b, the restriction that disallowed unconnected conserving ports in Simscape™ models has been lifted. Now, if you leave a conserving port unconnected, the physical network sets all the Through variables at this port to 0. However, you can still use terminator blocks to improve diagram readability.

There are no plans to remove the terminator blocks. All the existing models using these blocks work the same as in previous releases.
