Two-Phase DC-DC Converter Current Control
This example shows how to control the current of a two-phase interleaved bidirectional DC-DC converter. The two-phase converter comprises two Bidirectional DC-DC Converter with ideal IGBTs. To adjust the duty cycle, the Control subsystem uses a PI-based control algorithm. To reduce the ripple at the output port of the converter, the two phases are switched with the same duty ratio but with a relative phase shift of 180 degrees. The Scopes subsystem contains scopes that allow you to see the simulation results.
Model
Simulation Results from Simscape Logging

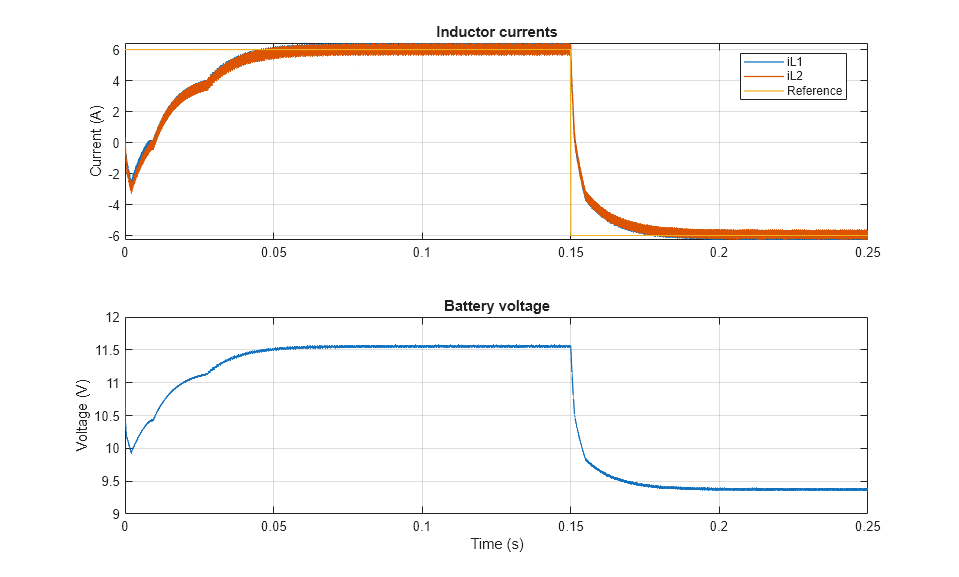

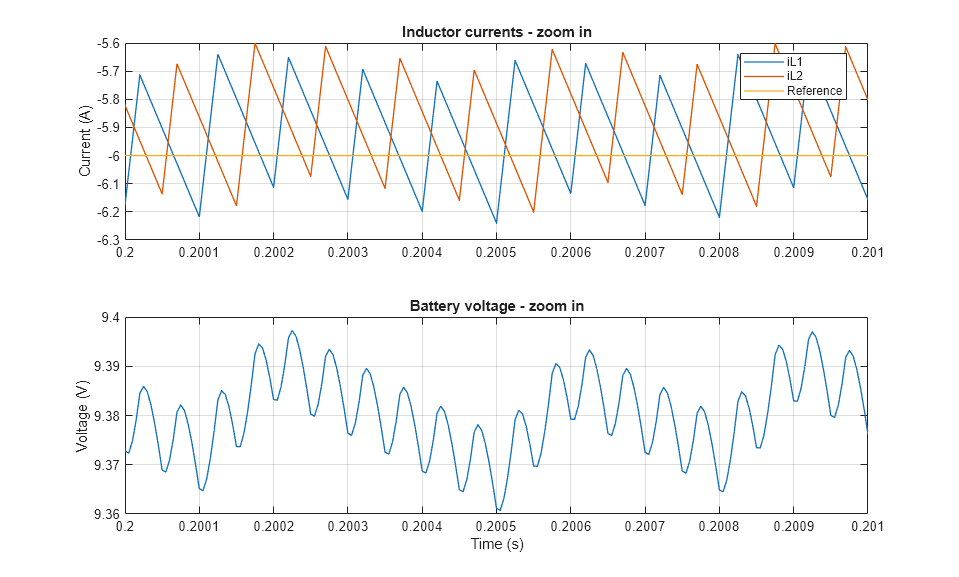

The plot below shows the requested and measured inductor currents for the test and the battery voltage in the 12V network.
