Create triggers to activate other systems

Trigger actions within your Stateflow® chart or other Simulink® subsystems by using events. Trigger external actions by sending events to other charts in your Simulink model. For more information on sending events to the Schedule Editor to schedule the execution of aperiodic partitions, see Events in Schedule Editor (Simulink).


Sequence ViewerDisplay messages, events, states, transitions, and functions between blocks during simulation

Stateflow Syntax

expand all

Event Generation

changeGenerate implicit event when data changes value
enterGenerate implicit event when state becomes active
exitGenerate implicit event when state becomes inactive
sendBroadcast message or event

Event Based Temporal Logic

afterExecute chart after event broadcast or specified time
atExecute chart at event broadcast or specified time
beforeExecute chart before event broadcast or specified time
countChart executions during which condition is valid
everyExecute chart at regular intervals

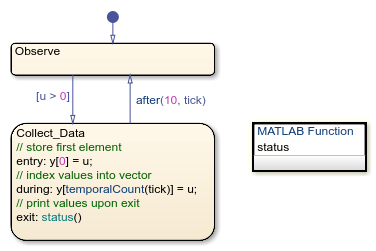

temporalCountNumber of events, chart executions, or time since state became active
