# survival

Calculate survival of Cox proportional hazards model

## Syntax

s = survival(coxMdl)
s = survival(coxMdl,X)
s = survival(coxMdl,X,Stratification)
s = survival(___,'Time',T)
[s,Tout] = survival(___)

## Description

s = survival(coxMdl) estimates the baseline survival function of a Cox proportional hazards model coxMdl. The survival function at time t is the estimated probability of survival until time t. The term baseline refers to the survival function at the determined baseline of the predictors. This value is stored in coxMdl.Baseline, and the default value is the mean of the data set used for training.

example

s = survival(coxMdl,X) estimates the survival function when the predictors have the values in X. In this case, s is a column for each row of X.

example

s = survival(coxMdl,X,Stratification) estimates the survival function for the given value of the stratification variable Stratification. You must have one row in Stratification for each row in X. NoteWhen you train coxMdl using stratification variables and pass predictor variables X, survival also requires you to pass stratification variables.

example

s = survival(___,'Time',T) computes the survival at times T using any of the input argument combinations in the previous syntaxes.

example

[s,Tout] = survival(___) also returns the times Tout at which each survival estimate is calculated.

## Examples

collapse all

Perform a Cox proportional hazards regression on the lightbulb data set, which contains simulated lifetimes of light bulbs. The first column of the light bulb data contains the lifetime (in hours) of two different types of bulbs. The second column contains a binary variable indicating whether the bulb is fluorescent or incandescent; 0 indicates the bulb is fluorescent, and 1 indicates it is incandescent. The third column contains the censoring information, where 0 indicates the bulb was observed until failure, and 1 indicates the observation was censored.

Fit a Cox proportional hazards model for the lifetime of the light bulbs, accounting for censoring. The predictor variable is the type of bulb.

load lightbulb coxMdl = fitcox(lightbulb(:,2),lightbulb(:,1), ... 'Censoring',lightbulb(:,3));

Calculate the baseline survival function as a function of time t, meaning the probability that a light bulb fails after time t. By default, the baseline is calculated for the mean of the predictor, which in this case is mean(lightbulb(:,2)) = 0.5. Return the times Tout at which the survival function is calculated.

[s,Tout] = survival(coxMdl);

Plot the survival as a stairstep graph of time. (The times Tout are also in coxMdl.Hazard(:,1).)

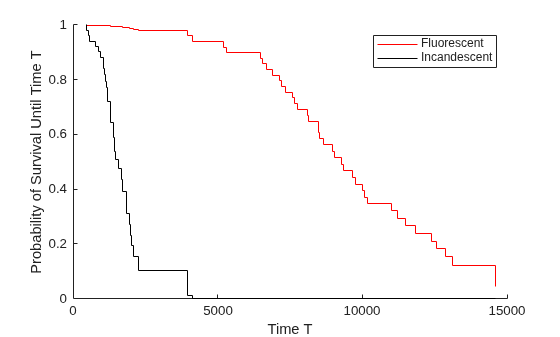

hold on; stairs(Tout,s,'b-') xlabel 'Time \it t' ylabel 'Probability of failure after time \it t' Overlay the plot with the survival functions for fluorescent and incandescent bulbs.

s_fluorescent = survival(coxMdl,0); s_incandescent = survival(coxMdl,1); stairs(Tout,s_fluorescent,'r-') stairs(Tout,s_incandescent,'k-') legend('Baseline','Fluorescent','Incandescent') hold off To create plots without first creating the survival data, use plotSurvival.

Load the coxModel data. (This simulated data is generated in the example Cox Proportional Hazards Model Object.) The model named coxMdl has three stratification levels (1, 2, and 3) and a predictor X with three categorical values (1, 1/20, and 1/100).

load coxModel

Calculate the survival function for X = 1 at the three stratification levels.

c1 = categorical(1); X = [c1;c1;c1]; stratification = [1;2;3]; s = survival(coxMdl,X,stratification);

Plot the three survival functions. First, find the times for the three stratification levels.

t1 = find(coxMdl.Hazard(:,3) == 1); t1 = coxMdl.Hazard(t1,1); t2 = find(coxMdl.Hazard(:,3) == 2); t2 = coxMdl.Hazard(t2,1); t3 = find(coxMdl.Hazard(:,3) == 3); t3 = coxMdl.Hazard(t3,1);

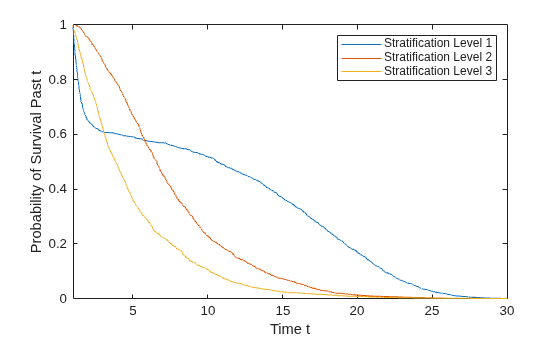

Plot the survival for the three levels. View the plot for times 1 through 30.

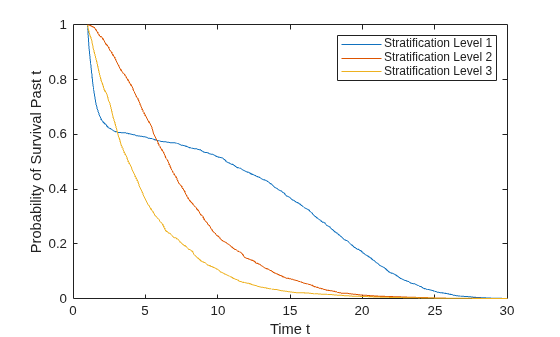

plot(t1,s{1},t2,s{2},t3,s{3}) xlim([1,30]) legend('Stratification Level 1','Stratification Level 2','Stratification Level 3','Location','northeast') xlabel('Time t') ylabel('Probability of Survival Past t') Alternatively, evaluate the survival for times 1 through 30 by specifying the Time argument.

t = linspace(1,30,300); st = survival(coxMdl,X,stratification,'Time',t); figure plot(t,st{1},t,st{2},t,st{3}) legend('Stratification Level 1','Stratification Level 2','Stratification Level 3','Location','northeast') xlabel('Time t') ylabel('Probability of Survival Past t') ## Input Arguments

collapse all

Fitted Cox proportional hazards model, specified as a CoxModel object. Create coxMdl using fitcox.

Predictors for the model, specified as an array of predictors of the same type used for training coxMdl. Each row of X represents one set of predictors.

Data Types: double | table | categorical

Stratification level, specified as a variable or variables of the same type used for training coxMdl. Specify the same number of rows in Stratification as in X.

Data Types: single | double | logical | char | string | table | cell | categorical

Times for survival estimates, specified as a real vector. survival sorts the specified times and converts them to a column vector, if necessary. The resulting values are linearly interpolated from times in the training data.

Example: 0:40

Data Types: double

## Output Arguments

collapse all

Survival estimates, returned as a numeric column vector or a cell array of numeric column vectors.

• For a nonstratified model, s is a sorted numeric column vector of estimated probabilities.

• For a stratified model, s is a cell array of sorted numeric column vectors of the estimated probabilities for each stratification level.

survival returns a column of survival estimates for each row of X.

Times for survival estimates, returned as one of the following.

• For a nonstratified model, Tout is a sorted numeric column vector of times in the training set.

• For a stratified model, Tout is a cell array of sorted numeric column vectors of the training times in the training set for each stratification level.

The coxMdl.Hazard(:,1) vector contains the times for both stratified and nonstratified models. For stratified models, the times for different stratification levels are separated by a 0 entry.

Data Types: double | cell

## Version History

Introduced in R2021a
