## Delete-1 Statistics

### Delete-1 Change in Covariance (`CovRatio`

)

#### Purpose

Delete-1 change in covariance (`CovRatio`

) identifies the
observations that are influential in the regression fit. An influential
observation is one where its exclusion from the model might significantly alter
the regression function. Values of `CovRatio`

larger than 1 +
3**p*/*n* or smaller than 1 –
3**p*/*n* indicate influential points,
where *p* is the number of regression coefficients, and
*n* is the number of observations.

#### Definition

The `CovRatio`

statistic is the ratio of the determinant of
the coefficient covariance matrix with observation *i* deleted
to the determinant of the covariance matrix for the full model:

$$\text{CovRatio}=\frac{\mathrm{det}\left\{MSE\left(i\right){\left[{X}^{\prime}\left(i\right)X\left(i\right)\right]}^{-1}\right\}}{\mathrm{det}\left[MSE{\left({X}^{\prime}X\right)}^{-1}\right]}.$$

`CovRatio`

is an *n*-by-1
vector in the `Diagnostics`

table of the fitted
`LinearModel`

object. Each element is the ratio of the
generalized variance of the estimated coefficients when the corresponding
element is deleted to the generalized variance of the coefficients using all the
data.

#### How To

After obtaining a fitted model, say, `mdl`

, using
`fitlm`

or `stepwiselm`

, you can:

Display the

`CovRatio`

by indexing into the property using dot notationmdl.Diagnostics.CovRatio

Plot the delete-1 change in covariance using

For details, see theplotDiagnostics(mdl,'CovRatio')

`plotDiagnostics`

method of the`LinearModel`

class.

#### Determine Influential Observations Using `CovRatio`

This example shows how to use the `CovRatio`

statistics to determine the influential points in data. Load the sample data and define the response and predictor variables.

```
load hospital
y = hospital.BloodPressure(:,1);
X = double(hospital(:,2:5));
```

Fit a linear regression model.

mdl = fitlm(X,y);

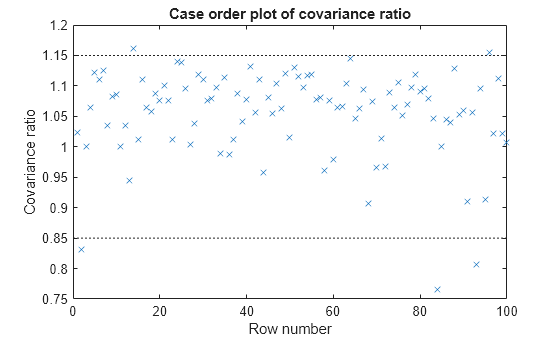

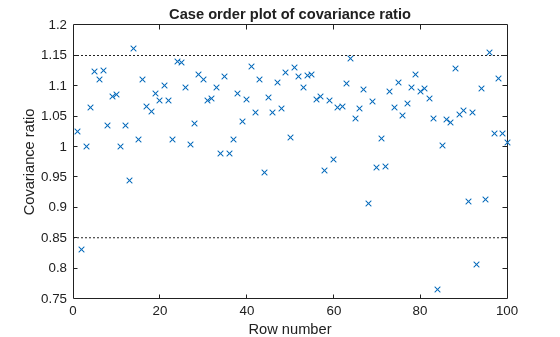

Plot the `CovRatio`

statistics.

`plotDiagnostics(mdl,'CovRatio')`

For this example, the threshold limits are 1 + 3*5/100 = 1.15 and 1 - 3*5/100 = 0.85. There are a few points beyond the limits, which might be influential points.

Find the observations that are beyond the limits.

find((mdl.Diagnostics.CovRatio)>1.15|(mdl.Diagnostics.CovRatio)<0.85)

`ans = `*5×1*
2
14
84
93
96

### Delete-1 Scaled Difference in Coefficient Estimates (`Dfbetas`

)

#### Purpose

The sign of a delete-1 scaled difference in coefficient estimate
(`Dfbetas`

) for coefficient *j* and
observation *i* indicates whether that observation causes an
increase or decrease in the estimate of the regression coefficient. The absolute
value of a `Dfbetas`

indicates the magnitude of the difference
relative to the estimated standard deviation of the regression coefficient. A
`Dfbetas`

value larger than 3/sqrt(*n*) in
absolute value indicates that the observation has a large influence on the
corresponding coefficient.

#### Definition

`Dfbetas`

for coefficient *j* and
observation *i* is the ratio of the difference in the estimate
of coefficient *j* using all observations and the one obtained
by removing observation *i*, and the standard error of the
coefficient estimate obtained by removing observation *i*. The
`Dfbetas`

for coefficient *j* and
observation *i* is

$$Dfbeta{s}_{ij}=\frac{{b}_{j}-{b}_{j\left(i\right)}}{\sqrt{MS{E}_{\left(i\right)}}\left(1-{h}_{ii}\right)},$$

where
*b*_{j} is the
estimate for coefficient *j*,
*b*_{j(i)}
is the estimate for coefficient *j* by removing observation
*i*,
*MSE*_{(i)} is the
mean squared error of the regression fit by removing observation
*i*, and
*h*_{ii} is the
leverage value for observation *i*. `Dfbetas`

is an *n*-by-*p* matrix in the
`Diagnostics`

table of the fitted
`LinearModel`

object. Each cell of
`Dfbetas`

corresponds to the `Dfbetas`

value for the corresponding coefficient obtained by removing the corresponding
observation.

#### How To

After obtaining a fitted model, say, `mdl`

, using
`fitlm`

or `stepwiselm`

, you can obtain
the `Dfbetas`

values as an
*n*-by-*p* matrix by indexing into the
property using dot
notation,

mdl.Diagnostics.Dfbetas

#### Determine Observations Influential on Coefficients Using `Dfbetas`

This example shows how to determine the observations that have large influence on coefficients using `Dfbetas`

. Load the sample data and define the response and independent variables.

```
load hospital
y = hospital.BloodPressure(:,1);
X = double(hospital(:,2:5));
```

Fit a linear regression model.

mdl = fitlm(X,y);

Find the `Dfbetas`

values that are high in absolute value.

[row,col] = find(abs(mdl.Diagnostics.Dfbetas)>3/sqrt(100)); disp([row col])

2 1 28 1 84 1 93 1 2 2 13 3 84 3 2 4 84 4

### Delete-1 Scaled Change in Fitted Values (`Dffits`

)

#### Purpose

The delete-1 scaled change in fitted values (`Dffits`

) show
the influence of each observation on the fitted response values.
`Dffits`

values with an absolute value larger than
2*sqrt(*p*/*n*) might be influential.

#### Definition

`Dffits`

for observation *i* is

$${\text{Dffits}}_{i}=s{r}_{i}\sqrt{\frac{{h}_{ii}}{1-{h}_{ii}}},$$

where *sr*_{i
}is the studentized residual, and
*h*_{ii} is the
leverage value of the fitted `LinearModel`

object.
`Dffits`

is an *n*-by-1 column vector in
the `Diagnostics`

table of the fitted
`LinearModel`

object. Each element in
`Dffits`

is the change in the fitted value caused by
deleting the corresponding observation and scaling by the standard error.

#### How To

After obtaining a fitted model, say, `mdl`

, using
`fitlm`

or `stepwiselm`

, you can:

Display the

`Dffits`

values by indexing into the property using dot notationmdl.Diagnostics.Dffits

Plot the delete-1 scaled change in fitted values using

For details, see theplotDiagnostics(mdl,'Dffits')

`plotDiagnostics`

method of the`LinearModel`

class for details.

#### Determine Observations Influential on Fitted Response Using `Dffits`

This example shows how to determine the observations that are influential on the fitted response values using `Dffits`

values. Load the sample data and define the response and independent variables.

```
load hospital
y = hospital.BloodPressure(:,1);
X = double(hospital(:,2:5));
```

Fit a linear regression model.

mdl = fitlm(X,y);

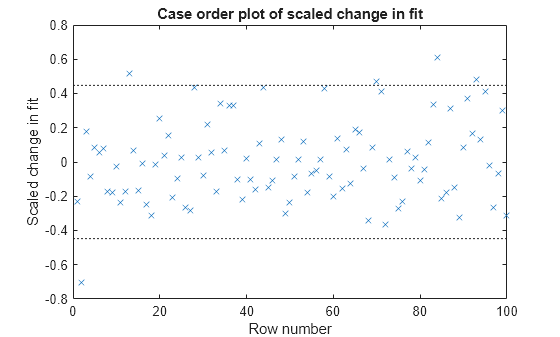

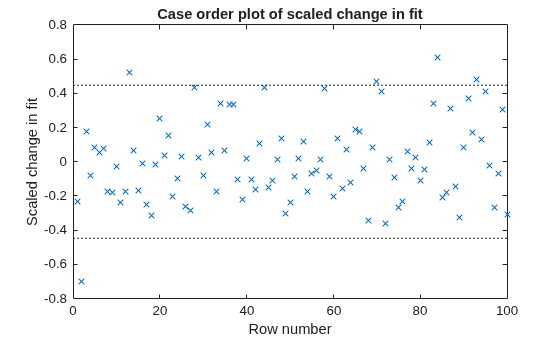

Plot the `Dffits`

values.

`plotDiagnostics(mdl,'Dffits')`

The influential threshold limit for the absolute value of `Dffits`

in this example is 2*sqrt(5/100) = 0.45. Again, there are some observations with `Dffits`

values beyond the recommended limits.

Find the `Dffits`

values that are large in absolute value.

find(abs(mdl.Diagnostics.Dffits)>2*sqrt(4/100))

`ans = `*10×1*
2
13
28
44
58
70
71
84
93
95

### Delete-1 Variance (`S2_i`

)

#### Purpose

The delete-1 variance (`S2_i`

) shows how the mean squared
error changes when an observation is removed from the data set. You can compare
the `S2_i`

values with the value of the mean squared
error.

#### Definition

`S2_i`

is a set of residual variance estimates obtained by
deleting each observation in turn. The `S2_i`

value for
observation *i* is

$$S2\_i=MS{E}_{\left(i\right)}=\frac{{\displaystyle \sum _{j\ne i}^{n}{\left[{y}_{j}-{\widehat{y}}_{j\left(i\right)}\right]}^{2}}}{n-p-1},$$

where
*y*_{j} is the
*j*th observed response value. `S2_i`

is
an *n*-by-1 vector in the `Diagnostics`

table
of the fitted `LinearModel`

object. Each element in
`S2_i`

is the mean squared error of the regression obtained
by deleting that observation.

#### How To

After obtaining a fitted model, say, `mdl`

, using
`fitlm`

or `stepwiselm`

, you can:

Display the

`S2_i`

vector by indexing into the property using dot notationmdl.Diagnostics.S2_i

Plot the delete-1 variance values using

For details, see theplotDiagnostics(mdl,'S2_i')

`plotDiagnostics`

method of the`LinearModel`

class.

#### Compute and Examine Delete-1 Variance Values

This example shows how to compute and plot S2_i values to examine the change in the mean squared error when an observation is removed from the data. Load the sample data and define the response and independent variables.

```
load hospital
y = hospital.BloodPressure(:,1);
X = double(hospital(:,2:5));
```

Fit a linear regression model.

mdl = fitlm(X,y);

Display the MSE value for the model.

mdl.MSE

ans = 23.1140

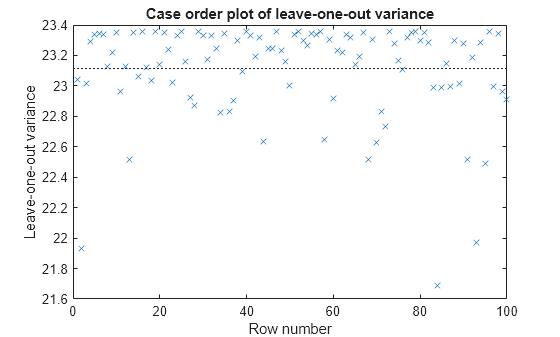

Plot the S2_i values.

`plotDiagnostics(mdl,'S2_i')`

This plot makes it easy to compare the S2_i values to the MSE value of 23.114, indicated by the horizontal dashed lines. You can see how deleting one observation changes the error variance.

## See Also

`LinearModel`

| `fitlm`

| `stepwiselm`

| `plotDiagnostics`

| `plotResiduals`
