This example shows how to use a copula and rank correlation to generate correlated data from probability distributions that do not have an inverse cdf function available, such as the Pearson flexible distribution family.

Generate 1000 random numbers from two different Pearson distributions, using the `pearsrnd`

function. The first distribution has the parameter values mu equal to 0, sigma equal to 1, skew equal to 1, and kurtosis equal to 4. The second distribution has the parameter values mu equal to 0, sigma equal to 1, skew equal to 0.75, and kurtosis equal to 3.

rng default % For reproducibility p1 = pearsrnd(0,1,-1,4,1000,1); p2 = pearsrnd(0,1,0.75,3,1000,1);

At this stage, `p1`

and `p2`

are independent samples from their respective Pearson distributions, and are uncorrelated.

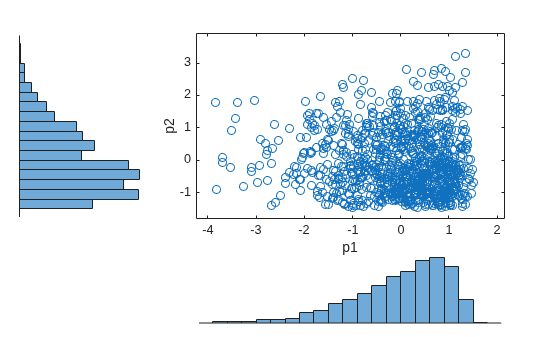

Create a `scatterhist`

plot to visualize the Pearson random numbers.

figure scatterhist(p1,p2)

The histograms show the marginal distributions for `p1`

and `p2`

. The scatterplot shows the joint distribution for `p1`

and `p2`

. The lack of pattern to the scatterplot shows that `p1`

and `p2`

are independent.

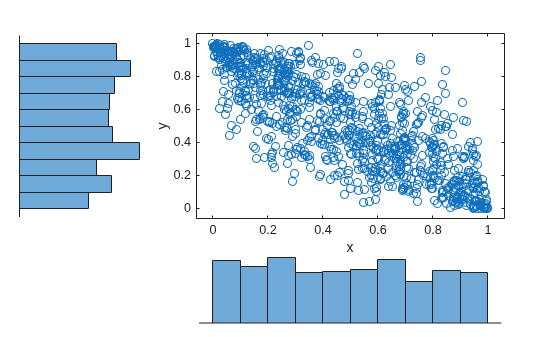

Use `copularnd`

to generate 1000 correlated random numbers with a correlation coefficient equal to –0.8, using a Gaussian copula. Create a `scatterhist`

plot to visualize the random numbers generated from the copula.

```
u = copularnd('Gaussian',-0.8,1000);
figure
scatterhist(u(:,1),u(:,2))
```

The histograms show that the data in each column of the copula have a marginal uniform distribution. The scatterplot shows that the data in the two columns are negatively correlated.

Using Spearman's rank correlation, transform the two independent Pearson samples into correlated data.

Use the `sort`

function to sort the copula random numbers from smallest to largest, and to return a vector of indices describing the rearranged order of the numbers.

[s1,i1] = sort(u(:,1)); [s2,i2] = sort(u(:,2));

`s1`

and `s2`

contain the numbers from the first and second columns of the copula, `u`

, sorted in order from smallest to largest. `i1`

and `i2`

are index vectors that describe the rearranged order of the elements into `s1`

and `s2`

. For example, if the first value in the sorted vector `s1`

is the third value in the original unsorted vector, then the first value in the index vector `i1`

is 3.

Create two vectors of zeros, `x1`

and `x2`

, that are the same size as the sorted copula vectors, `s1`

and `s2`

. Sort the values in `p1`

and `p2`

from smallest to largest. Place the values into `x1`

and `x2`

, in the same order as the indices `i1`

and `i2`

generated by sorting the copula random numbers.

x1 = zeros(size(s1)); x2 = zeros(size(s2)); x1(i1) = sort(p1); x2(i2) = sort(p2);

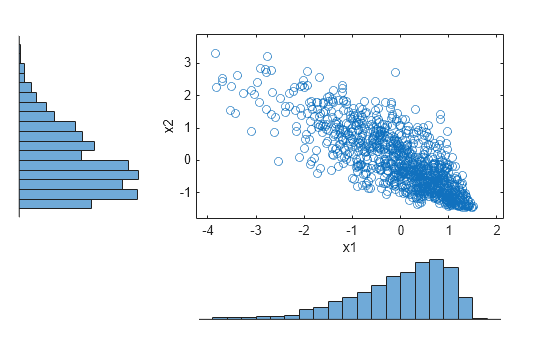

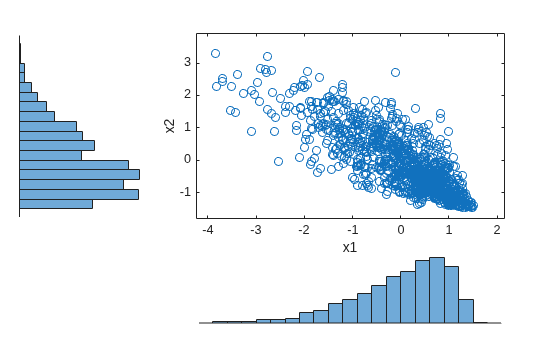

Create a `scatterhist`

plot to visualize the correlated Pearson data.

figure scatterhist(x1,x2)

The histograms show the marginal Pearson distributions for each column of data. The scatterplot shows the joint distribution of `p1`

and `p2`

, and indicates that the data are now negatively correlated.

Confirm that the Spearman rank correlation coefficient is the same for the copula random numbers and the correlated Pearson random numbers.

copula_corr = corr(u,'Type','spearman')

`copula_corr = `*2×2*
1.0000 -0.7858
-0.7858 1.0000

pearson_corr = corr([x1,x2],'Type','spearman')

`pearson_corr = `*2×2*
1.0000 -0.7858
-0.7858 1.0000

The Spearman rank correlation is the same for the copula and the Pearson random numbers.
