Rayleigh Distribution

Definition

The Rayleigh pdf is

y=f(x|b)=xb2e(x22b2)

Background

The Rayleigh distribution is a special case of the Weibull distribution. If A and B are the parameters of the Weibull distribution, then the Rayleigh distribution with parameter b is equivalent to the Weibull distribution with parametersA=2b and B = 2.

If the component velocities of a particle in the x and y directions are two independent normal random variables with zero means and equal variances, then the distance the particle travels per unit time is distributed Rayleigh.

In communications theory, Nakagami distributions, Rician distributions, and Rayleigh distributions are used to model scattered signals that reach a receiver by multiple paths. Depending on the density of the scatter, the signal will display different fading characteristics. Rayleigh and Nakagami distributions are used to model dense scatters, while Rician distributions model fading with a stronger line-of-sight. Nakagami distributions can be reduced to Rayleigh distributions, but give more control over the extent of the fading.

Parameters

The raylfit function returns the MLE of the Rayleigh parameter. This estimate is

b=12ni=1nxi2

Examples

Compute and Plot Rayleigh Distribution pdf

Compute the pdf of a Rayleigh distribution with parameter B = 0.5.

x = [0:0.01:2];
p = raylpdf(x,0.5);

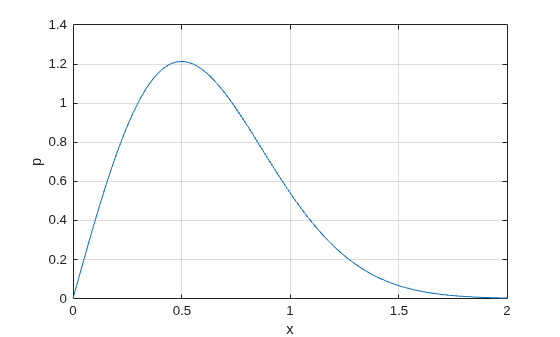

Plot the pdf.

figure;
plot(x,p)

Figure contains an axes object. The axes object contains an object of type line.
